Main Features

• No need to run those expensive long cables, just use this wireless bridge to connect not just one but two of your existing wired networks to enjoy Wi-Fi
• With IEEE 802.11ac standard and up to 450 Mbit/s data transfer rates, this wireless bridge enables efficient network performance
• Gigabit Ethernet port for ultra-fast wired network speeds

Marketing Information

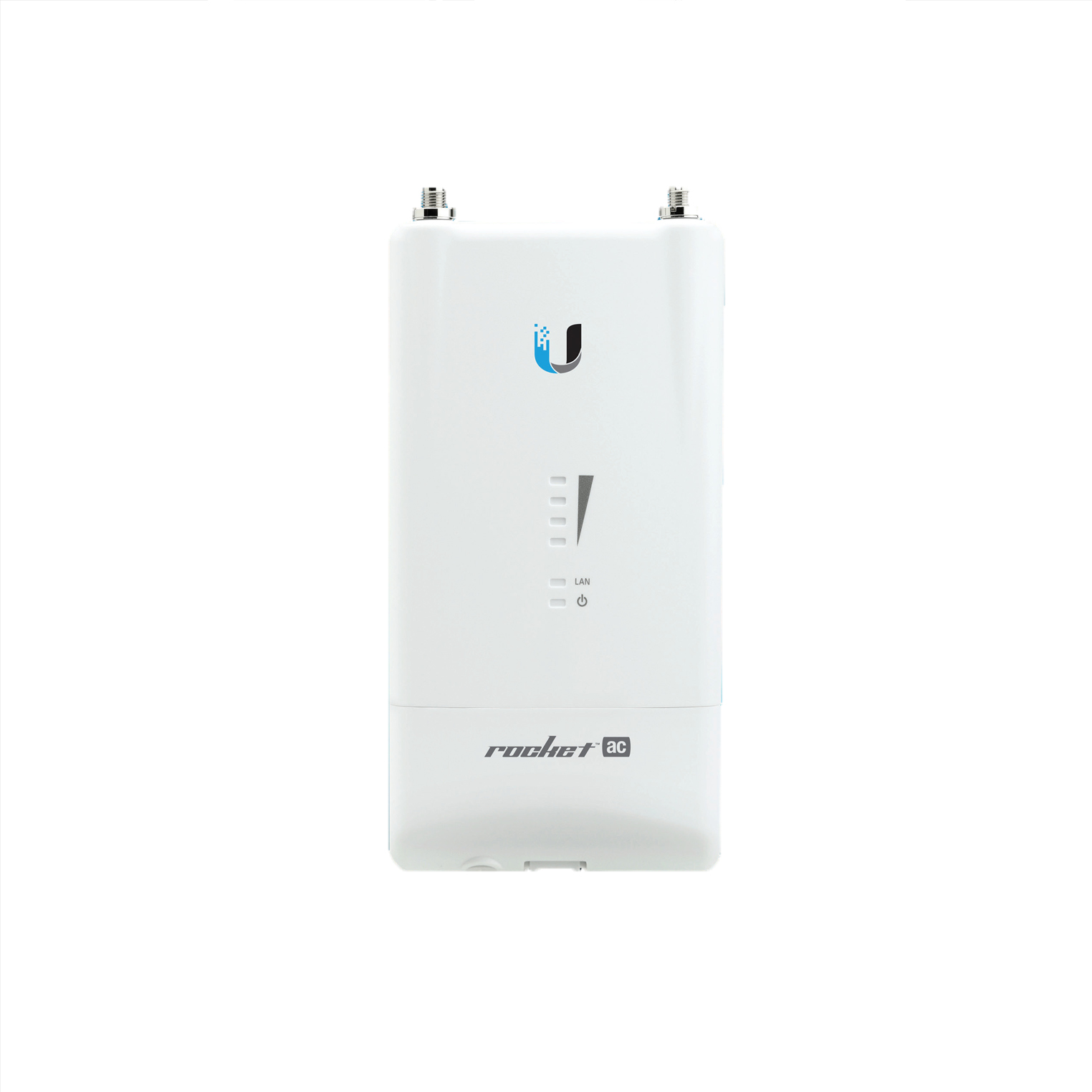

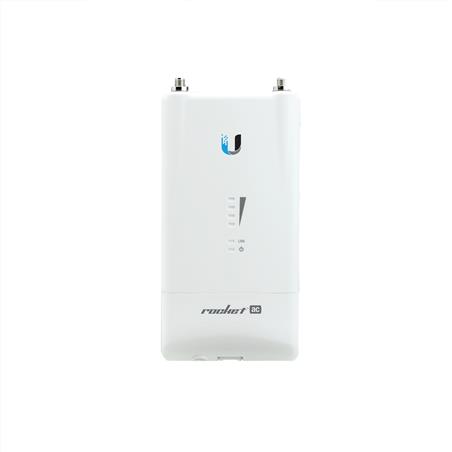

Ubiquiti Networks has designed the first airMAX® ac radios for high performance and ease of installation. You have the freedom to deploy the Rocket® ac anywhere in the world, and it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).

Pair the Rocket5ac Lite with airMAX ac antennas for optimal performance:

• PtP backhaul Rocket5ac Lite with the RocketDish™ ac
• PtMP links Rocket5ac Lite with the airMAX ac Sector

Software airOS®

airOS® 8 is the revolutionary operating system for Ubiquiti® airMAX ac products.

Powerful Wireless Features

• Access Point PtMP airMAX Mixed Mode
• airMAX ac Protocol Support
• Long-Range Point-to-Point (PtP) Link Mode
• Selectable Channel Width: PtP: 10/20/30/40/50/60/80 MHz - PtMP: 10/20/30/40 MHz
• Automatic Channel Selection
• Transmit Power Control: Automatic/Manual
• Automatic Distance Selection (ACK Timing)
• Strongest WPA2 Security

Usability Enhancements

• airMagic® Channel Selection Tool
• Redesigned User Interface
• Dynamic Configuration Changes
• Instant Input Validation
• HTML5 Technology
• Optimization for Mobile Devices
• Detailed Device Statistics
• Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView® Spectrum Analyzer

Advanced RF Analytics

• airMAX ac devices feature a multi -radio architecture to power a revolutionary RF analytics engine.
• An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 5 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry.
• Data from the spectrum analysis and RF performance monitoring is displayed on the Main tab and airView Spectrum Analyzer.

Real-Time Reporting

airOS 8 displays the following RF information:

• Persistent RF Error Vector Magnitude (EVM) constellation diagrams
• Signal, Noise, and Interference (SNI) diagrams
• Carrier to Interference-plus-Noise Ratio (CINR) histograms

Spectral Analysis

airView allows you to identify noise signatures and plan your networks to minimize noise interference. airView performs the following functions:

• Constantly monitors environmental noise
• Collects energy data points in real -time spectral views
• Helps optimize channel selection, network design, and wireless performance

airView runs in the background without disabling the wireless link, so there is no disruption to the network.

In airView, there are three spectral views, each of which represents different data.

• Waterfall Aggregate energy collected for each frequency
• Waveform Aggregate energy collected
• Ambient Noise Level Background noise energy shown as a function of frequency

airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys.
