The MPG X870I EDGE TI EVO WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
- Form Factor: ITX
- Socket Type: AM5
- Chipset: AMD X870
Proudly Canadian-Owned

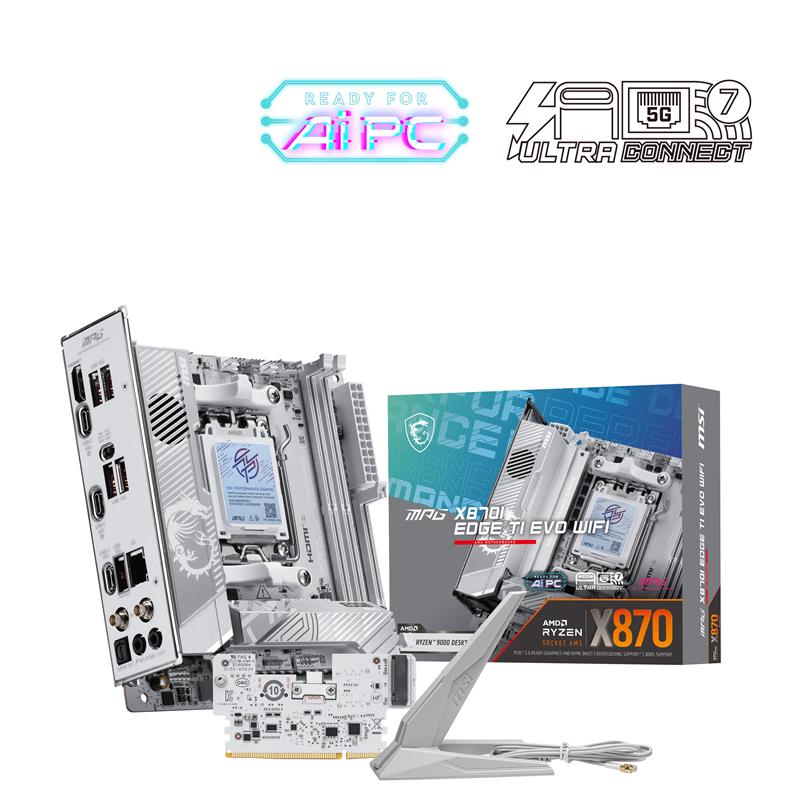

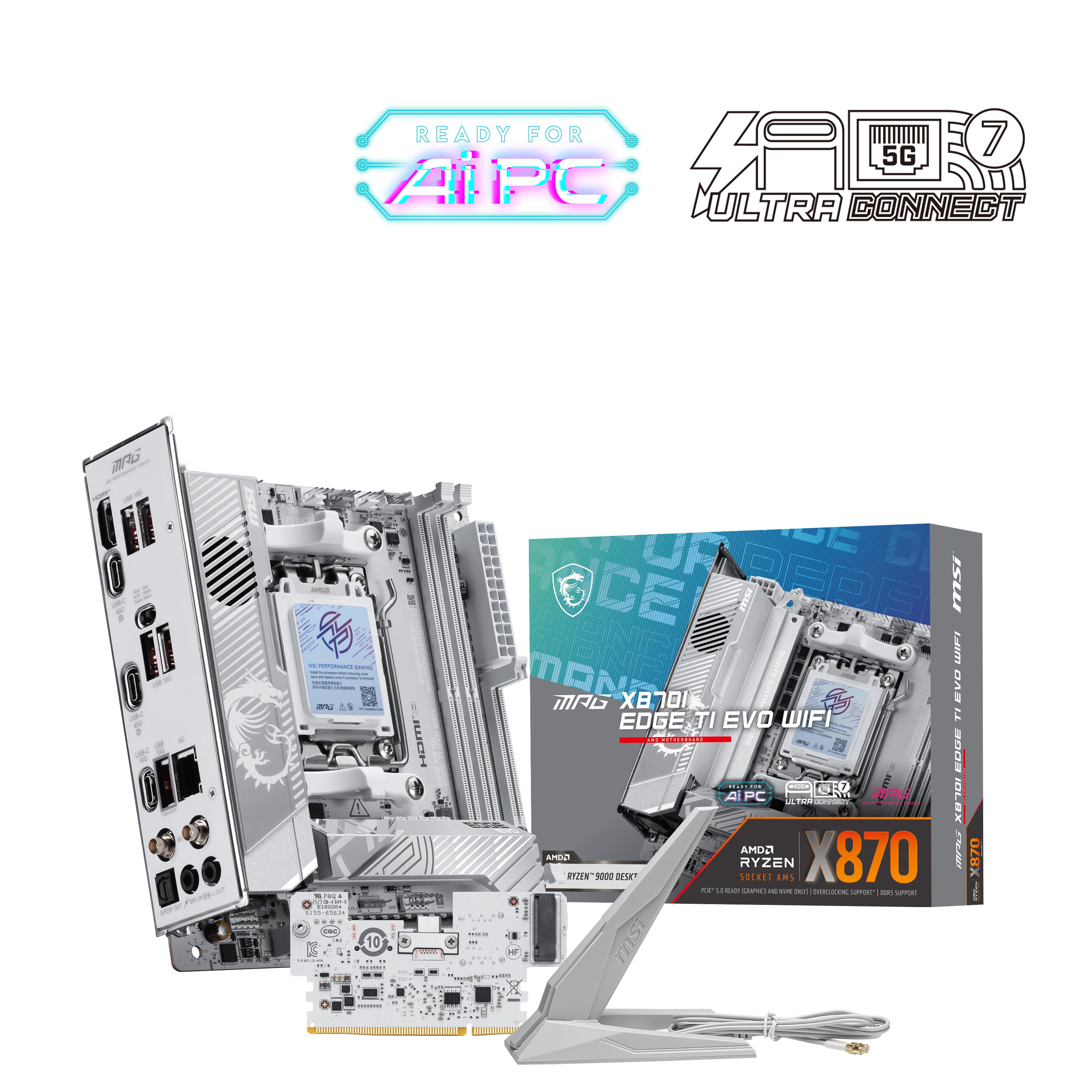

MSI MPG X870I EDGE TI EVO WIFI AMD AMD X870 AM5 DDR5 1x M.2 Motherboard
$599.99
Model:
MPG X870I EDGE TI EVO WIFI
MEG X870E GODLIKE
MEG X870E ACE MAX
MPG X870E CARBON WIFI
MPG X870E EDGE TI WIFI
MPG X870I EDGE TI EVO WIFI
MAG X870E TOMAHAWK WIFI
MAG X870 TOMAHAWK WIFI
X870E GAMING PLUS WIFI
X870 GAMING PLUS WIFI
PRO X870E-P WIFI
PRO X870-P WIFI
-
2 Year$78.00
-
3 Year$96.00
Availability
Delivery
Sold out online
Sold Out at All Locations
For Quebec
residents: Please refer to the Availability Guarantee disclosure in the Warranty and Return section
below.
Strong Performance, Sleek Design
The MPG X870I EDGE TI EVO WIFI is a gaming oriented ITX motherboard with a 8 Duet Rail Power System, constructed around the latest AMD X870 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7, DDR5 and premium Frozr design that delivers both performance and style.
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Ultra Power - 8 Duet Rail Power System with 110A Smart Power Stage
With exclusive Core Boost technology and EZ OC Tuning functions, the MPG X870I EDGE TI EVO WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
- Digital PWM IC
- 8 Duet Rail Power System (110A / SPS)
- 2 Phase SOC Power
- 1 Phase MISC Power
Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Heatsink: The fan design enhances cooling efficiency, resulting in improved performance.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
2 x DDR5 Dual Channel (10000+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 10000+ MT/s, supports AMD EXPO. *Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor*)
*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connector
The MPG X870I EDGE TI EVO WIFI motherboard features MSI's M.2 slots:
- 1 x Gen5 x4 128Gbps slot (with EZ M.2 Shield Frozr II)
- 2 x Gen4 x4 64Gbps slots (1 via 5-in-1 XPANDER card, supports single sided SSD)
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
EZ Conn Design: Allows users to easily connect MSI EZ series fans or MSI MPG P-series liquid cooling.
Ultra Connect
5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
USB4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 4K@60Hz display support.
