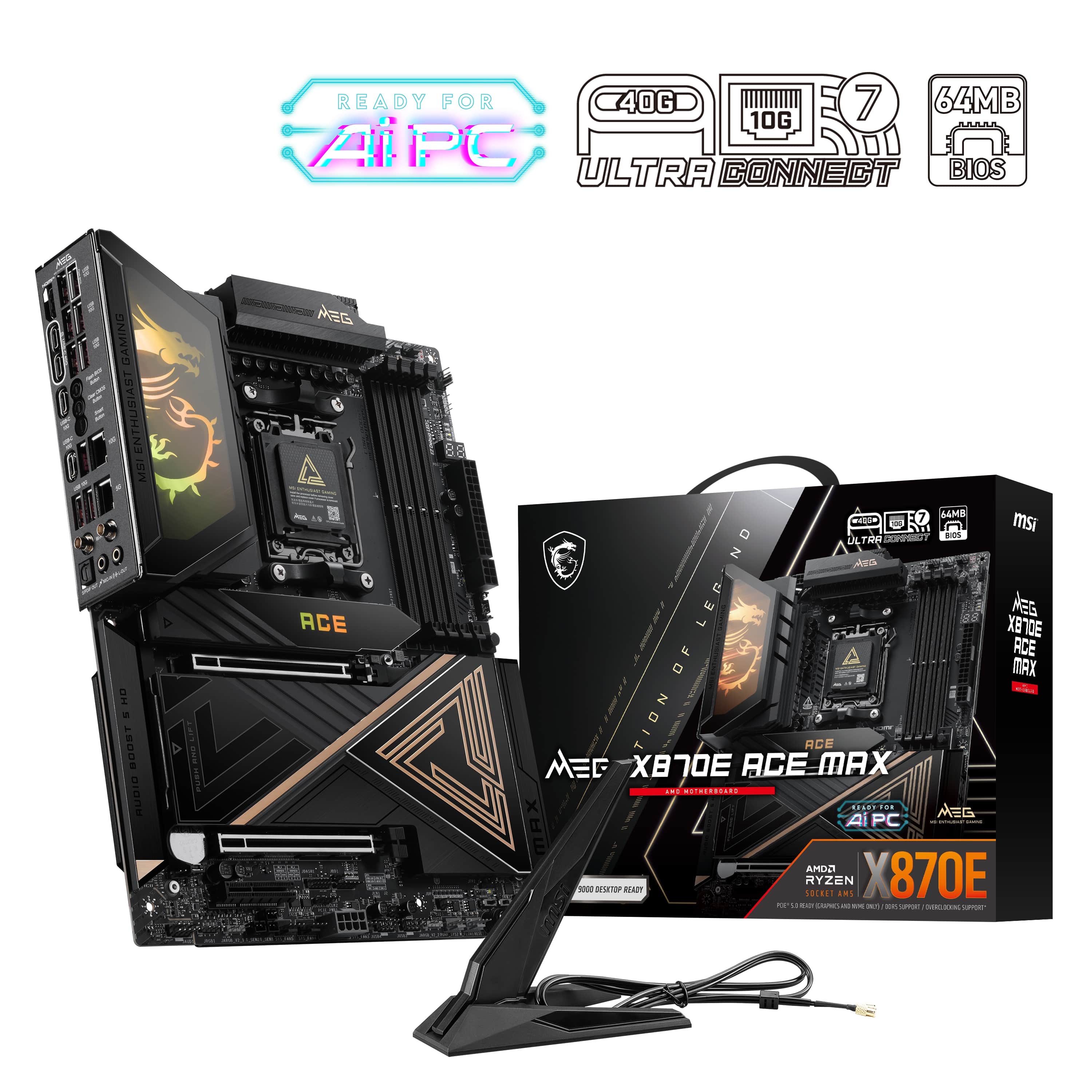

The MEG X870E ACE MAX is a gaming oriented ATX motherboard featuring premium aesthetics with a sleek black metal nameplate and polished gold accents. Constructed with the latest AMD X870E chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring 18 DRPS CPU power, 10G + 5G LAN, Wi-Fi 7, USB 4, PCIe 5.0, DDR5, premium Frozr and EZ DIY design that delivers superb AI and gaming performance.
The MEG X870E ACE MAX motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors with a larger 64MB BIOS ROM capacity for ultimate compatibility.
Form Factor: ATX
Socket Type: AM5
Chipset: AMD X870E
With exclusive Core Boost technology and EZ OC Tuning functions, the MEG X870E ACE MAX is able to sustain heavy CPU power loads to support system-demanding game settings:
Frozr Guard: Wavy Fin design, Direct-touch Cross Heat-pipe, 9W/mK MOSFET thermal pads, extra choke thermal pads, Double-sided M.2 Shield Frozr, and a 8-layer server-grade PCB with 2oz of thickened copper for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles: in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 9000+ MT/s, supports AMD EXPO.
**Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor.
1 x PCIe 5.0/4.0/3.0 x16 slots* (with Steel Armor II** and EZ PCIe Release)
1 x PCIe 5.0/4.0/3.0 x8 slots*
1 x PCIe 5.0/4.0/3.0 x4 slot*
*Supports x16/x0/x4, x8/x8/x4
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
The MEG X870E ACE MAX motherboard features MSI's M.2 slots:
2 x Gen5 x4 128Gbps slots (with double-sided M.2 Shield Frozr)
3 x Gen4 x4 64Gbps slots (with double-sided M.2 Shield Frozr)
The DIY Friendly designs optimize the assemble process and experience.
EZ Magnetic M.2 Shield Frozr II: MSI patented magnetic Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
Smart Button: By simply pressing the Smart Button, users can reset the system or turn Mystic Light on/off without entering the BIOS.
10G Super LAN: Premium Marvell 10Gbps LAN & Realtek 5Gbps LAN deliver an utmost network gaming experience.
Wi-Fi 7: Features the full-speed Wi-Fi 7 (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
USB4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 4K@120Hz display support*.
HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 HD & S/PDIF output.
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
