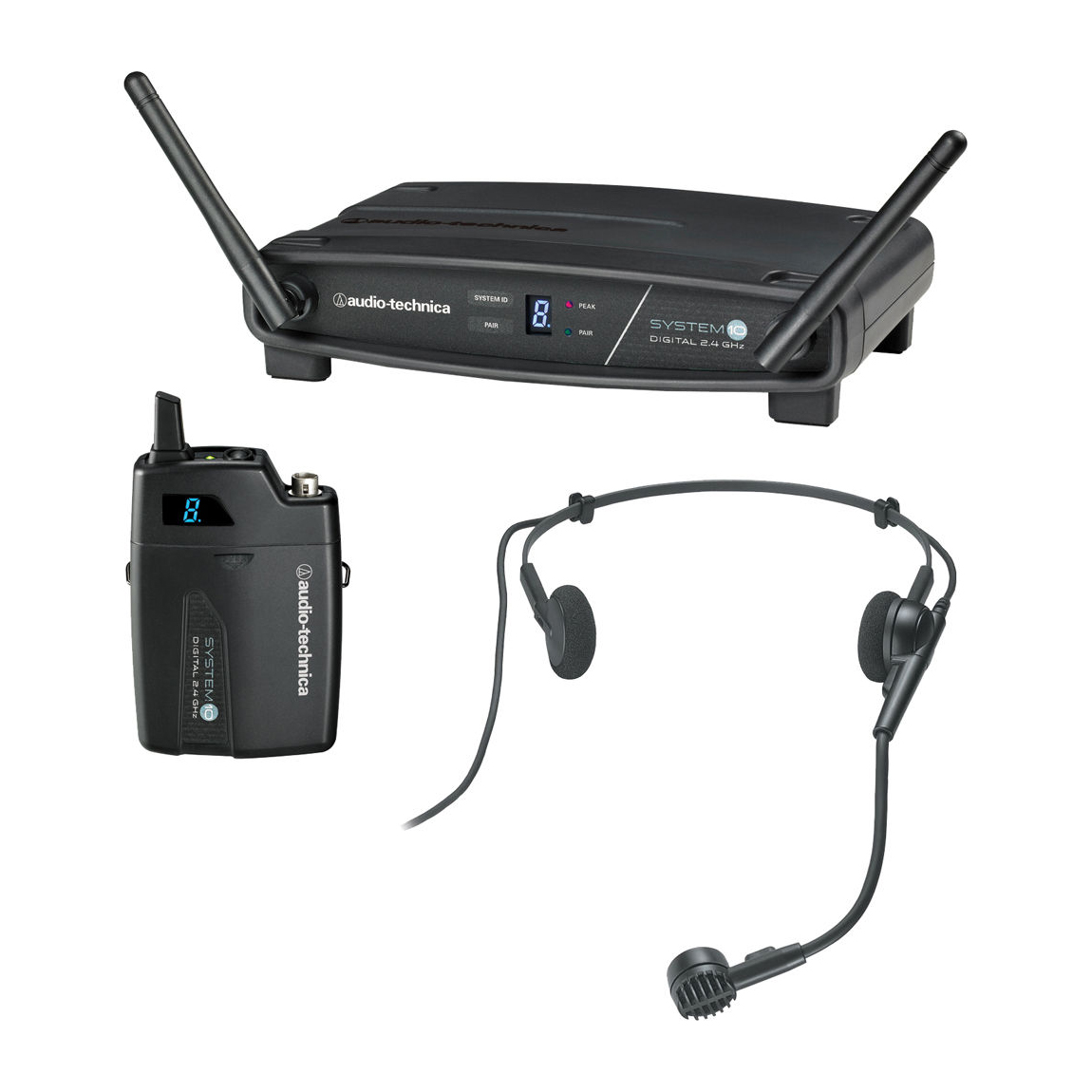

AUDIO TECHNICA ATW-1101/H System 10 Digital Wireless Headworn Dynamic Microphone Set

Name: AUDIO TECHNICA ATW-1101/H System 10 Digital Wireless Headworn Dynamic Microphone Set
Brand: AUDIO TECHNICA
SKU: PAAUH00259
Price: 549 CAD
Availability: SoldOut

AUDIO TECHNICA

Part #: ATW-1101/H

Item Code: PAAUH00259

AUDIO TECHNICA ATW-1101/H System 10 Digital Wireless Headworn Dynamic Microphone Set

15-day Low Price Guarantee

$549.00

Qty:

Tech Care Replace Protection See Benefits

Tech Care Replace Protection

See Benefits

2 Year

$82.35
3 Year

$93.33

Availability

CUSTOM ORDER

AVAILABLE TO ORDER

Returns are only accepted for defective items; all other sales are final.
Delivery times may vary. You will be notified once your order is ready to ship.
Custom order products cannot be canceled once the order is placed.

Marketing Information

Because System 10 packaging is designed to hold all versions of the system, some compartments in the carton may be intentionally left empty.

The ATW-R1100 receiver includes a switching power supply that automatically adapts to changes in mains voltage.

The versatile ATW-T1001 UniPak ® body-pack transmitter has both a high-impedance input for instruments, and a low-impedance input with bias connection for use with dynamic and electret condenser microphones. The ATW-T1002 handheld transmitter features a unidirectional dynamic microphone element.

Both the body-pack and handheld transmitters use internal AA batteries and have Power/Mute switches and input Trim (level) adjustments.

Defective Exchange Period	30 Days
Manufacturer Warranty	1 Year

Defective Exchange Period	30 Days
Manufacturer Warranty	1 Year

Battery Life	>7 hours (alkaline)
Cable Length	55" (1.4 m)
Dimensions	4.72" (120.0 mm), headset, nominal at widest point 3.17" (80.5 mm), flexible boom 0.80" (20.4 mm), microphone diameter
Frequency Response	200 Hz - 18 kHz
Impedance	600 ohms
Polar Pattern	Hypercardioid
Power Supply	100-240V AC (50/60 Hz) to 12V DC 0.5A, center positive, switched mode external power supply
Weight	2.1 oz (60 g)
Receiving System	Diversity (frequency/time/space)
RF Output Power	10 mW
Spurious Emission	Following federal and national regulations
Total Harmonic Distortion
Input Connections	1x 4-pin locking connector <br/>Wiring: <br/>Pin 1: GND <br/>Pin 2: INST INPUT <br/>Pin 3: MIC INPUT <br/>Pin 4: DC BIAS +9V
Maximum Output Level	Balanced: 0 dBV <br/>Unbalanced: +6 dBV
Open Circuit Sensitivity	-55 dB (1.7 mV) re 1V at 1 Pa
Operating Frequencies	2.4 GHz ISM band
Operating Range	30 m (100') typical
Operating Temperature Range	0 to 40° C (32 to 104° F)
Output Connections	1x XLR, balanced <br/>1x 1/4" (6.3 mm), unbalanced
Dynamic Range	>109 dB (A-weighted), typical
Element	Dynamic
Connector	Locking 4-Pin HRS connector
Audio Sampling	24 bit, 48 kHz
Batteries	2x 1.5V AA (not included)

Battery Life	>7 hours (alkaline)
Cable Length	55" (1.4 m)
Dimensions	4.72" (120.0 mm), headset, nominal at widest point 3.17" (80.5 mm), flexible boom 0.80" (20.4 mm), microphone diameter
Frequency Response	200 Hz - 18 kHz
Impedance	600 ohms
Polar Pattern	Hypercardioid
Power Supply	100-240V AC (50/60 Hz) to 12V DC 0.5A, center positive, switched mode external power supply
Weight	2.1 oz (60 g)
Receiving System	Diversity (frequency/time/space)
RF Output Power	10 mW
Spurious Emission	Following federal and national regulations
Total Harmonic Distortion
Input Connections	1x 4-pin locking connector <br/>Wiring: <br/>Pin 1: GND <br/>Pin 2: INST INPUT <br/>Pin 3: MIC INPUT <br/>Pin 4: DC BIAS +9V
Maximum Output Level	Balanced: 0 dBV <br/>Unbalanced: +6 dBV
Open Circuit Sensitivity	-55 dB (1.7 mV) re 1V at 1 Pa
Operating Frequencies	2.4 GHz ISM band
Operating Range	30 m (100') typical
Operating Temperature Range	0 to 40° C (32 to 104° F)
Output Connections	1x XLR, balanced <br/>1x 1/4" (6.3 mm), unbalanced
Dynamic Range	>109 dB (A-weighted), typical
Element	Dynamic
Connector	Locking 4-Pin HRS connector
Audio Sampling	24 bit, 48 kHz
Batteries	2x 1.5V AA (not included)
