The MPG Z890 CARBON WIFI motherboard supports Intel Core Ultra Processors (Series 2).
- Form Factor: ATX
- Socket Type: LGA 1851
- Chipset: Intel Z890
Proudly Canadian-Owned

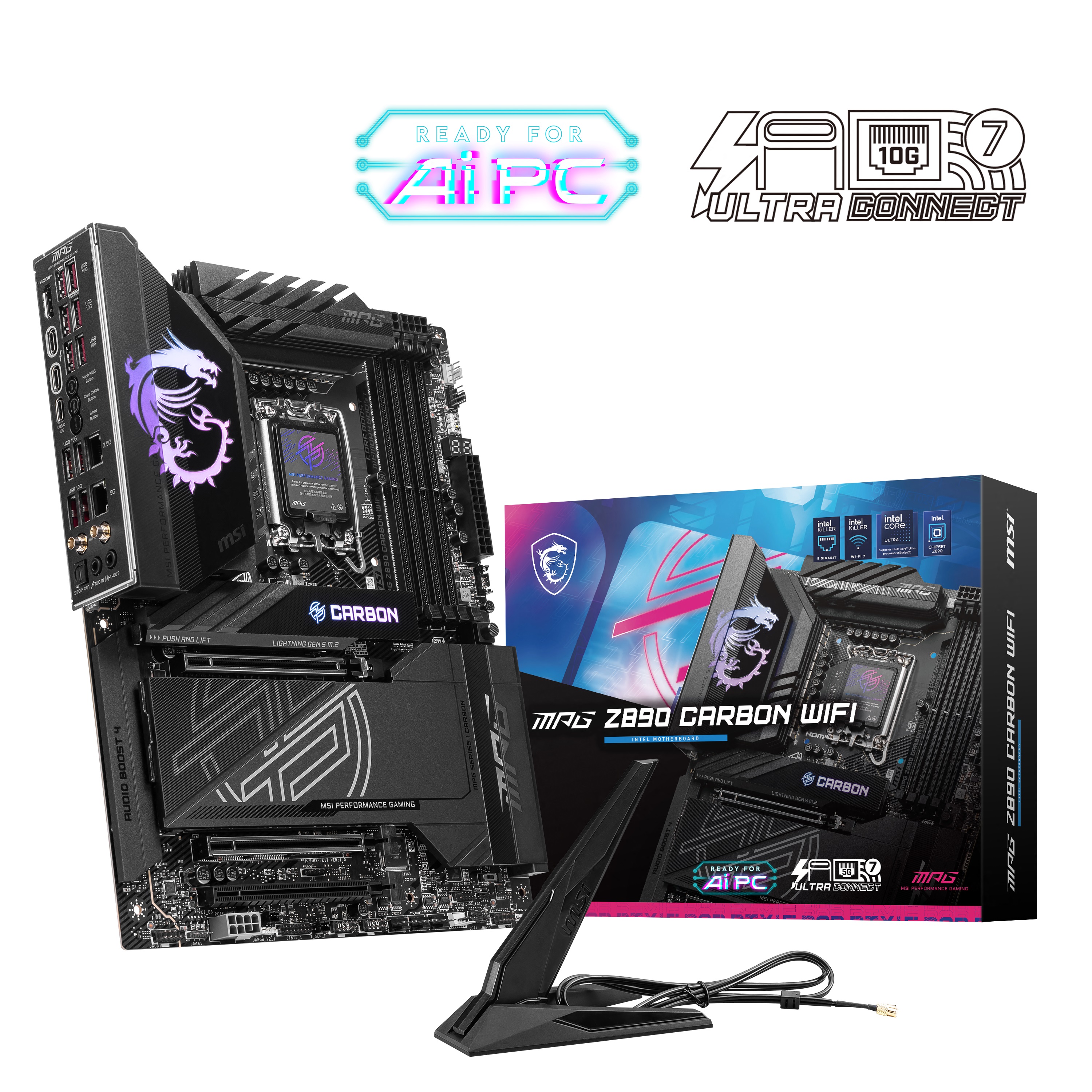

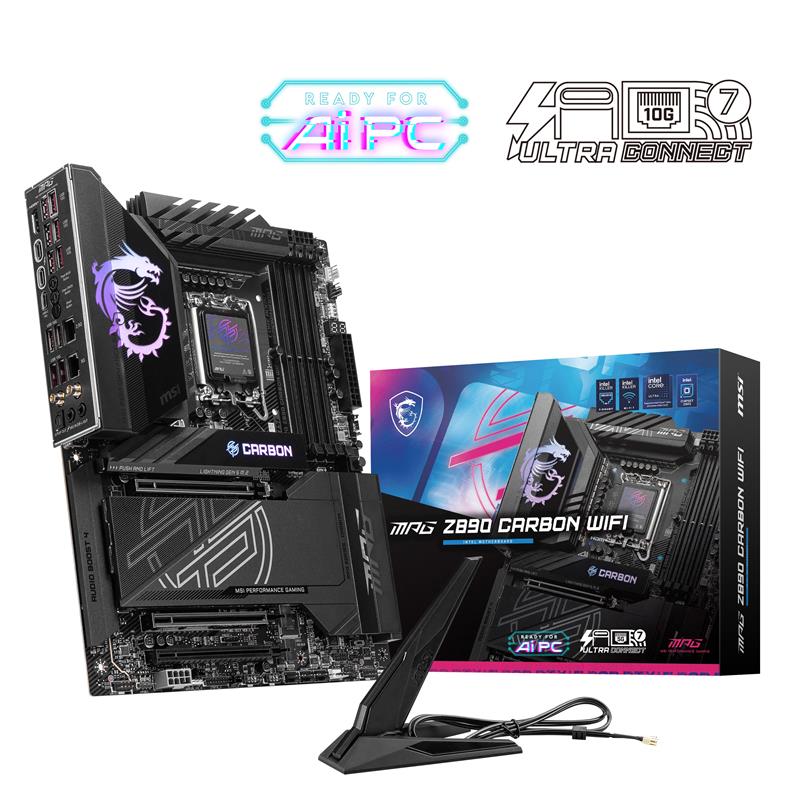

MSI MPG Z890 CARBON WIFI , Intel Z890 ATX LGA 1851, Supports Intel® Core™ Ultra Processors (Series 2), 4 Dimm DDR5, PCIE 5.0, M.2 x 5, USB up to 40Gbps Thunderbolt 4 Type-C, WIFI 7
$749.99
Free Shipping
Model:
MPG Z890 CARBON WIFI
MEG Z890 GODLIKE
MEG Z890 UNIFY-X
MEG Z890 ACE
MPG Z890 CARBON WIFI
MPG Z890 EDGE TI WIFI
MPG Z890I EDGE TI WIFI
MAG Z890 TOMAHAWK WIFI
MAG Z890 TOMAHAWK WIFI II
PRO Z890-A WIFI
Z890 GAMING PLUS WIFI
Z890 GAMING PLUS WIFI6E
PRO Z890-P WIFI
PRO Z890-S WIFI
PRO Z890-S WIFI PZ
Gift Code Redemption
Unlock one game with purchase of a qualifying Intel® Z890 or B860 chipset motherboard.(Dying Light: The Beast / HITMAN 3 / Civilization® VII)
Value: $90
-
2 Year$97.50
-
3 Year$120.00
Availability
Delivery
Sold out online
Sold Out at All Locations
For Quebec
residents: Please refer to the Availability Guarantee disclosure in the Warranty and Return section
below.
Perform in Style
The MPG Z890 CARBON WIFI is a gaming oriented ATX motherboard with Direct 20 phases CPU power, constructed around the latest Intel Z890 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, 5G LAN, Thunderbolt 4, Wi-Fi 7, DDR5 and premium Frozr design that delivers both performance and style.
Supports Intel Core Ultra Processors (Series 2)
Ultra Power+ - Direct 20 phases VRM Power with 110A Smart Power Stage
With exclusive Core Boost technology and EZ OC Tuning functions, the MPG Z890 CARBON WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
- Digital PWM IC
- 20-Phase direct CPU power (110A / SPS)
- 1-Phase SA Power
- 1-Phase GT Power
- 1-Phase VNNAON Power
Frozr Design
Frozr Guard: Extended Heatsink design, Heat-pipe, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (9200+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory Extension Mode: Provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance.
XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 9200+ MT/s, supports Intel XMP.
Fortified PCIe 5.0 x16 Slot
The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor.
- 2 x PCIe 5.0/4.0/3.0 x16 slots* (one with Steel Armor II** and EZ PCIe Release)
- 1 x PCIe 4.0/3.0 x16 slot*
*Supports x16/x0/x4, x8/x8/x4, x8/x4+x4/x4
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connector
The MPG Z890 CARBON WIFI motherboard features MSI's M.2 slots:
1 x Gen5 x4 128Gbps slot (with magnetic double-sided M.2 Shield Frozr)
4 x Gen4 x4 64Gbps slots (with double-sided M.2 Shield Frozr)
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
Smart Button: By simply pressing the Smart Button, users can reset the system or turn Mystic Light on/off without entering the BIOS.
Ultra Connect
5G LAN + 2.5G LAN: An Intel Killer 5G LAN & Intel 2.5G LAN controller delivers a premium network gaming experience.
Wi-Fi 7: Features the full-speed Intel Killer Wi-Fi 7 (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K@60Hz display support.*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Main Features
- Compatible Core Ultra processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- RAID supported levels provide data reliability and fault tolerance
- Wireless support reduces the number of cables required to connect peripherals
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
Marketing Information
MPG Z890 CARBON WIFI
MPG Z890 CARBON WIFI employs a carbon black color scheme and stylish pattern over Mystic light RGB lighting to show a different identity. It is also powerful inside by featuring Killer 5G LAN and Wi-Fi 7 solution, Thunderbolt 4, Supplemental PCIe Power and the effortless EZ DIY designs, making this motherboard definetly one of the best Z890 ATX motherboards for Intel Core Ultra processors.
MSI's premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
AI Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.
Frozr AI Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
EZ PCIe Release
An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.
EZ LED Switch
Tuning off all LEDs connected to motherboard by just one click.
Pre-Installed I/O Shield
The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.
EZ MOUNTING
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.
EZ Antenna
MSI EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.
EZ Conn header (JAF_2)
MSI's EZ Conn header(JAF_2) allows users to easily connect MSI EZ series fans (7 pin) or MSI liquid cooling (11 pin). If you don't have the above products, we also provide a 1 to 3 EZ Conn-Cable, enabling you to connect ARGB light, system fan and USB device.
