MSI

Part #: MEG Z890 UNIFY-X

Item Code: MBMSI00503

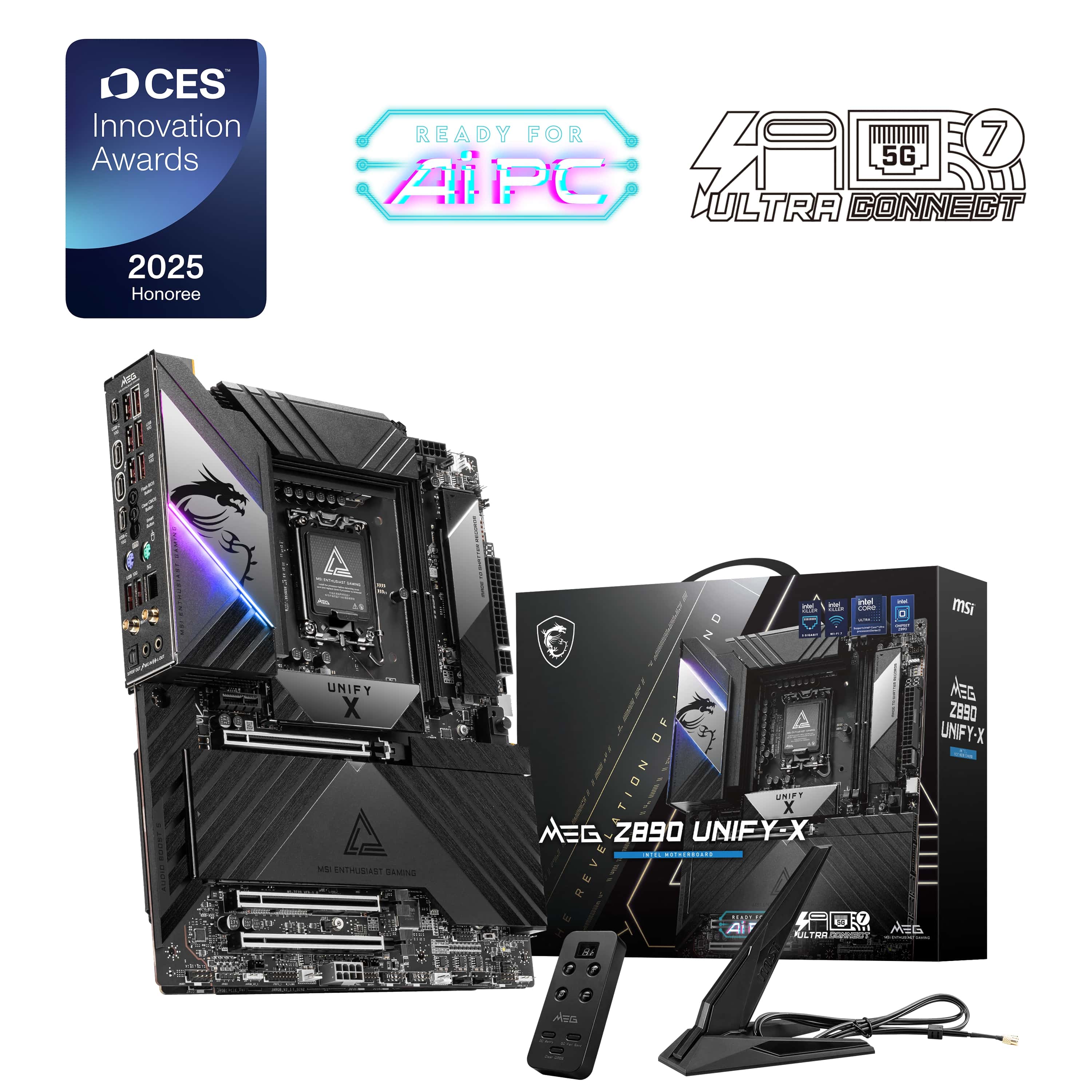

MSI MEG Z890 UNIFY-X, Intel Z890 ATX LGA 1851, Supports Intel® Core™ Ultra Processors (Series 2), 2 Dimm DDR5, PCIE 5.0, M.2 x 6, Thunderbolt 4 up to 40Gbps x2, Type-C, WIFI 7

MSI MEG Z890 UNIFY-X, Intel Z890 ATX LGA 1851 Intel Ultra Motherboard
search
  • MSI MEG Z890 UNIFY-X, Intel Z890 ATX LGA 1851 Intel Ultra Motherboard
  • MSI MEG Z890 UNIFY-X, Intel Z890 ATX LGA 1851 Intel Ultra Motherboard
  • MSI MEG Z890 UNIFY-X, Intel Z890 ATX LGA 1851 Intel Ultra Motherboard
  • MSI MEG Z890 UNIFY-X, Intel Z890 ATX LGA 1851 Intel Ultra Motherboard
  • MSI MEG Z890 UNIFY-X, Intel Z890 ATX LGA 1851 Intel Ultra Motherboard
  • MSI MEG Z890 UNIFY-X, Intel Z890 ATX LGA 1851 Intel Ultra Motherboard
  • MSI MEG Z890 UNIFY-X, Intel Z890 ATX LGA 1851 Intel Ultra Motherboard
  • MSI MEG Z890 UNIFY-X, Intel Z890 ATX LGA 1851 Intel Ultra Motherboard
  • MSI MEG Z890 UNIFY-X, Intel Z890 ATX LGA 1851 Intel Ultra Motherboard
MSI

Part #: MEG Z890 UNIFY-X

Item Code: MBMSI00503

MSI MEG Z890 UNIFY-X, Intel Z890 ATX LGA 1851, Supports Intel® Core™ Ultra Processors (Series 2), 2 Dimm DDR5, PCIE 5.0, M.2 x 6, Thunderbolt 4 up to 40Gbps x2, Type-C, WIFI 7

15-day Low Price Guarantee
$1,049.99
Free Shipping
Model: MEG Z890 UNIFY-X
MEG Z890 GODLIKE
MEG Z890 UNIFY-X
MEG Z890 ACE
MPG Z890 CARBON WIFI
MPG Z890 EDGE TI WIFI
MPG Z890I EDGE TI WIFI
MAG Z890 TOMAHAWK WIFI
PRO Z890-A WIFI
Z890 GAMING PLUS WIFI
PRO Z890-P WIFI
PRO Z890-S WIFI
PRO Z890-S WIFI PZ
Qty:

Tech Care Replace Protection See Benefits
Tech Care Replace Protection
See Benefits
  • 2 Year
    $157.50
  • 3 Year
    $178.50

Availability

Delivery

Sold out online

Store Pickup

Sold Out at London Masonville, ON

Check Other Stores >
Check Other Stores >
Document

Made to Shatter Records

MEG Z890 UNIFY-X is designed specifically for record-breaking DDR5 memory overclocking with its dedicated 2 DIMM architecture. This ATX motherboard featuring sleek black and silver aesthetics, constructed around the latest Intel Z890 chipset which supports Intel Core Ultra Processors (Series 2), featuring direct 20 phases CPU power, PCIe 5.0, 5G LAN, Thunderbolt 4, Wi-Fi 7, premium Frozr and EZ DIY design that delivers extreme memory, gaming, and AI performance.

Supports Intel Core Ultra Processors (Series 2)

The MEG Z890 UNIFY-X motherboard supports Intel Core Ultra Processors (Series 2).

  • Form Factor: ATX
  • Socket Type: LGA 1851
  • Chipset: Intel Z890

Ultra Power+ - Direct 20 phases VRM Power with 110A Smart Power Stage

With Server-grade TLVR inductors for improved transient response, Core Boost technology, and EZ OC Tuning functions, the MEG Z890 UNIFY-X is able to sustain heavy CPU power loads to support system-demanding game settings:

  • Digital PWM IC
  • 20-Phase direct CPU power (110A / TLVR / SPS)
  • 2-Phase SA Power
  • 1-Phase GT Power
  • 1-Phase VNNAON Power

Frozr Design

Frozr Guard: Aluminum Cover, Direct-touch Cross Heat-pipe, 9W/mK MOSFET thermal pads, extra choke thermal pads and Double-sided M.2 Shield Frozr for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

2 x DDR5 Dual Channel (9600+ MT/s OC)*

Memory Boost: A fully-isolated DDR circuit and 2 DIMM slots design ensure a clearer DDR5 memory signal, pushing the boundaries of memory overclocking.

Memory Extension Mode: Provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance.

XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 9600+ MT/s, supports Intel XMP

Fortified PCIe 5.0 x16 Slot

The MSI PCI Express Steel Armor II slot is reinforced with additional solder points on the motherboard, supporting 21% more graphics card weight compared to 1st Gen Steel Armor.

  • 2 x PCIe 5.0/4.0/3.0 x16 slots* (one with Steel Armor II** and EZ PCIe Release)
  • 1 x PCIe 4.0/3.0 x16 slot*
  • 1 x PCIe 4.0/3.0 x1 slot

*Supports x16/x0/x4, x8/x8/x4, x8/x4+x4/x4

**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen5 M.2 Connector

The MEG Z890 UNIFY-X motherboard features MSI's M.2 slots:

1 x Gen5 x4 128Gbps slot (with double-sided M.2 Shield Frozr)

5 x Gen4 x4 64Gbps slots (with double-sided M.2 Shield Frozr)

EZ DIY

The DIY Friendly designs optimize the assemble process and experience.

EZ PCIe Release: With just one press of a button, users can easily install or remove the graphics card with one hand.

EZ M.2 Shield Frozr II: MSI patented screwless Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.

EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.

EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.

Smart Button: By simply pressing the Smart Button, users can reset the system or turn Mystic Light on/off without entering the BIOS.

Ultra Connect

5G LAN: An Intel Killer 5G LAN delivers a premium network gaming experience.

Wi-Fi 7: Features the full-speed Intel Killer Wi-Fi 7 (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.

Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K@60Hz display support.*

HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 & S/PDIF output.

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Main Features

  • Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 9600+ MT/s (OC)
  • Ultra Performance: Direct 20+2+1+1 Phases, TLVR Inductors, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material.
  • Frozr Guard: Aluminum Cover, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
  • EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
  • Ultra Connect: Dual Thunderbolt 4 ports, Intel Killer 5G LAN, and Full-speed Intel Killer Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
  • Lightning Fast Game Experience: PCIe 5.0 slots, Onboard 6x M.2 Connectors with Lightning Gen 5 Solution, Front USB 20G with 60W USB Power Delivery.
  • Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Marketing Information

The V power makes the MEG Z890 UNIFY-X motherboard defeating all challenges among Z890 motherboards. Employing AI server-grade TLVR inductor to enhance overall efficiency and provide the extreme performance. It also equips all the latest technology such as DDR5, PCIe 5.0, Killer Wi-fi 7 and 5G LAN, Thunderbolt 4, and all the EZ DIY features and Supplemental PCIe Power, ready for all challenges of gaming and AI.

The MSI ENTHUSIAST GAMING (MEG) series sets the new standard for gaming excellence, offering raw power and precision engineering with sophisticated design philosophy. Each product in the series is crafted to meet the highest standards of gaming performance and elegance, making it the ultimate gaming experience that every gamer dreams of. With mythological power, divine imagery, and ancient lore woven into every aspect of the product line, the MEG series delivers an immersive and captivating gaming experience that is unmatched in sophistication and performance. It transcends being just a collection of products; it represents the pinnacle of gaming luxury, revolutionizing the gaming world and becoming the top choice for discerning gamers worldwide.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

EZ DIY

Tuning Controller is an exclusive accessory designed for overclocking enthusiasts. It allows users to fine-tune overclocking parameters easily with just one click. Featuring multiple shortcut buttons, the Tuning Controller simplifies the complex overclocking process, making it more accessible for power users aiming to optimize system performance with precision.

ULTRA PERFORMANCE

DIRECT 20+2+1+1 POWER DESIGN

Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 20+2+1+1 digital power phases. Combining dual power connectors and 110A Smart Power Stage, MEG Z890 UNIFY-X is ready for the challenge of high-end processors.

FROZR DESIGN

Aluminum Cover

  • Fully aluminum IO cover and extended heatsink design provide the maximum surface of heat dissipation.

Direct Touch Cross Heat-pipe

  • The U-shape dual heat-pipe connect three MOS heatsinks to enlarge the surface of heat dissipation.

Double-sided M.2 Shield Frozr

  • Double-sided M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.

9W/mK Thermal Pad

  • High quality 9W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

Metal Backplate

  • The metal baseplate cool down the MOSFET temperature with dedicated thermal pads.

Enlarged PCH Heatsink

  • MSI replaced the PCH fan with enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
