The MPG Z890I EDGE TI WIFI motherboard supports Intel Core Ultra Processors (Series 2).
- Form Factor: Mini-ITX
- Socket Type: LGA 1851
- Chipset: Intel Z890
Proudly Canadian-Owned
Clearance

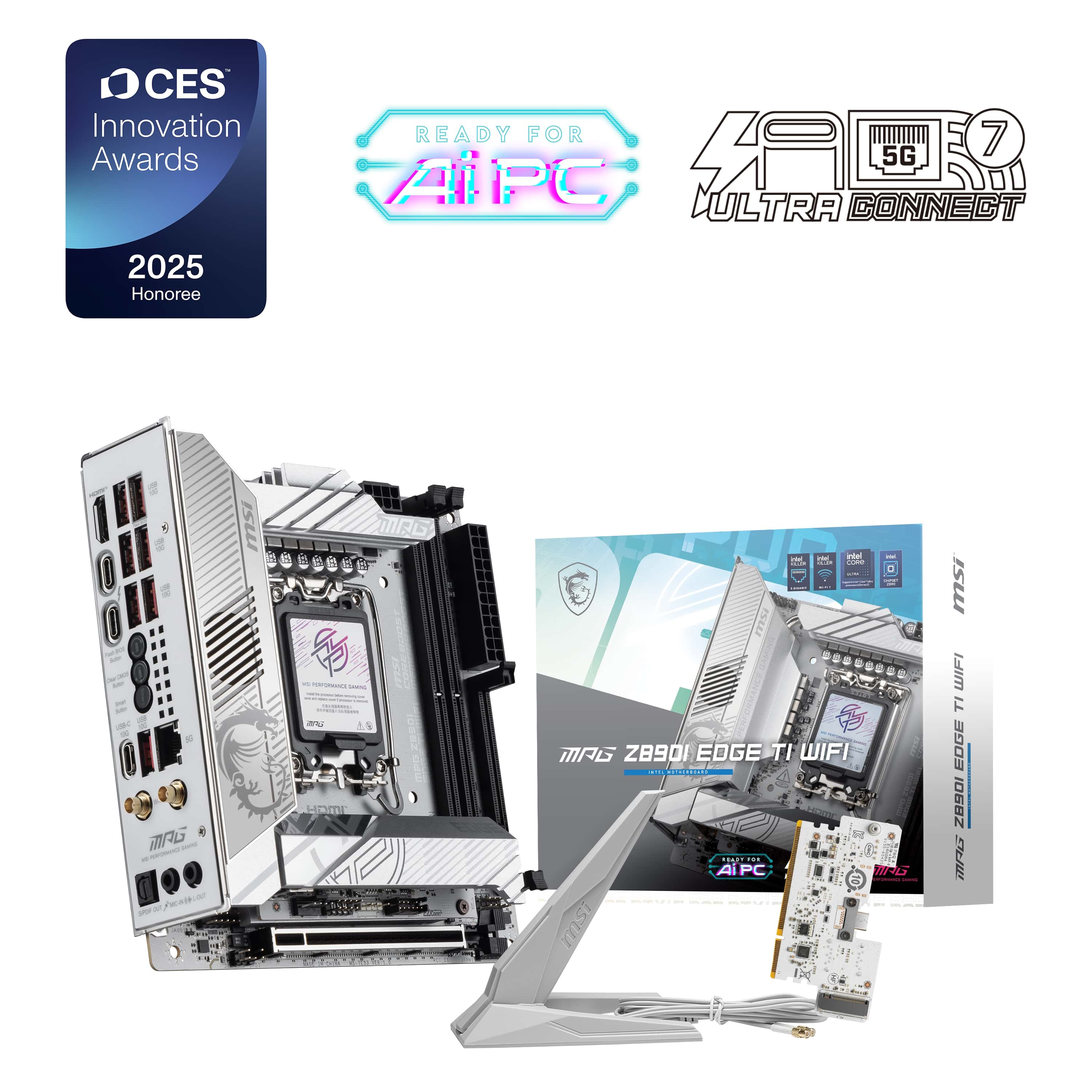

MSI MPG Z890I EDGE TI WIFI, Intel Z890 Mini-ITX LGA 1851, Supports Intel® Core™ Ultra Processors (Series 2), 2 Dimm DDR5, PCIE 5.0, M.2 x 1, Thunderbolt 4 up to 40Gbps x2, Type-C, WIFI 7
-
Email
-
Facebook
-
X
-
Copy Link
Clearance
MSI MPG Z890I EDGE TI WIFI, Intel Z890 Mini-ITX LGA 1851, Supports Intel® Core™ Ultra Processors (Series 2), 2 Dimm DDR5, PCIE 5.0, M.2 x 1, Thunderbolt 4 up to 40Gbps x2, Type-C, WIFI 7
$499.88
Free Shipping
Model:
MPG Z890I EDGE TI WIFI
MEG Z890 GODLIKE
MEG Z890 UNIFY-X
MEG Z890 ACE
MPG Z890 CARBON WIFI
MPG Z890 EDGE TI WIFI
MPG Z890I EDGE TI WIFI
MAG Z890 TOMAHAWK WIFI
MAG Z890 TOMAHAWK WIFI II
PRO Z890-A WIFI
Z890 GAMING PLUS WIFI
Z890 GAMING PLUS WIFI6E
PRO Z890-P WIFI
PRO Z890-S WIFI
PRO Z890-S WIFI PZ
Gift Code Redemption
Unlock one game with purchase of a qualifying Intel® Z890 or B860 chipset motherboard.(Dying Light: The Beast / HITMAN 3 / Civilization® VII)
Value: $90
-
2 Year$64.98
-
3 Year$79.98
Availability
Delivery
Sold out online
Sold Out at All Locations
For Quebec
residents: Please refer to the Availability Guarantee disclosure in the Warranty and Return section
below.
Perform in Style
The MPG Z890I EDGE TI WIFI is a gaming oriented Mini-ITX motherboard with a direct 10 phases power design, constructed around the latest Intel Z890 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, 5G LAN, Thunderbolt 4, Wi-Fi 7, DDR5 and premium Frozr design that delivers both performance and style.
Supports Intel Core Ultra Processors (Series 2)
Ultra Power - Direct 10-phase power design with 110A Smart Power Stage
With exclusive Core Boost technology and EZ OC Tuning functions, the MPG Z890I EDGE TI WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
- Digital PWM IC
- Direct 10-phase power design (110A / SPS)
- 1-Phase SA Power
- 1-Phase GT Power
- 1-Phase VNNAON Power
Frozr Design
Frozr Guard: Extended Heatsink design, Heat-pipe, 7W/mK MOSFET thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Heatsink: The fan design enhances cooling efficiency, resulting in improved performance.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
2 x DDR5 Dual Channel (8600+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory Extension Mode: Provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance.
XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 8600+ MT/s, supports Intel XMP.
Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor*)
*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connector
The MPG Z890I EDGE TI WIFI motherboard features MSI's M.2 slots:
1 x Gen5 x4 128Gbps slot (with EZ M.2 Shield Frozr II)
3 x Gen4 x4 64Gbps slots (1 via 5-in-1 XPANDER card, supports single sided SSD)
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
Smart Button: By simply pressing the Smart Button, users can reset the system or turn Mystic Light on/off without entering the BIOS.
Ultra Connect
5G LAN: An Intel Killer 5G LAN controller delivers a premium network gaming experience.
Wi-Fi 7: Features the full-speed Intel Killer Wi-Fi 7 (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K@60Hz display support.*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Main Features
- Compatible Core Ultra processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- RAID supported levels provide data reliability and fault tolerance
- Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11 a/b/g/n/ac/ax/be wireless standard support
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor
Marketing Information
MPG Z890I EDGE TI WIFI is a mini-ITX Z890 motherboard with incredible power and expansion. It features robust power design, Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 connecitvity. The 5-in-1 Xpander brings this motherboard more connectivities. It is definetly the best mini-ITX motherboard for Intel Core Ultra processors.
MSI's premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
AI Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.
Frozr AI Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
AI Boost
is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.
ULTRA PERFORMANCE
DIRECT 10+1+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 10+1+1+1 phases power design. Combining 110A Smart Power Stage, MPG Z890I EDGE TI WIFI is ready for the challenge of high-end processors.
FROZR DESIGN
TRILINK
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
