MSI

Part #: B860 GAMING PLUS WIFI

Item Code: MBMSI00512

MSI B860 GAMING PLUS WIFI, INTEL B860 ATX, Supports Intel® Core™ Ultra Processors (Series 2), 4 DIMM DDR5, PCIE 5.0, M.2 x 3, Thunderbolt Type-C, WIFI 7

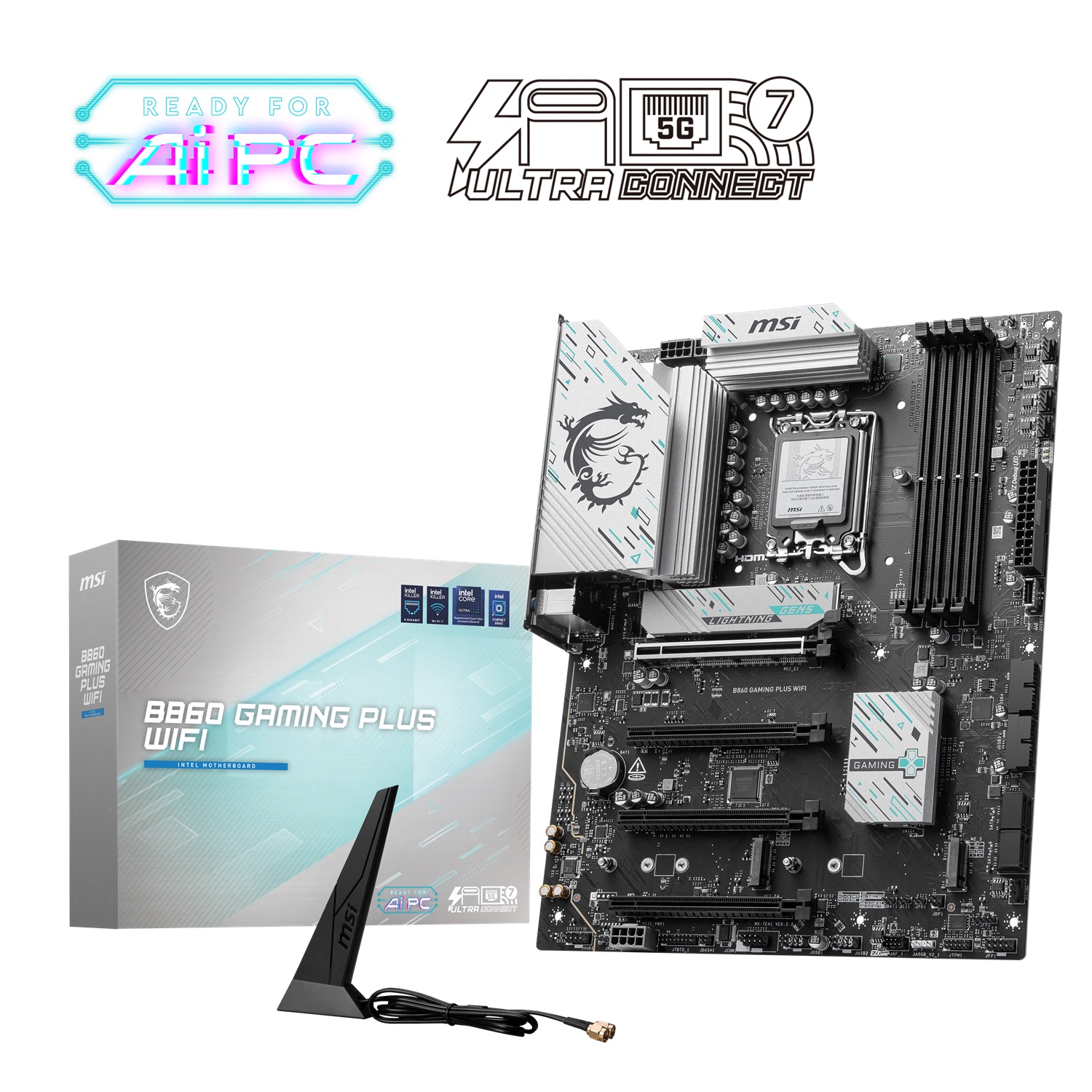

MSI B860 GAMING PLUS WIFI, INTEL B860 ATX Motherboard
search
  • MSI B860 GAMING PLUS WIFI, INTEL B860 ATX Motherboard
  • MSI B860 GAMING PLUS WIFI, INTEL B860 ATX Motherboard
  • MSI B860 GAMING PLUS WIFI, INTEL B860 ATX Motherboard
  • MSI B860 GAMING PLUS WIFI, INTEL B860 ATX Motherboard
  • MSI B860 GAMING PLUS WIFI, INTEL B860 ATX Motherboard
  • MSI B860 GAMING PLUS WIFI, INTEL B860 ATX Motherboard
  • MSI B860 GAMING PLUS WIFI, INTEL B860 ATX Motherboard
MSI

Part #: B860 GAMING PLUS WIFI

Item Code: MBMSI00512

MSI B860 GAMING PLUS WIFI, INTEL B860 ATX, Supports Intel® Core™ Ultra Processors (Series 2), 4 DIMM DDR5, PCIE 5.0, M.2 x 3, Thunderbolt Type-C, WIFI 7

15-day Low Price Guarantee
$309.99
Free Shipping
Model: B860 GAMING PLUS WIFI
MAG B860 TOMAHAWK WIFI
B860 GAMING PLUS WIFI
PRO B860-P WIFI
PRO B860M-A WIFI
Qty:

Tech Care Replace Protection See Benefits
Tech Care Replace Protection
See Benefits
  • 2 Year
    $46.50
  • 3 Year
    $52.70

Availability

Delivery

Available to Ship

Check Est. Delivery Date >
Check Est. Delivery Date >

Store Pickup

1 Available at Waterloo, ON

Check Other Stores >
Check Other Stores >
Document

Win the Competition

The B860 GAMING PLUS WIFI is a gaming oriented ATX motherboard that is contructed with a 12 Duet Rail Power System and the latest Intel B860 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, Thunderbolt 4, 5G LAN, Wi-Fi 7 and DDR5 that balances both value and premium hardware.

Supports Intel Core Ultra Processors (Series 2)

The B860 GAMING PLUS WIFI motherboard supports Intel Core Ultra Processors (Series 2).

  • Form Factor: ATX
  • Socket Type: LGA 1851
  • Chipset: Intel B860

Ultra Power - 12 Duet Rail Power System with P-PAK

With exclusive Core Boost technology, 8+4 pin power connectors and EZ OC Tuning functions, the B860 GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

  • Digital PWM IC
  • 12 Duet Rail Power System (P-PAK)
  • 1-Phase SA Power
  • 1-Phase GT Power
  • 1-Phase VNNAON Power

Frozr Design

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

4 x DDR5 Dual Channel (8600+ MT/s OC)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

Memory Extension Mode: Provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 8600+ MT/s, supports Intel XMP.

Fortified PCIe 5.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.

  • 1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor*)
  • 1 x PCIe 4.0/3.0 x16 slot
  • 2 x PCIe 4.0 x1 slots

*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen5 M.2 Connector

The B860 GAMING PLUS WIFI motherboard features MSI's M.2 slots:

  • 1 x Gen5 x4 128Gbps slot (with EZ M.2 Shield Frozr II)
  • 1 x Gen4 x4 64Gbps slot
  • 1 x Gen4 x2 32Gbps slot

EZ DIY

The DIY Friendly designs optimize the assemble process and experience.

EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.

EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.

EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.

EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.

Ultra Connect

Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K display support*.

5G LAN: An Intel Killer 5G LAN controller delivers a premium network gaming experience.

Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Main Features

  • Compatible Core Ultra processor lets you perform all your computational tasks at a swift pace
  • DDR5 SDRAM slot for convenient installation of memory
  • RAID supported levels provide data reliability and fault tolerance
  • IEEE 802.11 a/b/g/n/ac/ax/be wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
  • HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
  • DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
  • Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
  • Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX gaming desktop motherboard
  • 4 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec

Marketing Information

B860 GAMING PLUS WIFI

The B860 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring Thunderbolt 4 port, full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for Intel Core Ultra processors.

READY FOR Ai PC

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

Al Engine

provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.

AI LAN MANAGER

optimizes networking performance and minimizes latency, providing a seamless online experience.

Frozr Al Cooling

automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.

Al Boost

is an MSI exclusive feature. It overclocks NPU to improve higher Al performance.
