The PRO B860M-A WIFI motherboard supports Intel Core Ultra Processors (Series 2).
- Form Factor: mATX
- Socket Type: LGA 1851
- Chipset: Intel B860
Proudly Canadian-Owned

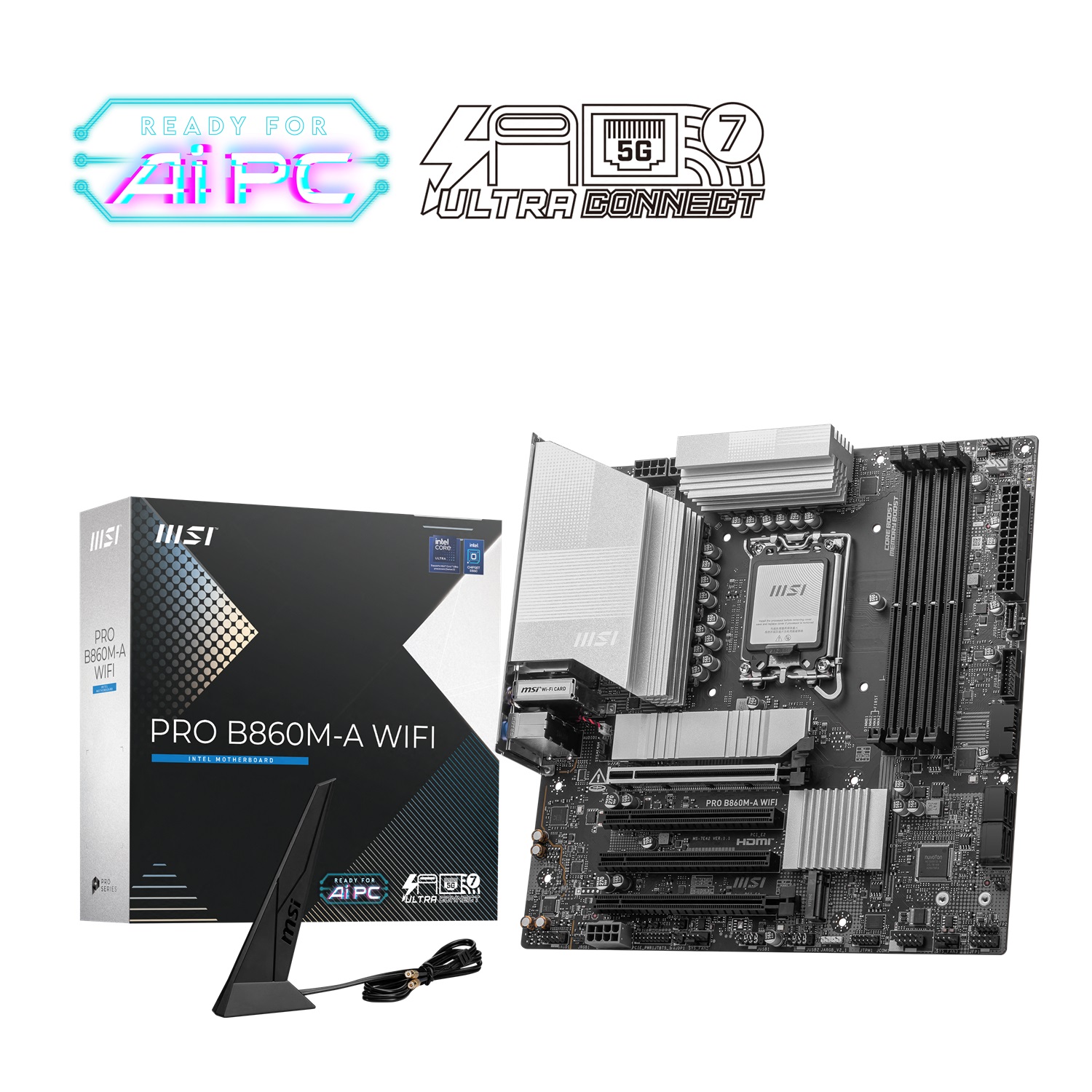

MSI PRO B860M-A WIFI, INTEL B860 mATX, Supports Intel® Core™ Ultra Processors (Series 2), 4 DIMM DDR5, PCIE 4.0, M.2 x 3, Thunderbolt Type-C, WIFI 7(Open Box)
-
2 Year$33.15
-
3 Year$40.80
Availability
Delivery
Sold out online
For Quebec
residents: Please refer to the Availability Guarantee disclosure in the Warranty and Return section
below.
Business Elegance
The PRO B860M-A WIFI is a creation-oriented mATX motherboard with a 12 Duet Rail Power System, constructed around the latest Intel B860 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, 5G LAN, Wi-Fi 7, DDR5 and Frozr design that delivers the capacity to support a broad spectrum of both cutting-edge and innovative hardware.
Supports Intel Core Ultra Processors (Series 2)
Ultra Power - 12 Duet Rail Power System with P-PAK
With exclusive Core Boost technology and EZ OC Tuning functions, the PRO B860M-A WIFI is able to sustain heavy CPU power loads to support system-demanding settings:
- Digital PWM IC
- 12 Duet Rail Power System (P-PAK)
- 1-Phase SA Power
- 1-Phase GT Power
- 1-Phase VNNAON Power
Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (8600+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal overclocking performance.
XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 8600+ MT/s, supports Intel XMP.
Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage counts, Steel Armor also shields the point of contact from electromagnetic interference.
- 1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor** and EZ PCIe Clip II)
- 1 x PCIe 4.0/3.0 x16 slot*
- 2 x PCIe 4.0/3.0 x1 slots
*Support x16/x4
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connector
The PRO B860M-A WIFI motherboard features MSI's M.2 slots:
- 1 x Gen5 x4 128Gbps slot (with EZ M.2 Shield Frozr II)
- 1 x Gen4 x4 64Gbps slot
- 1 x Gen4 x2 32Gbps slot
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
Ultra Connect
5G LAN: A Realtek 5Gbps LAN controller delivers a premium network experience.
Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K display support*.
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Main Features
- Compatible Core Ultra processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- RAID supported levels provide data reliability and fault tolerance
- Enjoy the freedom of Wi-Fi and connect devices faster
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Micro ATX gaming desktop motherboard
- With 2 USB 2.0 ports, transfer several documents without error
Marketing Information
PRO B860-A WIFI
PRO B860M-A WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
PRO SERIES BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
One Finger for EZ GPU Installation
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.
PRE-INSTALLED I/O SHIELD
The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.
EZ MOUNTING
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.
