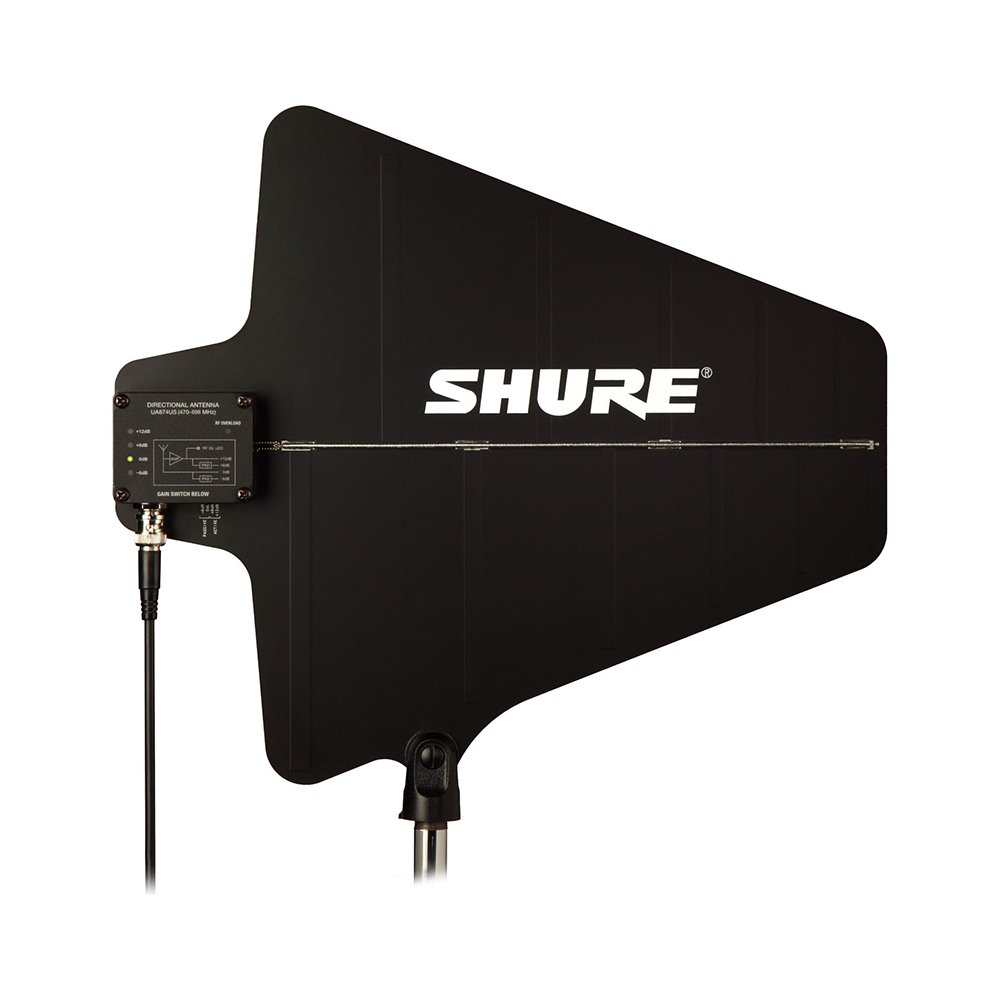

SHURE UA874 Active Directional Antenna | Four-Position Gain Selector Switch | 470 - 698 MHz

Name: SHURE UA874 Active Directional Antenna | Four-Position Gain Selector Switch | 470 - 698 MHz
Brand: SHURE
SKU: PASHU00746
Price: 549 CAD
Availability: SoldOut

SHURE

Part #: UA874US

Item Code: PASHU00746

SHURE UA874 Active Directional Antenna | Four-Position Gain Selector Switch | 470 - 698 MHz

15-day Low Price Guarantee

$549.00

Qty:

Availability

CUSTOM ORDER

AVAILABLE TO ORDER

Returns are only accepted for defective items; all other sales are final.
Delivery times may vary. You will be notified once your order is ready to ship.
Custom order products cannot be canceled once the order is placed.

Marketing Information

PRODUCT DETAILS

UA874 uses a log periodic dipole array to produce a cardioid pattern towards the desired coverage area with greater rejection of RF signals outside the coverage area when compared to standard ½ wave omnidirectional antennas. An integrated amplifier with four gain settings compensate for varying degrees of coaxial cable signal loss.

The UA874 can be stand-mounted, suspended from the ceiling, or wall-mounted using the included swivel adapter bracket.

Defective Exchange Period	30 Days
Manufacturer Warranty	1 Year

Defective Exchange Period	30 Days
Manufacturer Warranty	1 Year

Impedance	50 ohms
Power Requirements	10 - 15 V DC bias from coaxial connection (75 mA)
Reception Pattern	70° (3 dB beam width)
RF Overload LED Threshold	-5 dBm (RF overload LED does not operate for passive gain settings)
Signal Gain	Switchable <br/>Active: +12 dB, +6 dB (±1 dB) <br/>Passive: 0 dB, -6 dB (±1 dB)
Storage Temperature Range	-20 to 165°F (-29 to 74°C)
Operating Temperature Range	0 to 145°F (-18 to 63°C)
Overload Intercept Point	>30 dBm
Antenna Gain	7.5 dBi (on axis)
Connector Type	BNC (female)

Impedance	50 ohms
Power Requirements	10 - 15 V DC bias from coaxial connection (75 mA)
Reception Pattern	70° (3 dB beam width)
RF Overload LED Threshold	-5 dBm (RF overload LED does not operate for passive gain settings)
Signal Gain	Switchable <br/>Active: +12 dB, +6 dB (±1 dB) <br/>Passive: 0 dB, -6 dB (±1 dB)
Storage Temperature Range	-20 to 165°F (-29 to 74°C)
Operating Temperature Range	0 to 145°F (-18 to 63°C)
Overload Intercept Point	>30 dBm
Antenna Gain	7.5 dBi (on axis)
Connector Type	BNC (female)
