This PC case includes a pre-installed 1-to-5 ARGB Fan Control Hub, simplifying cable management and ARGB lighting control.
Proudly Canadian-Owned

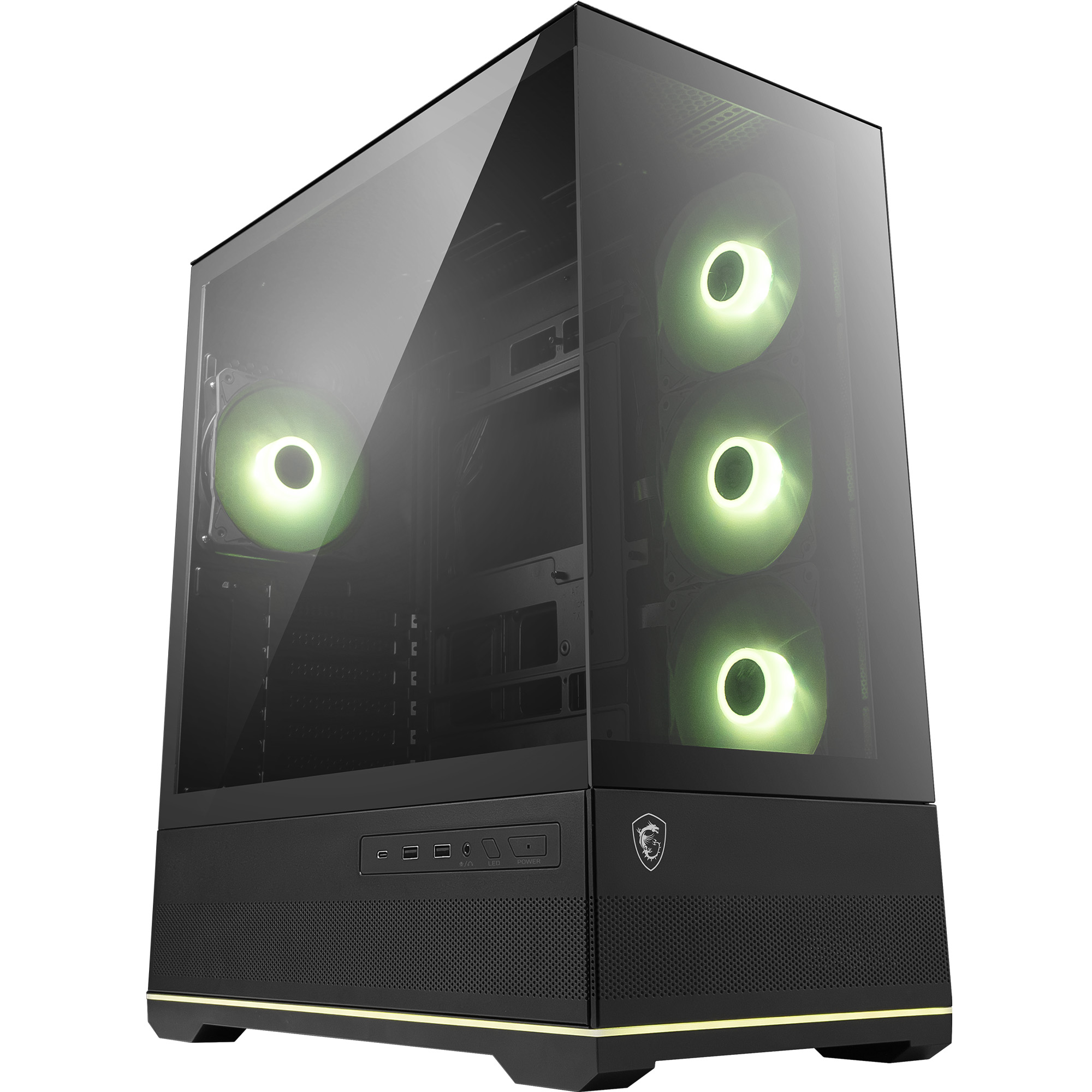

MSI MAG PANO 110R PZ Mid-Tower Case for up to ATX Motherboards, USB 3.2 Type-C x 1, USB 3.2 Gen1 x 2, Tempered Glass Window
-
2 Year$22.50
-
3 Year$25.50
Availability
Delivery
Sold out online
For Quebec
residents: Please refer to the Availability Guarantee disclosure in the Warranty and Return section
below.
SMART IN SPACING
The MAG PANO 110R PZ is a compact mid-tower case engineered for optimal airflow and compatibility. It supports up to 10 fans, with four pre-installed, and features enhanced venting for superior heat dissipation. Designed for flexibility, it accommodates GPUs up to 400mm and ATX/Micro-ATX back-connect motherboards. A 270-degree panoramic design highlights your build, while removable glass panels and an ARGB fan hub simplify installation and cable management.
1-to-5 ARGB Fan Control Hub
Extensive Compatibility
The MAG PANO 110R PZ is a compact mid-tower case that offers ample space:
Motherboard support:
- Regular: ATX / Micro-ATX / Mini-ITX
- Back-connect: ATX / Micro-ATX
Component clearances:
- CPU Cooler height: 160 mm
- GPU length: 400 mm
- PSU length: Up to 200 mm
Extensive Cooling Support
The MAG PANO 110R PZ fan cooling options include:
- Top: 3 x 120 mm / 2 x 140 mm
- Front: NA
- Rear: 1 x 120 mm
- Side: 3 x 120 mm / 2 x 140 mm
- Bottom: 3 x 120 mm (Above the power shroud)
*Pre-installed Fans:
- Side: 3 x 120 mm ARGB Fan (Reverse-blade)
- Rear: 1 x 120 mm ARGB Fan
Airflow Optimization
Increased number of vents on the sides and front of the case to enhance overall heat dissipation. Supports up to 10 fan installations and comes pre-installed with three reverse-blade fans on the side and one regular fan at the rear.
270-Degree Panoramic View
The case boasts a 270-degree panoramic design with tempered glass, providing an expansive view to showcase detailed components.
Drive Mount Support
The SSD bracket features a tool-less design, and the HDD cage is adjustable, allowing users to build systems with greater flexibility.
Storage options:
- 2 x 2.5" SSD
- 2 x 3.5” HDD
- 2 x 2.5“ SSD / 3.5 " HDD Combo Tray
Dust Protection
The case includes two removable filters on the top and bottom, helping protect internal components from dust buildup.
Panel I/O
The side I/O panel features a USB 20Gbps Type-C port for high-speed data bridging to compatible motherboards.
- 1 x USB 20Gbps (Type-C)
- 2 x USB 5Gbps (Type-A)
- Mic in / Audio out
- LED Switch Button
- Power Button
