Capturing The Unreachable

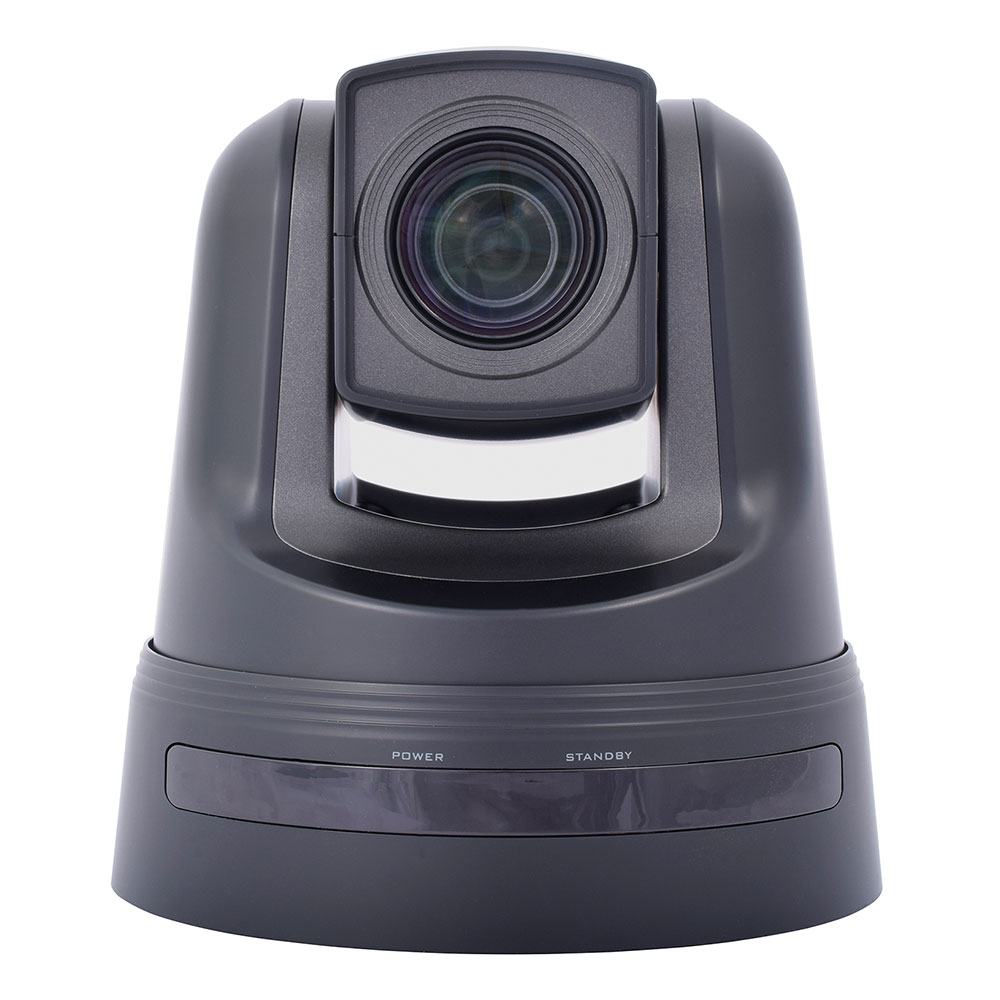

PTZ3-X20L is a compact and versatile HD 3G-SDI Broadcast PTZ Camera that makes it easy to connect and control where it matters most. AIDA PTZ3-X20L is built around a professional 2 Megapixel ½.8-inch sensor with a smooth 20X Optical Power Zoom block module with 12X Digital boost. The camera features built-in OSD for customizable image settings and equipped with a versatile video output such as 3G/HD-SDI, HDMI, DVI (HD) and Composite. Remote operation and control via RS-232C VISCA and RS-422/485 common protocols make it highly compatible with most integrated control systems and workflows.
MAIN FEATURES
| Lens | 20X HD Optical Zoom, F=4.7~94mm, F1.6~F3.5 |
| Dimensions / Weight | 155mm x 160m x 170mm / 1.35Kg |
| Power Source | 12VDC (+9 - +15VDC) |
| Image Sensor | 1/2.86" Progressive CMOS |
| Sensor Size | 5.346mm x 3.003mm (16:9) |
| Effective Pixels | Horizontal: 1920, Vertical: 1080 |
| Pixel Size | 2.75 µm x 2.75 µm |
| Resolution | 1080p & 1080i: 1920 x 1080 720p & 720i: 1280 x 720 |
| Resolution/Rate | 1080 60p/59.94p/50p/30p/29.97p/ 25p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/25p |
| Output | HD-SDI/3G-SDI (1 BNC) HDMI 1.3a CVBS DVI |
| Color Space | 4:2:2 (YCbCr) 10bit |
| Min. Illunination | 0.2Lux (Day), 0.1Lux (Night), 0.005Lux (Slow Shutter ON) |
| White Balance | Auto, Indoor, Outdoor, One Push, ATW, & Manual |
| Exposure | Full Auto, Bright, Shuer Priority, Iris Priority, Manual |
| Focus | Auto, Manual |
| Shutter Speed | 1 to 1/10,000 Sec. |
| Pan/Tilt Range | Pan: 340°, Tilt: +90 to -20° |
| Pan/Tilt Speed | Max. 100° per Second |
| Preset | 128 Positions |
| Field of View | 63° |
| SMPTE | SMPTE 292M, SMPTE 424M |
| Camera Control | Protocol: VISCA, PELCO-D<br/> Interface: RS-232C IN & OUT, RS-422/485 Remote Controller |
| Operation Temp | 32° F - 104° F |
| Lens | 20X HD Optical Zoom, F=4.7~94mm, F1.6~F3.5 |
| Dimensions / Weight | 155mm x 160m x 170mm / 1.35Kg |
| Power Source | 12VDC (+9 - +15VDC) |
| Image Sensor | 1/2.86" Progressive CMOS |
| Sensor Size | 5.346mm x 3.003mm (16:9) |
| Effective Pixels | Horizontal: 1920, Vertical: 1080 |
| Pixel Size | 2.75 µm x 2.75 µm |
| Resolution | 1080p & 1080i: 1920 x 1080 720p & 720i: 1280 x 720 |
| Resolution/Rate | 1080 60p/59.94p/50p/30p/29.97p/ 25p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/25p |
| Output | HD-SDI/3G-SDI (1 BNC) HDMI 1.3a CVBS DVI |
| Color Space | 4:2:2 (YCbCr) 10bit |
| Min. Illunination | 0.2Lux (Day), 0.1Lux (Night), 0.005Lux (Slow Shutter ON) |
| White Balance | Auto, Indoor, Outdoor, One Push, ATW, & Manual |
| Exposure | Full Auto, Bright, Shuer Priority, Iris Priority, Manual |
| Focus | Auto, Manual |
| Shutter Speed | 1 to 1/10,000 Sec. |
| Pan/Tilt Range | Pan: 340°, Tilt: +90 to -20° |
| Pan/Tilt Speed | Max. 100° per Second |
| Preset | 128 Positions |
| Field of View | 63° |
| SMPTE | SMPTE 292M, SMPTE 424M |
| Camera Control | Protocol: VISCA, PELCO-D<br/> Interface: RS-232C IN & OUT, RS-422/485 Remote Controller |
| Operation Temp | 32° F - 104° F |
| Return Period | 15 Days - Unopened |
| Defective Exchange Period | 30 Days |
| Return Period | 15 Days - Unopened |
| Defective Exchange Period | 30 Days |
