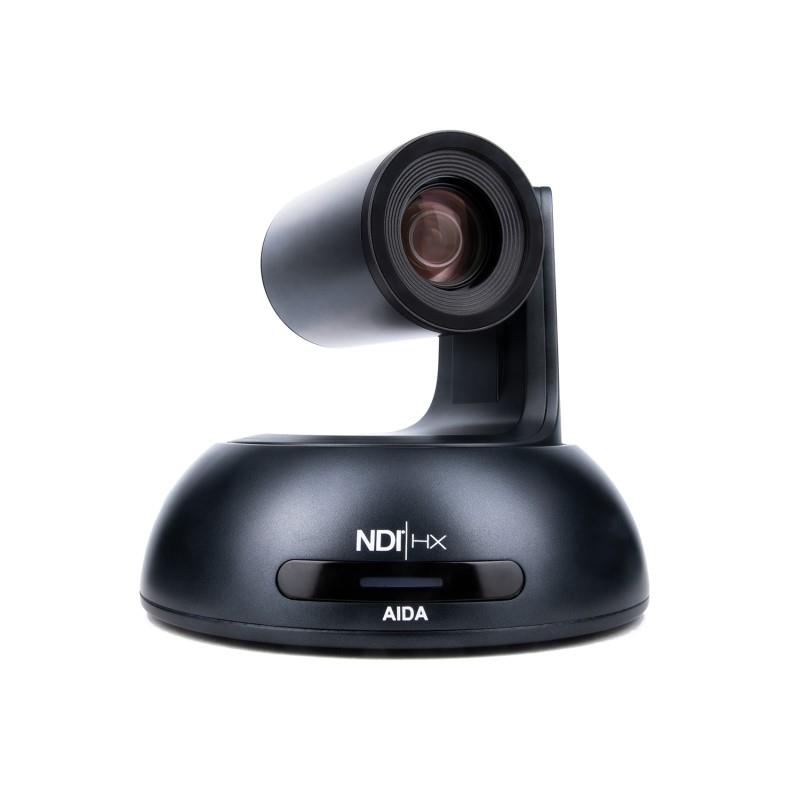

AIDA Imaging Broadcast/Conference NDI®|HX FHD NDI/IP/HDMI PTZ Camera 18X Zoom Black (PTZ-NDI-X18B)

Name: AIDA Imaging NDI®|HX FHD NDI/IP/HDMI PTZ Camera 18X (PTZ-NDI-X18B)
Brand: AIDA Imaging
SKU: DCDCADI011
Price: 1029 CAD
Availability: SoldOut

AIDA Imaging

Part #: PTZ-NDI-X18B

Item Code: DCDCADI011

AIDA Imaging Broadcast/Conference NDI®|HX FHD NDI/IP/HDMI PTZ Camera 18X Zoom Black (PTZ-NDI-X18B)

15-day Low Price Guarantee

$1,029.00

Qty:

Tech Care Replace Protection See Benefits

Tech Care Replace Protection

See Benefits

2 Year

$154.35
3 Year

$174.93

Availability

CUSTOM ORDER

AVAILABLE TO ORDER

Returns are only accepted for defective items; all other sales are final.
Delivery times may vary. You will be notified once your order is ready to ship.
Custom order products cannot be canceled once the order is placed.

Defective Exchange Period

30 Days

Defective Exchange Period

30 Days

Lens	18X HD Optical Zoom
Shutter Speed	1 to 1/10,000 Sec.
White Balance	Auto, Manual, Auto Tracking, One Push,<br />Indoor, Outdoor
Dimension	155mm x 160m x 170mm / 6.10 x 6.92 x 6.69
Image Sensor	1/3 Progressive CMOS
Input	3.5mm TRS Stereo Audio Port
Presets	128 Positions (via web)<br />10 Positions (via remote)
Resolution	1080p & 1080i: 1920 x 1080
Viewing Angle	60° (wide) ~ 4° (tele)
Weight	1.35kg / 2.97lbs
Camera Control	Protocol: VISCA, VISCA over IP, NDI<br />Interface: RS-232C IN & OUT, RJ-45<br />Remote Controller
Colour Space	4:2:2 (YCbCr) 10bit
Resolution Rate	1080 60p/59.94p/50p/30p/29.97p/25p<br />24p/23.98p<br />1080 60i/59.94i/50i<br />720 60p/59.94p/50p/30p/29.97p/25p
Sample Rate	16/24/32 Bits
Effective Pixels	Horizontal: 1920, Vertical: 1080
Focal Length	5.2~93mm
Focus	Auto, Manual
F-Stop	F1.5 ~ F3.0
IP Protocol	UDP/IP, RTSP/RTMP
Min. Illumination	0.1Lux
Operation Temp	0°C - 40°C
Output	HDMI<br />NDI®\|HX / RTSP / RTMP / SRT
Pan/Tilt Range	Pan: 340°, Tilt: +90 to -30°
Pan/Tilt Speed	Pan: 0° to +120°/s, Tilt: 0° to +80°/s
Pixel Size	2.13 μm (H) x 2.13 μm (V)
Power	12VDC (+9 - +15VDC)<br />PoE+ (IEEE802.3at Standard Required)

Lens	18X HD Optical Zoom
Shutter Speed	1 to 1/10,000 Sec.
White Balance	Auto, Manual, Auto Tracking, One Push,<br />Indoor, Outdoor
Dimension	155mm x 160m x 170mm / 6.10 x 6.92 x 6.69
Image Sensor	1/3 Progressive CMOS
Input	3.5mm TRS Stereo Audio Port
Presets	128 Positions (via web)<br />10 Positions (via remote)
Resolution	1080p & 1080i: 1920 x 1080
Viewing Angle	60° (wide) ~ 4° (tele)
Weight	1.35kg / 2.97lbs
Camera Control	Protocol: VISCA, VISCA over IP, NDI<br />Interface: RS-232C IN & OUT, RJ-45<br />Remote Controller
Colour Space	4:2:2 (YCbCr) 10bit
Resolution Rate	1080 60p/59.94p/50p/30p/29.97p/25p<br />24p/23.98p<br />1080 60i/59.94i/50i<br />720 60p/59.94p/50p/30p/29.97p/25p
Sample Rate	16/24/32 Bits
Effective Pixels	Horizontal: 1920, Vertical: 1080
Focal Length	5.2~93mm
Focus	Auto, Manual
F-Stop	F1.5 ~ F3.0
IP Protocol	UDP/IP, RTSP/RTMP
Min. Illumination	0.1Lux
Operation Temp	0°C - 40°C
Output	HDMI<br />NDI®\|HX / RTSP / RTMP / SRT
Pan/Tilt Range	Pan: 340°, Tilt: +90 to -30°
Pan/Tilt Speed	Pan: 0° to +120°/s, Tilt: 0° to +80°/s
Pixel Size	2.13 μm (H) x 2.13 μm (V)
Power	12VDC (+9 - +15VDC)<br />PoE+ (IEEE802.3at Standard Required)
