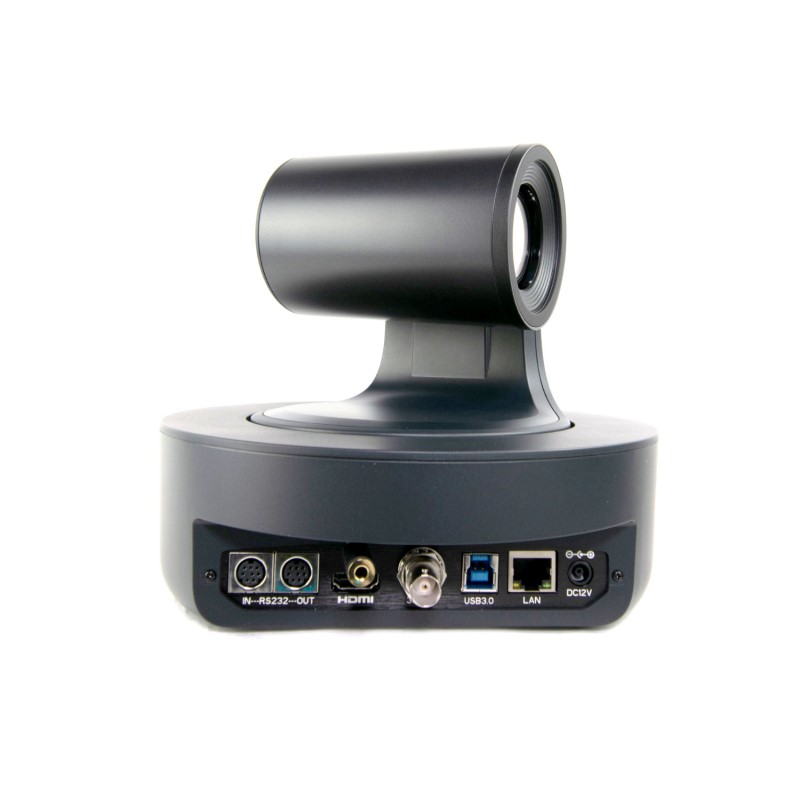

AIDA Imaging Broadcast/Conference NDI®|HX FHD NDI/IP/SDI/HDMI/USB3 PTZ Camera 20X Zoom (PTZ-NDI-X20)

Name: AIDA Imaging NDI®|HX FHD NDI/IP/SDI/HDMI/USB3 20X (PTZ-NDI-X20)
Brand: AIDA Imaging
SKU: DCADI00015
Price: 1469 CAD
Availability: SoldOut

AIDA Imaging

Part #: PTZ-NDI-X20

Item Code: DCADI00015

AIDA Imaging Broadcast/Conference NDI®|HX FHD NDI/IP/SDI/HDMI/USB3 PTZ Camera 20X Zoom (PTZ-NDI-X20)

15-day Low Price Guarantee

$1,469.00

Qty:

Tech Care Replace Protection See Benefits

Tech Care Replace Protection

See Benefits

2 Year

$220.35
3 Year

$249.73

Availability

CUSTOM ORDER

AVAILABLE TO ORDER

Returns are only accepted for defective items; all other sales are final.
Delivery times may vary. You will be notified once your order is ready to ship.
Custom order products cannot be canceled once the order is placed.

Defective Exchange Period

30 Days

Defective Exchange Period

30 Days

Lens	20X HD Optical Zoom, F1.5 ~ F3.0
Shutter Speed	1 to 1/10,000 Sec.
White Balance	Auto, Manual, Auto Tracking, One Push,Indoor, Outdoor
Dimension	155mm x 160m x 170mm / 6.10 x 6.92 x 6.69
Image Sensor	1/2.85 Progressive CMOS
Presets	128 Positions
Resolution	1080p & 1080i: 1920 x 1080
Weight	1.35kg / 2.97lbs
Camera Control	Protocol: VISCA Interface: RS-232C IN & OUT, RJ-45 Remote Controller
Color Space	4:2:2 (YCbCr) 10bit
Resolution Rate	1080 60p/59.94p/50p/30p/29.97p/25p24p/23.98p1080 60i/59.94i/50i720 60p/59.94p/50p/30p/29.97p/25p
SMPTE	SMPTE 292M, SMPTE 424M
Effective Pixels	Horizontal: 1920, Vertical: 1080
Field of View	61°
Focus	Auto, Manual
IP Protocol	TCP/IP, RTSP/RTMP
IP Rate	1920 x 1080 @ 1~601280 x 720 @ 1~601024 x 576 @ 1~60620 x 360 @ 1~60
Min. Illumination	0.1Lux
Operation Temp	0°C - 40°C
Output	HD-SDI/3G-SDIHDMIRTSP / RTMP / NDI®\|HX2USB 3.0 & 2.0
Pan/Tilt Range	Pan: 340°, Tilt: +90 to -30°
Pan/Tilt Speed	Pan: 0° to +120°/s, Tilt: 0° to +80°/s
Pixel Size	2.13 μm (H) x 2.13 μm (V)
Power	12VDC (+9 - +15VDC) PoE+ (IEEE802.3at Standard Required)

Lens	20X HD Optical Zoom, F1.5 ~ F3.0
Shutter Speed	1 to 1/10,000 Sec.
White Balance	Auto, Manual, Auto Tracking, One Push,Indoor, Outdoor
Dimension	155mm x 160m x 170mm / 6.10 x 6.92 x 6.69
Image Sensor	1/2.85 Progressive CMOS
Presets	128 Positions
Resolution	1080p & 1080i: 1920 x 1080
Weight	1.35kg / 2.97lbs
Camera Control	Protocol: VISCA Interface: RS-232C IN & OUT, RJ-45 Remote Controller
Color Space	4:2:2 (YCbCr) 10bit
Resolution Rate	1080 60p/59.94p/50p/30p/29.97p/25p24p/23.98p1080 60i/59.94i/50i720 60p/59.94p/50p/30p/29.97p/25p
SMPTE	SMPTE 292M, SMPTE 424M
Effective Pixels	Horizontal: 1920, Vertical: 1080
Field of View	61°
Focus	Auto, Manual
IP Protocol	TCP/IP, RTSP/RTMP
IP Rate	1920 x 1080 @ 1~601280 x 720 @ 1~601024 x 576 @ 1~60620 x 360 @ 1~60
Min. Illumination	0.1Lux
Operation Temp	0°C - 40°C
Output	HD-SDI/3G-SDIHDMIRTSP / RTMP / NDI®\|HX2USB 3.0 & 2.0
Pan/Tilt Range	Pan: 340°, Tilt: +90 to -30°
Pan/Tilt Speed	Pan: 0° to +120°/s, Tilt: 0° to +80°/s
Pixel Size	2.13 μm (H) x 2.13 μm (V)
Power	12VDC (+9 - +15VDC) PoE+ (IEEE802.3at Standard Required)
