Enjoy the optimal performance in today's on-demand labeling applications
Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
Marketing Information

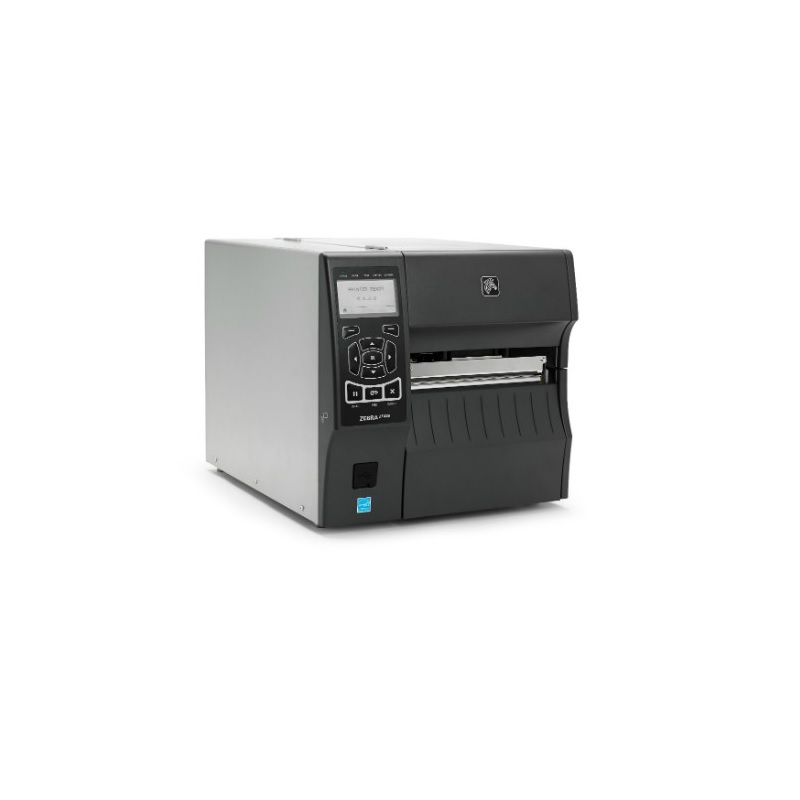

Keep your critical operations running efficiently with Zebra's durable ZT400 Series printers,designed for years of performance in a wide array of applications.
The ZT400 Series builds on the field-proven reliability of the Z Series™ with advancements in print speed, print quality and connectivity options. Designed for ease of use, the ZT400 Series printers offer an intuitive iconbased LCD graphical user interface and easy supplies loading. And, they include standard USB, Serial, Ethernet and Bluetooth® capabilities. Expanded RFID capacities deliver greater tracking abilities, deeper visibility and enterprise insights.
General Information
Manufacturer
Zebra Technologies Corporation
Manufacturer Part Number
ZT42063-T010000Z
Brand Name
Zebra
Product Series
ZT400
Product Model
ZT420
Product Name
ZT400 ZT420 Label Printer
Product Type
Direct Thermal/Thermal Transfer Printer
Technical Information
Recommended Use
Label Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
304.80 mm/s
Maximum Print Resolution (dpi)
300
Maximum Print Width
6.61"
Barcode Symbology Supported
Code 11<br>Code 39<br>Code 93<br>Code 128-A<br>Code 128-B<br>Code 128-C<br>UCC Case Codes<br>ISBT-128<br>UPC-E<br>UPC-A<br>EAN-13<br>EAN-8<br>UPC-E with EAN 2 or 5 Digit Extension<br>Plessey<br>POSTNET<br>Standard 2 of 5<br>Industrial 2 of 5<br>Interleaved 2 of 5<br>LOGMARS<br>MSI<br>Codabar<br>Planet Code<br>Codablock<br>PDF-417<br>Code 49<br>Data Matrix<br>Maxi Code<br>QR Code<br>TLC 39<br>Micro PDF<br>RSS-14<br>RSS Composite<br>Aztec Code
Real Time Clock
Yes
Application/Usage
Desktop
Features
Element Energy Equalizer<br>Bi-color LED<br>Tear Bar
Memory
Standard Memory
256 MB
Flash Memory
512 MB
Interfaces/Ports
Serial Port
Yes
USB
Yes
Network & Communication
Ethernet
Yes
Ethernet Technology
Fast Ethernet
Bluetooth
Yes
Display & Graphics
Display Screen
Yes
Display Screen Type
LCD
Media Types & Handling
Media Type
Label<br>Continuous Label<br>Die-cut Label<br>Notch<br>Black Mark
Media Sensor
Transmissive Media Sensor<br>Reflective Media Sensor
Media Thickness
9.8 mil
Maximum Roll Diameter
8"
Maximum Label Width
7.01" (178 mm)
Maximum Label Length
39" (990.60 mm)
Fonts & Emulation
Language Emulation
ZPL<br>EPL<br>ZPL II<br>XML
Software
Operating System Supported
Zebra's Link-OS
Power Description
Power Source
AC Supply
Input Voltage
110 V AC<br>220 V AC
Physical Characteristics
Height
12.75" (323.85 mm)
Width
13.25" (336.55 mm)
Depth
19.50" (495.30 mm)
Weight (Approximate)
18.14 kg
Miscellaneous
Power Cable Localization
US
Package Contents
ZT400 ZT420 Label PrinterUS Power CordsSoftware and Drivers CDUser Documentation
Cables Included
AC
Platform Supported
PC
Certifications & Standards
Uni CodePFCIEC 60950EN 55022 Class BEN 55024EN 61000-3-2EN 61000-3-3cTUVusCE MarkingFCC-BICES-003VCCIC-TickNOMS-Mark (Arg)CCCCUBSMIKCCSABSIN-Metro
Energy Star
Yes
Environmentally Friendly
Yes
Country of Origin
China
Warranty
Limited Warranty
1 Year
