Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance
Connect USB-enabled devices via 2 USB ports
With Serial ATA/600 interface get superb reliability and high-speed data transfer
Marketing Information

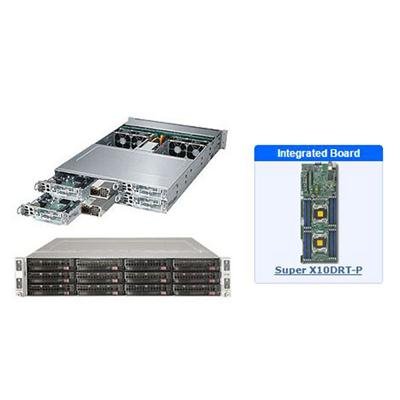

Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-6028TP-HTR
Brand Name
Supermicro
Product Line
SuperServer
Product Model
6028TP-HTR
Product Name
SuperServer 6028TP-HTR (Black)
Product Type
Server Barebone System
Processor
Number of Nodes
4
Number of Processors Supported
2
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612 Express
Memory
Maximum Memory Supported
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Total Number of Memory Slots
16
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
Gigabit Ethernet<br>Fast Ethernet
I/O Expansions
Number of Total Expansion Bays
3
Number of 3.5" Bays
3
Total Number of Expansion Slots
2
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Network (RJ-45)
Yes
Number of SATA Interfaces
10
Power Description
Input Voltage
120 V AC<br>230 V AC
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
2 kW
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.47" (88.14 mm)
Width
17.25" (438.15 mm)
Depth
30" (762 mm)
Miscellaneous
Package Contents
SuperServer 6028TP-HTR (Black)4 x Super X10DRT-P Motherboard1 x 2U Chassis1 x 12x 3.5" hard drive backplane; supports 3.5" Twin Pro Chassis; SAS-3 12Gb/s compliance, new Molex 64-pin receptacles, PWM fan control and Power delay control on HDD spin up,RoHS/REACH,PBF4 x Backplane adapter card; 6SATA ports,RoHS/REACH,PBF4 x RoHS/REACH,PBF4 x 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB4 x 1U Passive Front CPU Heat Sink w/ a Middle Air Channel for X9, X10 2U Twin^2+ and Twin Pro^2 Series Servers2 x 2000W redundant platinum power supply
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-6028TP-HTR
Brand Name
Supermicro
Product Line
SuperServer
Product Model
6028TP-HTR
Product Name
SuperServer 6028TP-HTR (Black)
Product Type
Server Barebone System
Processor
Number of Nodes
4
Number of Processors Supported
2
Processor Supported
Xeon
64-bit Processing
Yes
Chipset
Chipset Manufacturer
Intel
Chipset Model
C612 Express
Memory
Maximum Memory Supported
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2133/PC4-17000
Total Number of Memory Slots
16
Controllers
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Model
AST2400
Network & Communication
Ethernet Technology
Gigabit Ethernet<br>Fast Ethernet
I/O Expansions
Number of Total Expansion Bays
3
Number of 3.5" Bays
3
Total Number of Expansion Slots
2
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Network (RJ-45)
Yes
Number of SATA Interfaces
10
Power Description
Input Voltage
120 V AC<br>230 V AC
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
2 kW
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.47" (88.14 mm)
Width
17.25" (438.15 mm)
Depth
30" (762 mm)
Miscellaneous
Package Contents
SuperServer 6028TP-HTR (Black)4 x Super X10DRT-P Motherboard1 x 2U Chassis1 x 12x 3.5" hard drive backplane; supports 3.5" Twin Pro Chassis; SAS-3 12Gb/s compliance, new Molex 64-pin receptacles, PWM fan control and Power delay control on HDD spin up,RoHS/REACH,PBF4 x Backplane adapter card; 6SATA ports,RoHS/REACH,PBF4 x RoHS/REACH,PBF4 x 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB4 x 1U Passive Front CPU Heat Sink w/ a Middle Air Channel for X9, X10 2U Twin^2+ and Twin Pro^2 Series Servers2 x 2000W redundant platinum power supply
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
Defective Exchange Period
30 Days
Defective Exchange Period
30 Days
