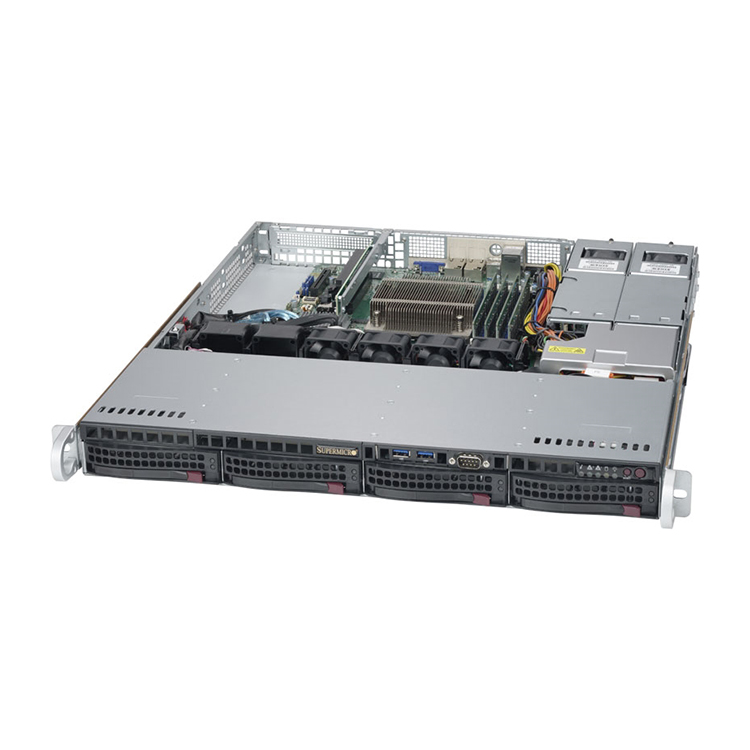

Supermicro SuperServer 5019S-MR Intel® Xeon® processor E3-1200 v5, DDR4 2133MHz; 4x DIMM Slots 1x PCI-E x8 (in x 16) AOC slot (SYS-5019S-MR)

Name: Supermicro SuperServer 5019S-MR Intel® Xeon® processor E3-1200 v5, DDR4 2133MHz; 4x DIMM Slots 1x PCI-E x8 (in x 16) AOC slot (
Brand: SUPERMICRO
SKU: SRSUM00060
Price: 1349 CAD
Availability: SoldOut

SUPERMICRO

Part #: SYS-5019S-MR

Item Code: SRSUM00060

Supermicro SuperServer 5019S-MR Intel® Xeon® processor E3-1200 v5, DDR4 2133MHz; 4x DIMM Slots 1x PCI-E x8 (in x 16) AOC slot (SYS-5019S-MR)

15-day Low Price Guarantee

$1,349.00

Qty:

Tech Care Repair Protection See Benefits

Tech Care Repair Protection

See Benefits

2 Year

$242.82
3 Year

$269.80
4 Year

$323.76

Availability

CUSTOM ORDER

AVAILABLE TO ORDER

Returns are only accepted for defective items; all other sales are final.
Delivery times may vary. You will be notified once your order is ready to ship.
Custom order products cannot be canceled once the order is placed.

Main Features

Intel Core i3 processor works smartly and well responsive to let you swiftly use multiple applications
DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
Gigabit Ethernet is very resourceful when a large number of file transfers are required, such as when performing backups over a network
Can connect up to 4 USB peripherals
Serial ATA/600 interface provides quick data transfer and greater throughput

Marketing Information

Built to deliver long lifespan performance for the latest in embedded, industrial, and security applications, Supermicro uni-processor 1U rack servers and the newest Intel Xeon E3-1200 v5 family processors enable the best performance and efficiency available, with the highest levels of quality and reliability.

Defective Exchange Period

30 Days

Defective Exchange Period

30 Days

Buttons	Power On/Off button <br/>System Reset button
Certification	Platinum Certified
CPU	Single Socket H4 (LGA 1151) supports: <br/>Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3 <br/>CPU TDP up to 80W
Fan	Total of 4 fan headers supporting up to 4 fans <br/>4 fans with tachometer status monitoring <br/>Status monitor for speed control <br/>Status monitor for on/off control <br/>Low noise fan speed control <br/>Pulse Width Modulated (PWM) fan connectors
Input	100 - 240Vac / 6.0 - 3.0A / 50-60Hz <br/>200 - 240Vdc / 3.4 - 3.2A (CCC Only)
LAN	2 RJ45 Gigabit Ethernet LAN ports <br/>1 RJ45 Dedicated IPMI LAN port
Memory Capacity	4x 288-pin DDR4 DIMM slots <br/>Up to 64GB DDR4 ECC UDIMM
Memory Type	2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
Model	CSE-813MFTQC-R407CB
Motherboard	Super X11SSH-F
Other Features	Chassis intrusion detection <br/>Chassis intrusion header <br/>Chipkill support <br/>RoHS, Halogen Free
Output Type	Gold Finger Connector Mating with Molex 45984-4343
USB	4 USB 3.0 ports (2 front, 2 rear) <br/>2 USB 2.0 ports (rear)
Voltage	Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
Weight	Gross Weight: 30.4 lbs (13.8 kg) <br/>Net Weight: 17.6 lbs (8 kg)
Video	1 VGA port
Network Controllers	Dual Intel® I210-AT Gigabit Ethernet LAN ports <br/>Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Note	BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors
Optional	Optional 2.5" drive adapter <br/>Optional slim DVD drive
PCI-Express	1 PCI-E 3.0 x8 (in x16) AOC slot <br/>1 M.2 connector
RoHS	RoHS Compliant
SATA	SATA3 (6Gbps) via C236 controller <br/>RAID 0, 1, 5, 10 support
Serial Port / Header	2 COM ports (1 rear, 1 header)
SuperDOM	2 SuperDOM (Disk on Module) ports with built-in power
Temperature	Monitoring for CPU and chassis environment <br/>CPU thermal trip support <br/>I2C temperature sensing logic <br/>Thermal Monitor 2 (TM2) support <br/>PECI
Total Output Power	400W
Memory Voltage	1.2 V
LED	CPU / System Overheat LED <br/>Suspend static indicator LED <br/>UID/Remote UID
LEDs	Power LED <br/>Hard drive activity LED <br/>2 Network activity LEDs <br/>System Overheat LED
IPMI	Support for Intelligent Platform Management Interface v.2.0 <br/>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support <br/>ASPEED AST2400 BMC
Chipset	Intel® C236 chipset
Fans	4x 40x28mm 4-pin PWM Cooling Fans
Form Factor	1U Rackmount
Hot-swap	4 Hot-swap 3.5" SATA3 drive bays
Dimension (W x H x L)	54.5 x 40 x 220 mm
Dimensions (D x W x H)	19.8 x 17.2 x 1.7 (50.3 x 43.7 x 4.3 cm)
DIMM Sizes	16GB, 8GB, 4GB
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) <br/>Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) <br/>Operating Relative Humidity: 8% to 90% (non-condensing) <br/>Non-operating Relative Humidity: 5% to 95% (non-condensing)
Error Detection	Corrects single-bit errors <br/>Detects double-bit errors (using ECC memory)
+12V	Max: 33A / Min: 0.5A
+5V sb	Max: 3A / Min: 0A
AC/DC240V Input Redundant Power Supplies	400W 1U Redundant Power Supplies with PMbus
Backplane	SAS/SATA HDD Backplane <br/>(SAS support requires optional SAS controller)
Available Colours	Black
BIOS Features	DMI 2.3 <br/>PCI 2.3 <br/>ACPI 1.0 / 2.0 <br/>USB Keyboard support <br/>SMBIOS 2.3
BIOS Type	8MB SPI Flash EEPROM with AMI BIOS

Buttons	Power On/Off button <br/>System Reset button
Certification	Platinum Certified
CPU	Single Socket H4 (LGA 1151) supports: <br/>Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3 <br/>CPU TDP up to 80W
Fan	Total of 4 fan headers supporting up to 4 fans <br/>4 fans with tachometer status monitoring <br/>Status monitor for speed control <br/>Status monitor for on/off control <br/>Low noise fan speed control <br/>Pulse Width Modulated (PWM) fan connectors
Input	100 - 240Vac / 6.0 - 3.0A / 50-60Hz <br/>200 - 240Vdc / 3.4 - 3.2A (CCC Only)
LAN	2 RJ45 Gigabit Ethernet LAN ports <br/>1 RJ45 Dedicated IPMI LAN port
Memory Capacity	4x 288-pin DDR4 DIMM slots <br/>Up to 64GB DDR4 ECC UDIMM
Memory Type	2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
Model	CSE-813MFTQC-R407CB
Motherboard	Super X11SSH-F
Other Features	Chassis intrusion detection <br/>Chassis intrusion header <br/>Chipkill support <br/>RoHS, Halogen Free
Output Type	Gold Finger Connector Mating with Molex 45984-4343
USB	4 USB 3.0 ports (2 front, 2 rear) <br/>2 USB 2.0 ports (rear)
Voltage	Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
Weight	Gross Weight: 30.4 lbs (13.8 kg) <br/>Net Weight: 17.6 lbs (8 kg)
Video	1 VGA port
Network Controllers	Dual Intel® I210-AT Gigabit Ethernet LAN ports <br/>Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Note	BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors
Optional	Optional 2.5" drive adapter <br/>Optional slim DVD drive
PCI-Express	1 PCI-E 3.0 x8 (in x16) AOC slot <br/>1 M.2 connector
RoHS	RoHS Compliant
SATA	SATA3 (6Gbps) via C236 controller <br/>RAID 0, 1, 5, 10 support
Serial Port / Header	2 COM ports (1 rear, 1 header)
SuperDOM	2 SuperDOM (Disk on Module) ports with built-in power
Temperature	Monitoring for CPU and chassis environment <br/>CPU thermal trip support <br/>I2C temperature sensing logic <br/>Thermal Monitor 2 (TM2) support <br/>PECI
Total Output Power	400W
Memory Voltage	1.2 V
LED	CPU / System Overheat LED <br/>Suspend static indicator LED <br/>UID/Remote UID
LEDs	Power LED <br/>Hard drive activity LED <br/>2 Network activity LEDs <br/>System Overheat LED
IPMI	Support for Intelligent Platform Management Interface v.2.0 <br/>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support <br/>ASPEED AST2400 BMC
Chipset	Intel® C236 chipset
Fans	4x 40x28mm 4-pin PWM Cooling Fans
Form Factor	1U Rackmount
Hot-swap	4 Hot-swap 3.5" SATA3 drive bays
Dimension (W x H x L)	54.5 x 40 x 220 mm
Dimensions (D x W x H)	19.8 x 17.2 x 1.7 (50.3 x 43.7 x 4.3 cm)
DIMM Sizes	16GB, 8GB, 4GB
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) <br/>Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) <br/>Operating Relative Humidity: 8% to 90% (non-condensing) <br/>Non-operating Relative Humidity: 5% to 95% (non-condensing)
Error Detection	Corrects single-bit errors <br/>Detects double-bit errors (using ECC memory)
+12V	Max: 33A / Min: 0.5A
+5V sb	Max: 3A / Min: 0A
AC/DC240V Input Redundant Power Supplies	400W 1U Redundant Power Supplies with PMbus
Backplane	SAS/SATA HDD Backplane <br/>(SAS support requires optional SAS controller)
Available Colours	Black
BIOS Features	DMI 2.3 <br/>PCI 2.3 <br/>ACPI 1.0 / 2.0 <br/>USB Keyboard support <br/>SMBIOS 2.3
BIOS Type	8MB SPI Flash EEPROM with AMI BIOS
