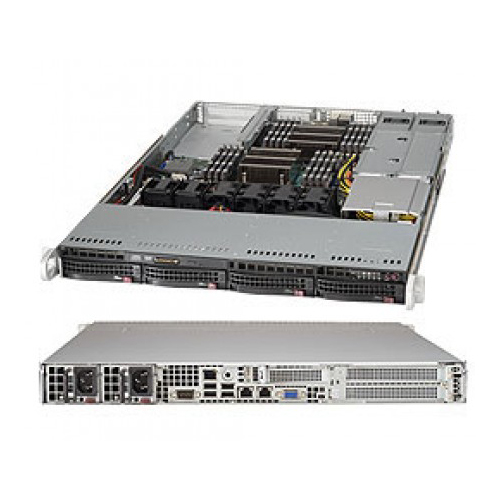

Supermicro SuperServer 6018R-WTRT Dual-Socket LGA2011 1U Rack Server Barebone (SYS-6018R-WTRT) - for Intel® Xeon E5-2600 v4/v3 CPU, Retail Box

Name: Supermicro SuperServer 6018R-WTRT Dual-Socket LGA2011 1U Rack Server Barebone (SYS-6018R-WTRT) - for Intel® Xeon E5-2600 v4/v3
Brand: SUPERMICRO
SKU: SRSUM00065
Price: 2050 CAD
Availability: SoldOut

SUPERMICRO

Part #: SYS-6018R-WTRT

Item Code: SRSUM00065

Supermicro SuperServer 6018R-WTRT Dual-Socket LGA2011 1U Rack Server Barebone (SYS-6018R-WTRT) - for Intel® Xeon E5-2600 v4/v3 CPU, Retail Box

15-day Low Price Guarantee

$2,050.00

Qty:

Tech Care Repair Protection See Benefits

Tech Care Repair Protection

See Benefits

2 Year

$369.00
3 Year

$410.00
4 Year

$492.00

Availability

CUSTOM ORDER

AVAILABLE TO ORDER

Returns are only accepted for defective items; all other sales are final.
Delivery times may vary. You will be notified once your order is ready to ship.
Custom order products cannot be canceled once the order is placed.

Main Features

Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
Fast Ethernet port is the ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
Featuring 6 USB ports to connect USB-compatible devices
With Serial ATA/600 interface get superb reliability and high-speed data transfer

Marketing Information

Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.

Defective Exchange Period

30 Days

Defective Exchange Period

30 Days

Buttons	Power On/Off button <br/>System Reset button <br/>UID Button
Certification	80 Plus Platinum
CPU	Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) * <br/>Dual Socket R3 (LGA 2011)
Input	100 - 140Vac / 8 - 6A / 50-60Hz <br/>200 - 240Vac / 4.5 - 3.8A / 50-60Hz <br/>200 - 240Vdc / 4.5 - 3.8A (CCC Only
LAN	2x RJ45 Gigabit Ethernet LAN ports <br/>1x RJ45 Dedicated IPMI LAN port
Memory Capacity	16x 288-pin DDR4 DIMM slots
Memory Type	2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
Model	CSE-815TQ-R706WB
Motherboard	Super X10DRW-iT
Output Type	Gold Finger Connector Mating with Molex 45984-4343
Software	SuperDoctor® 5 <br/>Watch Dog <br/>NMI <br/>IPMI 2.0 <br/>Intel Node Manager
USB	6x USB 3.0 ports (4 rear + 2 via header)
Weight	Net Weight: 25.5 lbs (11.6 kg) <br/>Gross Weight: 39 lbs (17.7 kg)
Video	1x VGA port
Memory Voltage	1.2 V
SuperDOM	2x SuperDOM (Disk on Module) ports
System Bus	QPI up to 9.6 GT/s
Total Output Power	700W/750W
PCI-Express	2 PCI-E 3.0 x16 full-height, Half-length slots <br/>1x PCI-E 3.0 x8 Mezzanine for HBA cards <br/>UIO AOC Compatibility Matrix <br/>(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Power Configurations	ACPI Power Management <br/>Power-on mode for AC power recovery
RoHS	RoHS Compliant
SATA	10x SATA3 (6Gbps) ports
Serial Port / Header	1x COM port (header)
Network Controllers	Intel® X540 Dual Port 10GBase-T <br/>Virtual Machine Device Queues reduce I/O overhead <br/>Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output <br/>1x Realtek RTL8211E PHY (dedicated IPMI)
Note	BIOS version 2.0 or above is required
LEDs	Power status LED <br/>HDD activity LED <br/>2x Network activity LEDs <br/>Universal Information (UID) LED
IPMI	Support for Intelligent Platform Management Interface v.2.0 <br/>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support <br/>ASPEED AST2400 BMC
Chipset	Intel® C612 chipset
Cores / Cache	Up to 22 Cores / Up to 55MB Cache
Dimension (W x H x L)	54.5 x 40 x 320 mm
Dimensions (D x W x H)	25.6 x 17.2 x 1.7" (65 cm x 43.7 x 4.3 cm)
DIMM Sizes	RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB <br/>LRDIMM: 64GB, 32GB <br/>3DS LRDIMM: 128GB
DVD-ROM	Slim DVD-ROM drive (optional)
Environmental Spec.	Operating Temperature: <br/>10°C to 35°C (50°F to 95°F) <br/>Non-operating Temperature: <br/>-40°C to 70°C (-40°F to 158°F) <br/>Operating Relative Humidity: <br/>8% to 90% (non-condensing) <br/>Non-operating Relative Humidity: <br/>5% to 95% (non-condensing)
Error Detection	Corrects single-bit errors
Fans	5x 4cm Counter-rotating PWM fans
Form Factor	1U Rackmount
Hot-swap	4x 3.5" Hot-swap SAS / SATA HDD trays (ready for PCI-E storage controller card)
+12V	Max: 58A / Min: 0.5A (100 - 140Vac) <br/>Max: 62A / Min: 0.5A (200 - 240Vac) <br/>Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only)
+5V sb	Max: 3A / Min: 0A
AC/DC240V Input Redundant Power Supply	700W/750W Redundant Power Supplies with PMBus
Backplane	SAS/SATA HDD Backplane <br/>(SAS support requires optional SAS controller)
Available Colours	Black
BIOS Features	Plug and Play (PnP) <br/>APM 1.2 <br/>PCI 2.2 <br/>ACPI 1.0 / 2.0 / 3.0 / 4.0 <br/>BIOS resuce hot keys <br/>USB Keyboard support <br/>SMBIOS 2.3 <br/>UEFI
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS

Buttons	Power On/Off button <br/>System Reset button <br/>UID Button
Certification	80 Plus Platinum
CPU	Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) * <br/>Dual Socket R3 (LGA 2011)
Input	100 - 140Vac / 8 - 6A / 50-60Hz <br/>200 - 240Vac / 4.5 - 3.8A / 50-60Hz <br/>200 - 240Vdc / 4.5 - 3.8A (CCC Only
LAN	2x RJ45 Gigabit Ethernet LAN ports <br/>1x RJ45 Dedicated IPMI LAN port
Memory Capacity	16x 288-pin DDR4 DIMM slots
Memory Type	2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
Model	CSE-815TQ-R706WB
Motherboard	Super X10DRW-iT
Output Type	Gold Finger Connector Mating with Molex 45984-4343
Software	SuperDoctor® 5 <br/>Watch Dog <br/>NMI <br/>IPMI 2.0 <br/>Intel Node Manager
USB	6x USB 3.0 ports (4 rear + 2 via header)
Weight	Net Weight: 25.5 lbs (11.6 kg) <br/>Gross Weight: 39 lbs (17.7 kg)
Video	1x VGA port
Memory Voltage	1.2 V
SuperDOM	2x SuperDOM (Disk on Module) ports
System Bus	QPI up to 9.6 GT/s
Total Output Power	700W/750W
PCI-Express	2 PCI-E 3.0 x16 full-height, Half-length slots <br/>1x PCI-E 3.0 x8 Mezzanine for HBA cards <br/>UIO AOC Compatibility Matrix <br/>(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Power Configurations	ACPI Power Management <br/>Power-on mode for AC power recovery
RoHS	RoHS Compliant
SATA	10x SATA3 (6Gbps) ports
Serial Port / Header	1x COM port (header)
Network Controllers	Intel® X540 Dual Port 10GBase-T <br/>Virtual Machine Device Queues reduce I/O overhead <br/>Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output <br/>1x Realtek RTL8211E PHY (dedicated IPMI)
Note	BIOS version 2.0 or above is required
LEDs	Power status LED <br/>HDD activity LED <br/>2x Network activity LEDs <br/>Universal Information (UID) LED
IPMI	Support for Intelligent Platform Management Interface v.2.0 <br/>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support <br/>ASPEED AST2400 BMC
Chipset	Intel® C612 chipset
Cores / Cache	Up to 22 Cores / Up to 55MB Cache
Dimension (W x H x L)	54.5 x 40 x 320 mm
Dimensions (D x W x H)	25.6 x 17.2 x 1.7" (65 cm x 43.7 x 4.3 cm)
DIMM Sizes	RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB <br/>LRDIMM: 64GB, 32GB <br/>3DS LRDIMM: 128GB
DVD-ROM	Slim DVD-ROM drive (optional)
Environmental Spec.	Operating Temperature: <br/>10°C to 35°C (50°F to 95°F) <br/>Non-operating Temperature: <br/>-40°C to 70°C (-40°F to 158°F) <br/>Operating Relative Humidity: <br/>8% to 90% (non-condensing) <br/>Non-operating Relative Humidity: <br/>5% to 95% (non-condensing)
Error Detection	Corrects single-bit errors
Fans	5x 4cm Counter-rotating PWM fans
Form Factor	1U Rackmount
Hot-swap	4x 3.5" Hot-swap SAS / SATA HDD trays (ready for PCI-E storage controller card)
+12V	Max: 58A / Min: 0.5A (100 - 140Vac) <br/>Max: 62A / Min: 0.5A (200 - 240Vac) <br/>Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only)
+5V sb	Max: 3A / Min: 0A
AC/DC240V Input Redundant Power Supply	700W/750W Redundant Power Supplies with PMBus
Backplane	SAS/SATA HDD Backplane <br/>(SAS support requires optional SAS controller)
Available Colours	Black
BIOS Features	Plug and Play (PnP) <br/>APM 1.2 <br/>PCI 2.2 <br/>ACPI 1.0 / 2.0 / 3.0 / 4.0 <br/>BIOS resuce hot keys <br/>USB Keyboard support <br/>SMBIOS 2.3 <br/>UEFI
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
