Brand |
SUPERMICRO |
|
Model |
CSE-F418IL-R1K62BP |
|
Memory Capacity |
8x 288-pin DDR4 DIMM slots <br/>Up to 1TB ECC 3DS LRDIMM, 512GB ECC RDIMM |
|
Memory Type |
2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
|
Motherboard |
Super X10DRFF |
|
Manufacturer Part Number |

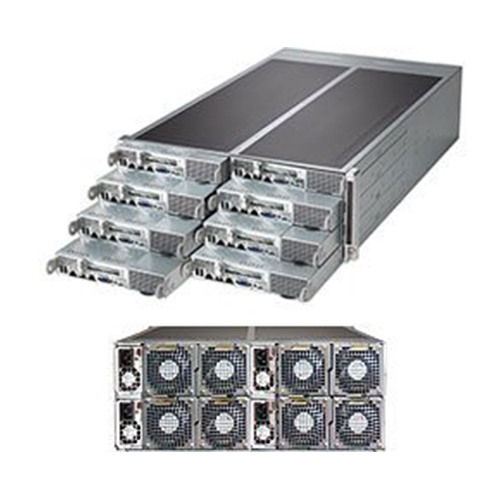

SYS-F618R3-FT |
|
Power Supply |
1620W high-efficiency redundant power supply w/ PMBus |
|
AC Input |
1000W Output @ 100-120V, 12-10A, 50-60Hz <br/>1200W Output @ 120-140V, 12-10A, 50-60Hz Mbr. |
|
Available Colours |
Black |
|
BIOS Features |
Plug and Play (PnP) <br/>APM 1.2 <br/>PCI 2.3 <br/>ACPI 1.0 / 2.0 / 3.0 / 4.0 <br/>USB Keyboard support <br/>SMBIOS 2.7.1 <br/>UEFI 2.3.1 |
|
BIOS Type |
128Mb SPI Flash EEPROM with AMI® BIOS |
|
Buttons |
Power On/Off button <br/>UID button |
|
Certification |
Platinum Certified |
|
Chipset |
Intel® C612 chipset |
|
Cores / Cache |
Up to 22 Cores / Up to 55MB Cache |
|
DC Output |
1000W: +12V/84A; +5Vsb/4A <br/>1200W: +12V/100A; +5Vsb/4A <br/>1620W: +12V/150A; +5Vsb/4A |
|
Dimensions (D x W x H) |
29 x 6.96 x 17.63" (73.7 x 44.8 x 17.7 cm) |
|
DIMM Sizes |
RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB <br/>LRDIMM: 64GB, 32GB <br/>3DS LRDIMM: 128GB |
|
Environmental Spec. |
Operating Temperature: <br/>10°C to 35°C (50°F to 95°F) <br/>Non-operating Temperature: <br/>-40°C to 70°C (-40°F to 158°F) <br/>Operating Relative Humidity: <br/>8% to 90% (non-condensing) <br/>Non-operating Relative Humidity: <br/>5% to 95% (non-condensing) |
|
Error Detection |
Corrects single-bit errors |
|
Fans |
8x 8cm 9.5K RPM Rear Fans |
|
Fixed |
2x 3.5" Fixed SATA HDD trays |
|
Form Factor |
4U Rackmountable / Tower |
|
HeatSink |
2x Active Heatsink with Optimal Fan Speed Control |
|
IPMI |
Support for Intelligent Platform Management Interface v.2.0 <br/>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support <br/>ASPEED AST2400 BMC |
|
LAN |
2x RJ45 Gigabit Ethernet LAN ports <br/>1x RJ45 Dedicated IPMI LAN port |
|
LEDs |
Power status LED <br/>2x Network activity LEDs |
|
Memory Voltage |
1.2 V |
|
Network Controllers |
Dual Intel® i210 Single Port Gigabit Ethernet <br/>Virtual Machine Device Queues reduce I/O overhead <br/>Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output <br/>1x Realtek RTL8211E PHY (dedicated IPMI) |
|
PCI-Express |
1x PCI-E 3.0 x16 Low-profile via riser card |
|
RoHS |
RoHS Compliant |
|
SATA |
2x SATA3 (6Gbps) ports |
|
System Bus |
QPI up to 9.6 GT/s |
|
USB |
2x USB 3.0 ports |
|
VGA |
1x VGA port |
