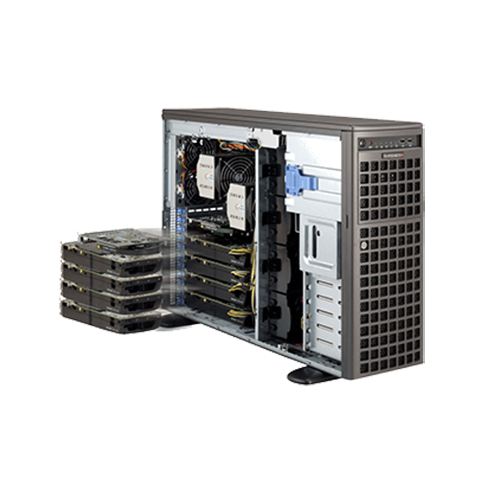

Supermicro SuperServer SYS-7047GR-TRF Intel® Xeon® processor E5-2600 v2, DDR3 1866MHz; 16x DIMM slots (SYS-7047GR-TRF)

Name: Supermicro SuperServer SYS-7047GR-TRF Intel® Xeon® processor E5-2600 v2, DDR3 1866MHz; 16x DIMM slots (SYS-7047GR-TRF)
Brand: SUPERMICRO
SKU: SRSUM00096
Price: 2500 CAD
Availability: SoldOut

SUPERMICRO

Part #: SYS-7047GR-TRF

Item Code: SRSUM00096

Supermicro SuperServer SYS-7047GR-TRF Intel® Xeon® processor E5-2600 v2, DDR3 1866MHz; 16x DIMM slots (SYS-7047GR-TRF)

15-day Low Price Guarantee

$2,500.00

Qty:

Tech Care Repair Protection See Benefits

Tech Care Repair Protection

See Benefits

2 Year

$450.00
3 Year

$500.00
4 Year

$600.00

Availability

CUSTOM ORDER

AVAILABLE TO ORDER

Returns are only accepted for defective items; all other sales are final.
Delivery times may vary. You will be notified once your order is ready to ship.
Custom order products cannot be canceled once the order is placed.

Main Features

Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
DDR3 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
Featuring Gigabit Ethernet port for ultra-fast network speeds
With 9 USB ports, connect/disconnect devices while not having to shut down the system
With Serial ATA/600 interface get superb reliability and high-speed data transfer

Marketing Information

Designed for optimal performance, the dual-processor SuperServer 7047 series support the QPI (8.0 GT/s) format 8-core Xeon E5-2600 Series processors in a high-density 4U form-factor. The 7047 SuperServer has excellent expansion capability and feature set.

Defective Exchange Period

30 Days

Defective Exchange Period

30 Days

Buttons	Power On/Off button <br/>UID button
Certification	Platinum Certified
CPU	Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. <br/>6-Phase-switching voltage regulator
Fan	Total of eight fan headers supporting up to 8 fans <br/>8x fans with tachometer status monitoring <br/>Status monitor for speed control <br/>Pulse Width Modulated (PWM) fan connectors
LAN	2x RJ45 Gigabit Ethernet LAN ports <br/>1x RJ45 Dedicated IPMI LAN port
Memory Capacity	16x 240-pin DDR3 DIMM slots <br/>Up to 1TB DDR3 ECC LRDIMM <br/>Up to 512GB DDR3 ECC Registered memory (RDIMM) <br/>Up to 192GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Model	CSE-747TQ-R1620B
Motherboard	Super X9DRG-QF
Other Features	Chassis intrusion detection <br/>Chassis intrusion header
Ports	2x Front USB 2.0 Ports
USB	9x USB 2.0 ports total (4x rear + 4x via header + 1x Type A)
VGA	1x VGA port
Weight	Gross Weight - 62 lbs (28.1kg)
Video	G200 (Renesas SH7757 BMC with graphic controller)
Memory Voltage	1.5 V, 1.35 V
Super I/O	Nuvoton W83527
System Bus	QPI up to 8 GT/s
Temperature	Monitoring for CPU and chassis environment <br/>CPU thermal trip support <br/>Thermal Control for 8x fan connectors <br/>Thermal Monitor 2 (TM2) support <br/>PECI
RoHS	RoHS Compliant
Serial Port / Header	1x Fast UART 16550 port / 1 Header
PCI-Express	4 PCI-E 3.0 x16 (double-width) <br/>2 PCI-E 3.0 x8 (1 in x16 slot) <br/>1 PCI-E 2.0 x4 (in x8)
Peripheral Bay(s)	3x 5.25" drive bays in storage module - rotates 90° for Rackmount <br/>1x 3.5" fixed drive bay
Network Controllers	Intel® i350 Dual Port Gigabit Ethernet <br/>Virtual Machine Device Queues reduce I/O overhead <br/>Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output <br/>1x Realtek RTL8201N PHY (dedicated IPMI)
LED	CPU / System Overheat LED <br/>Suspend static indicator LED <br/>UID/Remote LED
LEDs	Power status LED <br/>Hard drive activity LED <br/>2x Network activity LEDs <br/>System Overheat LED <br/>Power fail LED
IPMI	Support for Intelligent Platform Management Interface v.2.0 <br/>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support <br/>Nuvoton Renesas SH7757 BMC
Fans	4x 92x38mm 4-pin PWM Middle Cooling Fans <br/>2x 80x38mm 4-pin PWM Rear Exhaust Fans
Form Factor	4U Rackmountable / Tower <br/>Optional Rackmount Kit
GPU Support	Supports C2075, up to 150W CPU at 35°C <br/>K20C (Kepler), up to 150W CPU at 35°C
Hot-swap	8x 3.5" Hot-swap SAS/SATA Drive Trays
DC Output	1000W: +12V/84A; +5Vsb/4A <br/>1200W: +12V/100A; +5Vsb/4A <br/>1620W: +12V/150A; +5Vsb/4A
Dimensions (D x W x H)	26.5 x 7 x 18.2" (67.3 x 17.8 x 46.2 cm)
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Environmental Spec.	Operating Temperature: <br/>10°C to 35°C (50°F to 95°F) <br/>Non-operating Temperature: <br/>-40°C to 70°C (-40°F to 158°F) <br/>Operating Relative Humidity: <br/>8% to 90% (non-condensing) <br/>Non-operating Relative Humidity: <br/>5% to 95% (non-condensing)
Error Detection	Corrects single-bit errors <br/>Detects double-bit errors (using ECC memory)
Chipset	Intel® C602 Chipset
Cores / Cache	Up to 20MB
Backplane	SAS / SATA Hard Drive Backplane with SES2
Power Supply	1620W high-efficiency redundant power supply w/ PMBus
AC Input	1000W Output @ 100-120V, 12-10A, 50-60Hz <br/>1200W Output @ 120-140V, 12-10A, 50-60Hz <br/>1620W Output @ 180-240V, 10.5-8A, 50-60Hz
AHCI SATA	2x SATA 3.0 ports (6Gbps) <br/>8x SATA 2.0 ports (3Gbps)
Available Colours	Black
BIOS Features	Plug and Play (PnP) <br/>APM 1.2 <br/>PCI 2.2 <br/>ACPI 1.0 / 2.0 <br/>USB Keyboard support <br/>SMBIOS 2.3 <br/>UEFI
BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS

Buttons	Power On/Off button <br/>UID button
Certification	Platinum Certified
CPU	Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. <br/>6-Phase-switching voltage regulator
Fan	Total of eight fan headers supporting up to 8 fans <br/>8x fans with tachometer status monitoring <br/>Status monitor for speed control <br/>Pulse Width Modulated (PWM) fan connectors
LAN	2x RJ45 Gigabit Ethernet LAN ports <br/>1x RJ45 Dedicated IPMI LAN port
Memory Capacity	16x 240-pin DDR3 DIMM slots <br/>Up to 1TB DDR3 ECC LRDIMM <br/>Up to 512GB DDR3 ECC Registered memory (RDIMM) <br/>Up to 192GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Model	CSE-747TQ-R1620B
Motherboard	Super X9DRG-QF
Other Features	Chassis intrusion detection <br/>Chassis intrusion header
Ports	2x Front USB 2.0 Ports
USB	9x USB 2.0 ports total (4x rear + 4x via header + 1x Type A)
VGA	1x VGA port
Weight	Gross Weight - 62 lbs (28.1kg)
Video	G200 (Renesas SH7757 BMC with graphic controller)
Memory Voltage	1.5 V, 1.35 V
Super I/O	Nuvoton W83527
System Bus	QPI up to 8 GT/s
Temperature	Monitoring for CPU and chassis environment <br/>CPU thermal trip support <br/>Thermal Control for 8x fan connectors <br/>Thermal Monitor 2 (TM2) support <br/>PECI
RoHS	RoHS Compliant
Serial Port / Header	1x Fast UART 16550 port / 1 Header
PCI-Express	4 PCI-E 3.0 x16 (double-width) <br/>2 PCI-E 3.0 x8 (1 in x16 slot) <br/>1 PCI-E 2.0 x4 (in x8)
Peripheral Bay(s)	3x 5.25" drive bays in storage module - rotates 90° for Rackmount <br/>1x 3.5" fixed drive bay
Network Controllers	Intel® i350 Dual Port Gigabit Ethernet <br/>Virtual Machine Device Queues reduce I/O overhead <br/>Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output <br/>1x Realtek RTL8201N PHY (dedicated IPMI)
LED	CPU / System Overheat LED <br/>Suspend static indicator LED <br/>UID/Remote LED
LEDs	Power status LED <br/>Hard drive activity LED <br/>2x Network activity LEDs <br/>System Overheat LED <br/>Power fail LED
IPMI	Support for Intelligent Platform Management Interface v.2.0 <br/>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support <br/>Nuvoton Renesas SH7757 BMC
Fans	4x 92x38mm 4-pin PWM Middle Cooling Fans <br/>2x 80x38mm 4-pin PWM Rear Exhaust Fans
Form Factor	4U Rackmountable / Tower <br/>Optional Rackmount Kit
GPU Support	Supports C2075, up to 150W CPU at 35°C <br/>K20C (Kepler), up to 150W CPU at 35°C
Hot-swap	8x 3.5" Hot-swap SAS/SATA Drive Trays
DC Output	1000W: +12V/84A; +5Vsb/4A <br/>1200W: +12V/100A; +5Vsb/4A <br/>1620W: +12V/150A; +5Vsb/4A
Dimensions (D x W x H)	26.5 x 7 x 18.2" (67.3 x 17.8 x 46.2 cm)
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Environmental Spec.	Operating Temperature: <br/>10°C to 35°C (50°F to 95°F) <br/>Non-operating Temperature: <br/>-40°C to 70°C (-40°F to 158°F) <br/>Operating Relative Humidity: <br/>8% to 90% (non-condensing) <br/>Non-operating Relative Humidity: <br/>5% to 95% (non-condensing)
Error Detection	Corrects single-bit errors <br/>Detects double-bit errors (using ECC memory)
Chipset	Intel® C602 Chipset
Cores / Cache	Up to 20MB
Backplane	SAS / SATA Hard Drive Backplane with SES2
Power Supply	1620W high-efficiency redundant power supply w/ PMBus
AC Input	1000W Output @ 100-120V, 12-10A, 50-60Hz <br/>1200W Output @ 120-140V, 12-10A, 50-60Hz <br/>1620W Output @ 180-240V, 10.5-8A, 50-60Hz
AHCI SATA	2x SATA 3.0 ports (6Gbps) <br/>8x SATA 2.0 ports (3Gbps)
Available Colours	Black
BIOS Features	Plug and Play (PnP) <br/>APM 1.2 <br/>PCI 2.2 <br/>ACPI 1.0 / 2.0 <br/>USB Keyboard support <br/>SMBIOS 2.3 <br/>UEFI
BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS
