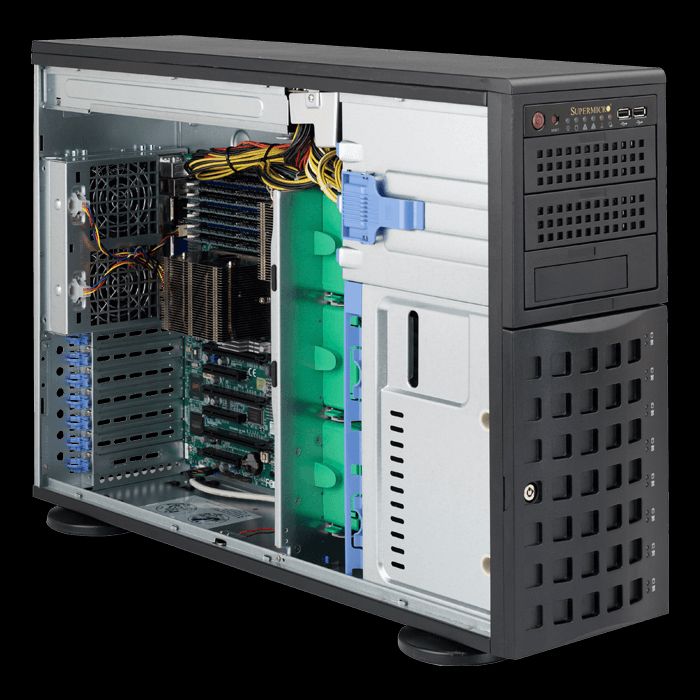

Supermicro Dual-CPU AMD EPYC 7261 2.5Ghz Tower Server - Special Built (CSE745BTS-H11DSINT-OTO90) - 2x AMD EPYC 7261 CPU, 32GB, 1x 1TB SATA HDD, 4x 2TB SATA HDD

Name: Supermicro Dual-CPU AMD EPYC 7261 2.5Ghz Tower Server - Special Built (CSE745BTS-H11DSINT-OTO90) - 2x AMD EPYC 7261 CPU, 32GB,
Brand: SUPERMICRO
SKU: SRSUM00098
Price: 4769 CAD
Availability: SoldOut

SUPERMICRO

Part #: (CSE745BTS-H11DSINT-OTO90)

Item Code: SRSUM00098

Supermicro Dual-CPU AMD EPYC 7261 2.5Ghz Tower Server - Special Built (CSE745BTS-H11DSINT-OTO90) - 2x AMD EPYC 7261 CPU, 32GB, 1x 1TB SATA HDD, 4x 2TB SATA HDD

15-day Low Price Guarantee

$4,769.00

Tech Care Repair Protection See Benefits

Tech Care Repair Protection

See Benefits

2 Year

$858.42
3 Year

$953.80
4 Year

$1,144.56

Availability

CUSTOM ORDER

AVAILABLE TO ORDER

Returns are only accepted for defective items; all other sales are final.
Delivery times may vary. You will be notified once your order is ready to ship.
Custom order products cannot be canceled once the order is placed.

Defective Exchange Period

30 Days

Defective Exchange Period

30 Days

Buttons	Power On/Off button <br/>System Reset button
Certification	Platinum Certified
Graphics	Matrox G200eW
LAN	4x RJ45 Gigabit Ethernet LAN ports <br/>1x RJ45 Dedicated IPMI LAN port
Memory Capacity	24x 240-pin DDR3 DIMM slots <br/>Up to 1.5TB DDR3 ECC LRDIMM <br/>Up to 768GB DDR3 ECC Registered memory (RDIMM) <br/>Up to 192GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Model	CSE-847E16-R1K28LPB
Motherboard	Super X9DRi-LN4F+
USB	9x USB 2.0 ports total (4x rear + 4x via header + 1x Type A)
VGA	1x VGA port
Weight	Net Weight: 67 lbs (30.4 kg) <br/>Gross Weight: 104 lbs (47.2 kg)
PCI-Express	3x PCI-E 3.0 x16 slots (Low-profile) <br/>1x PCI-E 3.0 x8 slot (Low-profile)
Super I/O	Nuvoton W83527
System Bus	QPI up to 8 GT/s
RoHS	RoHS Compliant
SAS AOC	Broadcom 2108 SAS2 RAID AOC (BBU optional) <br/>Hardware RAID 0, 1, 5, 6, 10, 50, 60
Serial Port / Header	1x Fast UART 16550 port / 1 Header
Network Controllers	Intel® i350 Dual Port Gigabit Ethernet <br/>Virtual Machine Device Queues reduce I/O overhead <br/>Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output <br/>1x Realtek RTL8201N PHY (dedicated IPMI)
Memory Voltage	1.5 V, 1.35 V
LEDs	Power status LED <br/>Hard drive activity LED <br/>2x Network activity LEDs <br/>System Overheat LED <br/>Power fail LED
IPMI	Support for Intelligent Platform Management Interface v.2.0 <br/>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support <br/>Nuvoton WPCM450 BMC
JBOD	2x JBOD Expansion Ports
Hot-swap	36x 3.5" Hot-swap SAS / SATA HDD trays Double-sided: 24 front + 12 rear HDD Bays
Fans	7x 8cm hot-swap cooling fans <br/>Redundant cooling
Fixed	Optional Internal Drive Bracket suppports 2x 2.5" or 1x 3.5" devices (up to 2 supported)
Form Factor	4U Rackmount
DC Output	1000W: +12V/83A; +5Vsb/4A <br/>1280W: +12V/106.7A, +5Vsb/4A
Dimensions (D x W x H)	27.5 x 17.2 x 7" (69.9 x 43.7 x 17.8 cm)
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Environmental Spec.	Operating Temperature: <br/>10°C to 35°C (50°F to 95°F) <br/>Non-operating Temperature: <br/>-40°C to 70°C (-40°F to 158°F) <br/>Operating Relative Humidity: <br/>8% to 90% (non-condensing) <br/>Non-operating Relative Humidity: <br/>5% to 95% (non-condensing)
Error Detection	Corrects single-bit errors <br/>Detects double-bit errors (using ECC memory)
Chipset	Intel® C602 Chipset
Cores / Cache	Up to 30MB
Backplane	SAS2 / SATA3 backplane
Power Supply	1280W High-Efficiency (95%+) power supply
AC Input	1000W Output @ 100-140V, 12-8A, 50-60Hz <br/>1280W Output @ 180-240V, 8-6A, 50-60Hz
AHCI SATA	2x SATA 3.0 ports (6Gbps) <br/>8x SATA 2.0 ports (3Gbps)
Available Colours	Black
BIOS Features	Plug and Play (PnP) <br/>APM 1.2 <br/>PCI 2.2 <br/>ACPI 1.0 / 2.0 <br/>USB Keyboard support <br/>SMBIOS 2.3 <br/>UEFI
BIOS Type	64Mb SPI Flash EEPROM with AMI BIOS

Buttons	Power On/Off button <br/>System Reset button
Certification	Platinum Certified
Graphics	Matrox G200eW
LAN	4x RJ45 Gigabit Ethernet LAN ports <br/>1x RJ45 Dedicated IPMI LAN port
Memory Capacity	24x 240-pin DDR3 DIMM slots <br/>Up to 1.5TB DDR3 ECC LRDIMM <br/>Up to 768GB DDR3 ECC Registered memory (RDIMM) <br/>Up to 192GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Model	CSE-847E16-R1K28LPB
Motherboard	Super X9DRi-LN4F+
USB	9x USB 2.0 ports total (4x rear + 4x via header + 1x Type A)
VGA	1x VGA port
Weight	Net Weight: 67 lbs (30.4 kg) <br/>Gross Weight: 104 lbs (47.2 kg)
PCI-Express	3x PCI-E 3.0 x16 slots (Low-profile) <br/>1x PCI-E 3.0 x8 slot (Low-profile)
Super I/O	Nuvoton W83527
System Bus	QPI up to 8 GT/s
RoHS	RoHS Compliant
SAS AOC	Broadcom 2108 SAS2 RAID AOC (BBU optional) <br/>Hardware RAID 0, 1, 5, 6, 10, 50, 60
Serial Port / Header	1x Fast UART 16550 port / 1 Header
Network Controllers	Intel® i350 Dual Port Gigabit Ethernet <br/>Virtual Machine Device Queues reduce I/O overhead <br/>Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output <br/>1x Realtek RTL8201N PHY (dedicated IPMI)
Memory Voltage	1.5 V, 1.35 V
LEDs	Power status LED <br/>Hard drive activity LED <br/>2x Network activity LEDs <br/>System Overheat LED <br/>Power fail LED
IPMI	Support for Intelligent Platform Management Interface v.2.0 <br/>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support <br/>Nuvoton WPCM450 BMC
JBOD	2x JBOD Expansion Ports
Hot-swap	36x 3.5" Hot-swap SAS / SATA HDD trays Double-sided: 24 front + 12 rear HDD Bays
Fans	7x 8cm hot-swap cooling fans <br/>Redundant cooling
Fixed	Optional Internal Drive Bracket suppports 2x 2.5" or 1x 3.5" devices (up to 2 supported)
Form Factor	4U Rackmount
DC Output	1000W: +12V/83A; +5Vsb/4A <br/>1280W: +12V/106.7A, +5Vsb/4A
Dimensions (D x W x H)	27.5 x 17.2 x 7" (69.9 x 43.7 x 17.8 cm)
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Environmental Spec.	Operating Temperature: <br/>10°C to 35°C (50°F to 95°F) <br/>Non-operating Temperature: <br/>-40°C to 70°C (-40°F to 158°F) <br/>Operating Relative Humidity: <br/>8% to 90% (non-condensing) <br/>Non-operating Relative Humidity: <br/>5% to 95% (non-condensing)
Error Detection	Corrects single-bit errors <br/>Detects double-bit errors (using ECC memory)
Chipset	Intel® C602 Chipset
Cores / Cache	Up to 30MB
Backplane	SAS2 / SATA3 backplane
Power Supply	1280W High-Efficiency (95%+) power supply
AC Input	1000W Output @ 100-140V, 12-8A, 50-60Hz <br/>1280W Output @ 180-240V, 8-6A, 50-60Hz
AHCI SATA	2x SATA 3.0 ports (6Gbps) <br/>8x SATA 2.0 ports (3Gbps)
Available Colours	Black
BIOS Features	Plug and Play (PnP) <br/>APM 1.2 <br/>PCI 2.2 <br/>ACPI 1.0 / 2.0 <br/>USB Keyboard support <br/>SMBIOS 2.3 <br/>UEFI
BIOS Type	64Mb SPI Flash EEPROM with AMI BIOS
