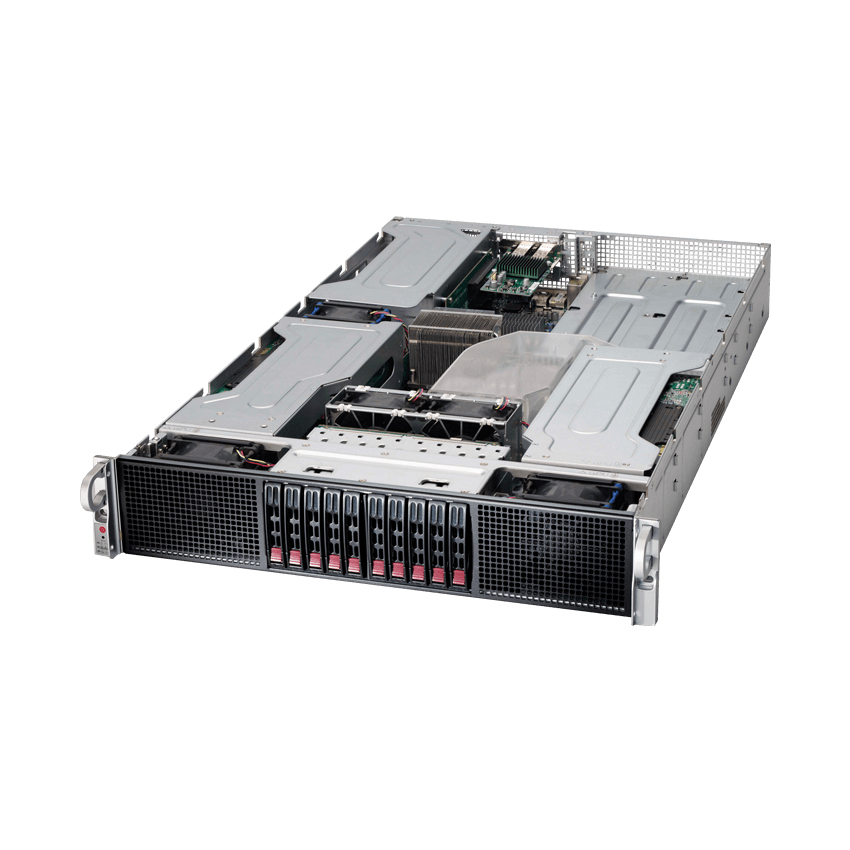

Supermicro SuperServer SYS-2027GR-TRF Intel® Xeon® processor E5-2600 v2, DDR3 1866MHz; 8x DIMM slots (SYS-2027GR-TRF)

Name: Supermicro SuperServer SYS-2027GR-TRF Intel® Xeon® processor E5-2600 v2, DDR3 1866MHz; 8x DIMM slots (SYS-2027GR-TRF)
Brand: SUPERMICRO
SKU: SRSUM00100
Price: 2700 CAD
Availability: SoldOut

SUPERMICRO

Part #: SYS-2027GR-TRF

Item Code: SRSUM00100

Supermicro SuperServer SYS-2027GR-TRF Intel® Xeon® processor E5-2600 v2, DDR3 1866MHz; 8x DIMM slots (SYS-2027GR-TRF)

15-day Low Price Guarantee

$2,700.00

Qty:

Tech Care Repair Protection See Benefits

Tech Care Repair Protection

See Benefits

2 Year

$486.00
3 Year

$540.00
4 Year

$648.00

Availability

CUSTOM ORDER

AVAILABLE TO ORDER

Returns are only accepted for defective items; all other sales are final.
Delivery times may vary. You will be notified once your order is ready to ship.
Custom order products cannot be canceled once the order is placed.

Main Features

Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
DDR3 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance
With 2 USB ports, connect/disconnect devices while not having to shut down the system
Serial ATA/600 interface provides quick data transfer and greater throughput

Marketing Information

Designed for optimal performance, the dual-processor SuperServers support the QPI (8.0GT/s) format Xeon processor E5-2600 family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

Defective Exchange Period

30 Days

Defective Exchange Period

30 Days

Buttons	Power On/Off button <br/>System Reset button
Certification	Platinum Certified
CPU	Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. <br/>CPU Core 6-Phase-switching voltage regulator
Fan	Total of five 4-pin PWM fans <br/>5x fans with tachometer monitoring <br/>Status monitor for speed control <br/>Status monitor for on/off control <br/>Low noise fan speed control
Graphics	Matrox G200eW
LAN	2 RJ45 Gigabit Ethernet LAN ports <br/>1 RJ45 Dedicated IPMI LAN port
Memory Capacity	8x 240-pin DDR3 DIMM slots <br/>Up to 512GB DDR3 ECC LRDIMM <br/>Up to 256GB DDR3 ECC Registered memory (RDIMM) <br/>Up to 48GB DDR3 ECC and non-ECC UDIMM
Memory Type	1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Model	CSE-218G-R1800B
Motherboard	Super X9DRG-HF
Other Features	SDDC Support
USB	2 USB 2.0 ports
Weight	54 lbs (24.5 kg)
Video	1 VGA Connector
System Bus	QPI up to 8 GT/s
Temperature	Monitoring for CPU and chassis environment <br/>CPU thermal trip support <br/>Thermal Control for 10x Fan Connectors <br/>PSU I2C temperature sensing logic <br/>Thermal Monitor 2 (TM2) support <br/>PECI
PCI-Express	4x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards, option) <br/>1x PCI-E 3.0 x8 (in x16) low-profile slot <br/>1x PCI-E 2.0 x4 (in x16) slot
Memory Voltage	1.5 V, 1.35 V
RoHS	RoHS Compliant
SATA	2 SATA 3.0 ports (6Gbps) <br/>8 SATA 2.0 ports (3Gbps)
Serial Port	1 Serial header
Network Controllers	Intel® i350 Dual Port Gigabit Ethernet <br/>Virtual Machine Device Queues reduce I/O overhead <br/>Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output <br/>1x Realtek RTL8201N PHY (dedicated IPMI) <br/>(Both CPUs need to be installed for LAN ports 1 and 2 to be enabled)
LED	Power Fail / Overheat LED <br/>Suspend-state Indicator LED UID LED
LEDs	Power LED <br/>Hard drive activity LED <br/>2x Network activity LEDs <br/>System Overheat LED / Fan fail LED / UID LED
Hot-swap	10x 2.5" Hot-swap drive bays
IPMI	Support for Intelligent Platform Management Interface v.2.0 <br/>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support <br/>Nuvoton WPCM450 BMC
Keyboard/Mouse	1 PS/2 Keyboard/Mouse port
Fans	5x 8cm heavy duty fans with optimal fan speed control
Form Factor	2U Rackmount
GPU/Xeon Phi Support	M2090/M2075, up to 130W CPU at 35°C <br/>K10/K20/K20X/K1/K2/K40M (Kepler), up to 130W CPU at 35°C <br/>Xeon Phi 5110P, up to 130W CPU at 35°C
DC Output	1000W: +12V/84A; +5Vsb/4A <br/>1200W: +12V/100A; +5Vsb/4A <br/>1800W: +12V/150A; +5Vsb/4A
Dimensions (D x W x H)	31 x 17.2 x 1.7" (78.7 x 43.7 x 4.3 cm)
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Environmental Spec.	Operating Temperature: <br/>10°C to 35°C (50°F to 95°F) <br/>Non-operating Temperature: <br/>-40°C to 70°C (-40°F to 158°F) <br/>Operating Relative Humidity: <br/>8% to 90% (non-condensing) <br/>Non-operating Relative Humidity: <br/>5% to 95% (non-condensing)
Error Detection	Corrects single-bit errors <br/>Detects double-bit errors (using ECC memory)
Chipset	Intel® C602 Chipset
Cores / Cache	Up to 30MB
Power Supply	1800W (1+1) Redundant 1800W power supply with PMBus
AC Input	1000W Output @ 100-120V, 12-10A, 50-60Hz <br/>1200W Output @ 120-140V, 12-10A, 50-60Hz <br/>1800W Output @ 200-240V, 10-8.5A, 50-60Hz
AHCI SATA	SATA 2.0 3Gbps with RAID 0, 1, 5, 10 <br/>SATA 3.0 6Gbps with RAID 0, 1
Available Colours	Black
BIOS Features	Plug and Play (PnP) <br/>APM 1.2 <br/>DMI 2.3 <br/>PCI 2.2 <br/>ACPI 1.0 / 2.0 <br/>USB Keyboard support <br/>Hardware BIOS Virus protection <br/>SMBIOS 2.3 UEFI <br/>RTC (Real Time Clock) Wakeup
BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS

Buttons	Power On/Off button <br/>System Reset button
Certification	Platinum Certified
CPU	Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. <br/>CPU Core 6-Phase-switching voltage regulator
Fan	Total of five 4-pin PWM fans <br/>5x fans with tachometer monitoring <br/>Status monitor for speed control <br/>Status monitor for on/off control <br/>Low noise fan speed control
Graphics	Matrox G200eW
LAN	2 RJ45 Gigabit Ethernet LAN ports <br/>1 RJ45 Dedicated IPMI LAN port
Memory Capacity	8x 240-pin DDR3 DIMM slots <br/>Up to 512GB DDR3 ECC LRDIMM <br/>Up to 256GB DDR3 ECC Registered memory (RDIMM) <br/>Up to 48GB DDR3 ECC and non-ECC UDIMM
Memory Type	1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Model	CSE-218G-R1800B
Motherboard	Super X9DRG-HF
Other Features	SDDC Support
USB	2 USB 2.0 ports
Weight	54 lbs (24.5 kg)
Video	1 VGA Connector
System Bus	QPI up to 8 GT/s
Temperature	Monitoring for CPU and chassis environment <br/>CPU thermal trip support <br/>Thermal Control for 10x Fan Connectors <br/>PSU I2C temperature sensing logic <br/>Thermal Monitor 2 (TM2) support <br/>PECI
PCI-Express	4x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards, option) <br/>1x PCI-E 3.0 x8 (in x16) low-profile slot <br/>1x PCI-E 2.0 x4 (in x16) slot
Memory Voltage	1.5 V, 1.35 V
RoHS	RoHS Compliant
SATA	2 SATA 3.0 ports (6Gbps) <br/>8 SATA 2.0 ports (3Gbps)
Serial Port	1 Serial header
Network Controllers	Intel® i350 Dual Port Gigabit Ethernet <br/>Virtual Machine Device Queues reduce I/O overhead <br/>Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output <br/>1x Realtek RTL8201N PHY (dedicated IPMI) <br/>(Both CPUs need to be installed for LAN ports 1 and 2 to be enabled)
LED	Power Fail / Overheat LED <br/>Suspend-state Indicator LED UID LED
LEDs	Power LED <br/>Hard drive activity LED <br/>2x Network activity LEDs <br/>System Overheat LED / Fan fail LED / UID LED
Hot-swap	10x 2.5" Hot-swap drive bays
IPMI	Support for Intelligent Platform Management Interface v.2.0 <br/>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support <br/>Nuvoton WPCM450 BMC
Keyboard/Mouse	1 PS/2 Keyboard/Mouse port
Fans	5x 8cm heavy duty fans with optimal fan speed control
Form Factor	2U Rackmount
GPU/Xeon Phi Support	M2090/M2075, up to 130W CPU at 35°C <br/>K10/K20/K20X/K1/K2/K40M (Kepler), up to 130W CPU at 35°C <br/>Xeon Phi 5110P, up to 130W CPU at 35°C
DC Output	1000W: +12V/84A; +5Vsb/4A <br/>1200W: +12V/100A; +5Vsb/4A <br/>1800W: +12V/150A; +5Vsb/4A
Dimensions (D x W x H)	31 x 17.2 x 1.7" (78.7 x 43.7 x 4.3 cm)
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Environmental Spec.	Operating Temperature: <br/>10°C to 35°C (50°F to 95°F) <br/>Non-operating Temperature: <br/>-40°C to 70°C (-40°F to 158°F) <br/>Operating Relative Humidity: <br/>8% to 90% (non-condensing) <br/>Non-operating Relative Humidity: <br/>5% to 95% (non-condensing)
Error Detection	Corrects single-bit errors <br/>Detects double-bit errors (using ECC memory)
Chipset	Intel® C602 Chipset
Cores / Cache	Up to 30MB
Power Supply	1800W (1+1) Redundant 1800W power supply with PMBus
AC Input	1000W Output @ 100-120V, 12-10A, 50-60Hz <br/>1200W Output @ 120-140V, 12-10A, 50-60Hz <br/>1800W Output @ 200-240V, 10-8.5A, 50-60Hz
AHCI SATA	SATA 2.0 3Gbps with RAID 0, 1, 5, 10 <br/>SATA 3.0 6Gbps with RAID 0, 1
Available Colours	Black
BIOS Features	Plug and Play (PnP) <br/>APM 1.2 <br/>DMI 2.3 <br/>PCI 2.2 <br/>ACPI 1.0 / 2.0 <br/>USB Keyboard support <br/>Hardware BIOS Virus protection <br/>SMBIOS 2.3 UEFI <br/>RTC (Real Time Clock) Wakeup
BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS
