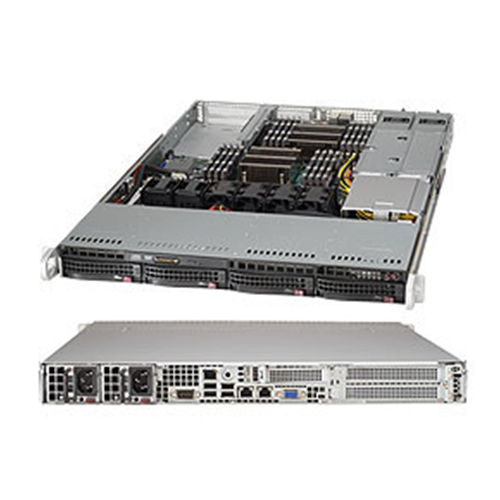

Supermicro SuperServer SYS-6017R-TDF Intel® Xeon® processor E5-2600 v2, DDR3 1866MHz; 8x DIMM slots, 1x PCI-E 3.0 x16 FHHL slot (SYS-6017R-TDF)

Name: Supermicro SuperServer SYS-6017R-TDF Intel® Xeon® processor E5-2600 v2, DDR3 1866MHz; 8x DIMM slots, 1x PCI-E 3.0 x16 FHHL slot
Brand: SUPERMICRO
SKU: SRSUM00105
Price: 1150 CAD
Availability: SoldOut

SUPERMICRO

Part #: SYS-6017R-TDF

Item Code: SRSUM00105

Supermicro SuperServer SYS-6017R-TDF Intel® Xeon® processor E5-2600 v2, DDR3 1866MHz; 8x DIMM slots, 1x PCI-E 3.0 x16 FHHL slot (SYS-6017R-TDF)

15-day Low Price Guarantee

$1,150.00

Qty:

Tech Care Repair Protection See Benefits

Tech Care Repair Protection

See Benefits

2 Year

$207.00
3 Year

$230.00
4 Year

$276.00

Availability

CUSTOM ORDER

AVAILABLE TO ORDER

Returns are only accepted for defective items; all other sales are final.
Delivery times may vary. You will be notified once your order is ready to ship.
Custom order products cannot be canceled once the order is placed.

Main Features

Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
DDR3 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
Connect USB-enabled devices via 9 USB ports
Serial ATA/600 interface provides quick data transfer and greater throughput

Marketing Information

Designed for optimal performance, the dual-processor SuperServers support the QPI (8.0GT/s) format Xeon processor E5-2600 family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

Defective Exchange Period

30 Days

Defective Exchange Period

30 Days

Buttons	Power On/Off button <br/>System Reset button <br/>UID button
Certification	Gold Certified
Graphics	G200 (Renesas SH7757 BMC)
LAN	2x RJ45 Gigabit Ethernet LAN ports <br/>1x RJ45 Dedicated IPMI LAN port
Memory Capacity	16x 240-pin DDR3 DIMM slots <br/>Up to 1TB DDR3 ECC LRDIMM <br/>Up to 512GB DDR3 ECC Registered memory (RDIMM) <br/>Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Model	CSE-815TQ-R700WB
Motherboard	Super X9DRW-iF
USB	6x USB 2.0 ports total <br/>(4x rear + 2x via header)
VGA	1 x VGA Port
Weight	36 lbs (16.4kg)
With Power Distributor	+5V: 25 Amp <br/>+3.3V: 12 Amp <br/>-12V: 0.6 Amp
PCI-Express	2 PCI-E 3.0 x16 full-height, Half-length slots <br/>UIO AOC Compatibility Matrix <br/>(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
System Bus	QPI up to 8 GT/s
RoHS	RoHS Compliant
SATA	Via SATA directly <br/>SATA 2.0 3Gbps with RAID 0, 1, 5, 10 <br/>SATA 3.0 6Gbps with RAID 0, 1
SATA/SAS	Customizable storage
Serial Port / Header	1x Fast UART 16550 port / 1 Header
Network Controllers	Intel® i350 Dual Port Gigabit Ethernet <br/>Virtual Machine Device Queues reduce I/O overhead <br/>Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output <br/>1x Realtek RTL8201N PHY (dedicated IPMI)
Memory Voltage	1.5 V, 1.35 V
LEDs	Power status LED <br/>HDD activity LED <br/>2x Network activity LEDs <br/>Universal Information (UID) LED
Hot-swap	4x 3.5" Hot-swap SAS/SATA2 HDD Bays <br/>(ready for PCI-E storage controller card)
IPMI	Support for Intelligent Platform Management Interface v.2.0 <br/>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support <br/>Renesas SH7757 BMC
Fans	5x 4cm Counter-rotating PWM fans
Form Factor	1U Rackmount
Chipset	Intel® C602 Chipset
Cores / Cache	Up to 30MB
DC Output +12V	700W: 58 Amp @ 100-140V <br/>750W: 62 Amp @ 180-240V
DC Output +5V Standby	3 amp
Dimensions (D x W x H)	25.6 x 17.2 x 1.7" (65 x 43.7 x 4.3 cm)
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB
DVD-ROM	Slim DVD-ROM drive (optional)
Environmental Spec.	Operating Temperature: <br/>10°C to 35°C (50°F to 95°F) <br/>Non-operating Temperature: <br/>-40°C to 70°C (-40°F to 158°F) <br/>Operating Relative Humidity: <br/>8% to 90% (non-condensing) <br/>Non-operating Relative Humidity: <br/>5% to 95% (non-condensing)
Error Detection	Corrects single-bit errors <br/>Detects double-bit errors (using ECC memory)
Backplane	SAS/SATA HDD Backplane <br/>(SAS support requires optional SAS controller)
Power Supply	700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C
AC Voltage	700W: 100 - 140 V, 50-60 Hz, 8.5-6 Amp <br/>750W: 180 - 240V, 60-50 Hz, 5-3.8 Amp
Available Colours	Black
BIOS Features	Plug and Play (PnP) <br/>APM 1.2 <br/>PCI 2.2 <br/>ACPI 1.0 / 2.0 / 3.0 / 4.0<br/> BIOS resuce hot keys<br/> USB Keyboard support <br/>SMBIOS 2.3 <br/>UEFI
BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS

Buttons	Power On/Off button <br/>System Reset button <br/>UID button
Certification	Gold Certified
Graphics	G200 (Renesas SH7757 BMC)
LAN	2x RJ45 Gigabit Ethernet LAN ports <br/>1x RJ45 Dedicated IPMI LAN port
Memory Capacity	16x 240-pin DDR3 DIMM slots <br/>Up to 1TB DDR3 ECC LRDIMM <br/>Up to 512GB DDR3 ECC Registered memory (RDIMM) <br/>Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Model	CSE-815TQ-R700WB
Motherboard	Super X9DRW-iF
USB	6x USB 2.0 ports total <br/>(4x rear + 2x via header)
VGA	1 x VGA Port
Weight	36 lbs (16.4kg)
With Power Distributor	+5V: 25 Amp <br/>+3.3V: 12 Amp <br/>-12V: 0.6 Amp
PCI-Express	2 PCI-E 3.0 x16 full-height, Half-length slots <br/>UIO AOC Compatibility Matrix <br/>(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
System Bus	QPI up to 8 GT/s
RoHS	RoHS Compliant
SATA	Via SATA directly <br/>SATA 2.0 3Gbps with RAID 0, 1, 5, 10 <br/>SATA 3.0 6Gbps with RAID 0, 1
SATA/SAS	Customizable storage
Serial Port / Header	1x Fast UART 16550 port / 1 Header
Network Controllers	Intel® i350 Dual Port Gigabit Ethernet <br/>Virtual Machine Device Queues reduce I/O overhead <br/>Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output <br/>1x Realtek RTL8201N PHY (dedicated IPMI)
Memory Voltage	1.5 V, 1.35 V
LEDs	Power status LED <br/>HDD activity LED <br/>2x Network activity LEDs <br/>Universal Information (UID) LED
Hot-swap	4x 3.5" Hot-swap SAS/SATA2 HDD Bays <br/>(ready for PCI-E storage controller card)
IPMI	Support for Intelligent Platform Management Interface v.2.0 <br/>IPMI 2.0 with virtual media over LAN and KVM-over-LAN support <br/>Renesas SH7757 BMC
Fans	5x 4cm Counter-rotating PWM fans
Form Factor	1U Rackmount
Chipset	Intel® C602 Chipset
Cores / Cache	Up to 30MB
DC Output +12V	700W: 58 Amp @ 100-140V <br/>750W: 62 Amp @ 180-240V
DC Output +5V Standby	3 amp
Dimensions (D x W x H)	25.6 x 17.2 x 1.7" (65 x 43.7 x 4.3 cm)
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB
DVD-ROM	Slim DVD-ROM drive (optional)
Environmental Spec.	Operating Temperature: <br/>10°C to 35°C (50°F to 95°F) <br/>Non-operating Temperature: <br/>-40°C to 70°C (-40°F to 158°F) <br/>Operating Relative Humidity: <br/>8% to 90% (non-condensing) <br/>Non-operating Relative Humidity: <br/>5% to 95% (non-condensing)
Error Detection	Corrects single-bit errors <br/>Detects double-bit errors (using ECC memory)
Backplane	SAS/SATA HDD Backplane <br/>(SAS support requires optional SAS controller)
Power Supply	700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C
AC Voltage	700W: 100 - 140 V, 50-60 Hz, 8.5-6 Amp <br/>750W: 180 - 240V, 60-50 Hz, 5-3.8 Amp
Available Colours	Black
BIOS Features	Plug and Play (PnP) <br/>APM 1.2 <br/>PCI 2.2 <br/>ACPI 1.0 / 2.0 / 3.0 / 4.0<br/> BIOS resuce hot keys<br/> USB Keyboard support <br/>SMBIOS 2.3 <br/>UEFI
BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS
