INTEL

Part #: S1200SPLR

Item Code: SRINT00129

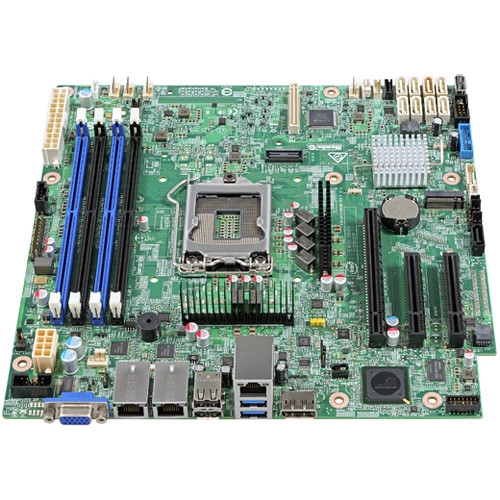

Intel DBS1200SPLR Silver Pass Server Board - uATX LGA1151 (DBS1200SPLR) - for Xeon E3-1200 v5/v6

Intel DBS1200SPLR Silver Pass Server Board - uATX LGA1151 (DBS1200SPLR) - for Xeon E3-1200 v5/v6
search
  • Intel DBS1200SPLR Silver Pass Server Board - uATX LGA1151 (DBS1200SPLR) - for Xeon E3-1200 v5/v6
INTEL

Part #: S1200SPLR

Item Code: SRINT00129

Intel DBS1200SPLR Silver Pass Server Board - uATX LGA1151 (DBS1200SPLR) - for Xeon E3-1200 v5/v6

15-day Low Price Guarantee
$349.00
Qty:

Tech Care Replace Protection See Benefits
Tech Care Replace Protection
See Benefits
  • 2 Year
    $52.35
  • 3 Year
    $59.33

Availability

CUSTOM ORDER
AVAILABLE TO ORDER
Returns are only accepted for defective items; all other sales are final.
Delivery times may vary. You will be notified once your order is ready to ship.
Custom order products cannot be canceled once the order is placed.

Compatible Product Series
Intel Xeon Processor E3-1200 v6 Family
Board Form Factor
uATX
Socket
1
Integrated BMC with IPMI
IPMI 2.0
Embedded Options Available
No
Board Chipset
Intel C236 Chipset
Memory Specifications
Max Memory Size (dependent on memory type) : 64 GB
Memory Types : DDR4 ECC UDIMM
Max of Memory Channels : 2
Max Memory Bandwidth : 68.256 GB/s
Physical Address Extensions : 40-bit
Max of DIMMs : 4
ECC Memory Supported : Yes
DIMM Type : UDIMM
Graphics Specifications
Integrated Graphics : Yes
Graphics Output : Display Port, VGA
Expansion Options
PCI Express Revision : 3.0
Max of PCI Express Lanes : 20
PCIe x4 Gen 3 : 1
PCIe x8 Gen 3 : 1
PCIe x16 Gen 3 : 1
Connector for Intel I/O Expansion Module x8 Gen 3 : 1
Connector for Intel Integrated RAID Module : 1
I/O Specifications
USB Revision : 2.0 and 3.0
USB Ports : 9
Total of SATA Ports : 8
RAID Configuration : Software RAID RST (0,1,10,5) and ESRT2 (0,1,10)
Serial Ports : 1
LAN Ports : 2
Integrated LAN : 2x 1GbE
Embedded USB (eUSB) Solid State Drive Option : No
Integrated InfiniBand : No
Advanced Technologies
Intel Virtualization Technology for Directed I/O (VT-d) : Yes
Intel Remote Management Module Support : Yes
Intel Node Manager : Yes
Intel Rapid Storage Technology enterprise : Yes
Intel I/O Acceleration Technology : Yes
Intel Platform Protection Technology
Trusted Execution Technology : Yes
Intel Transparent Supply Chain
TPM Version : 1.2
Item Dimension (L"xW"xH")
16 x 11 x 14
Warranty Information
Intel 3-year limited
