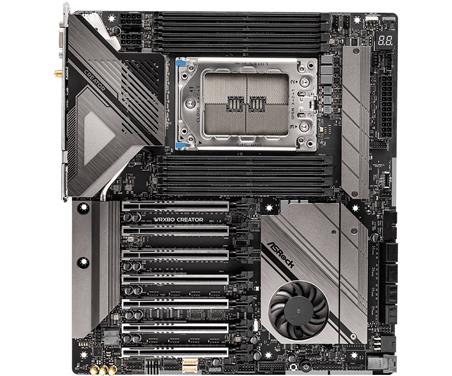

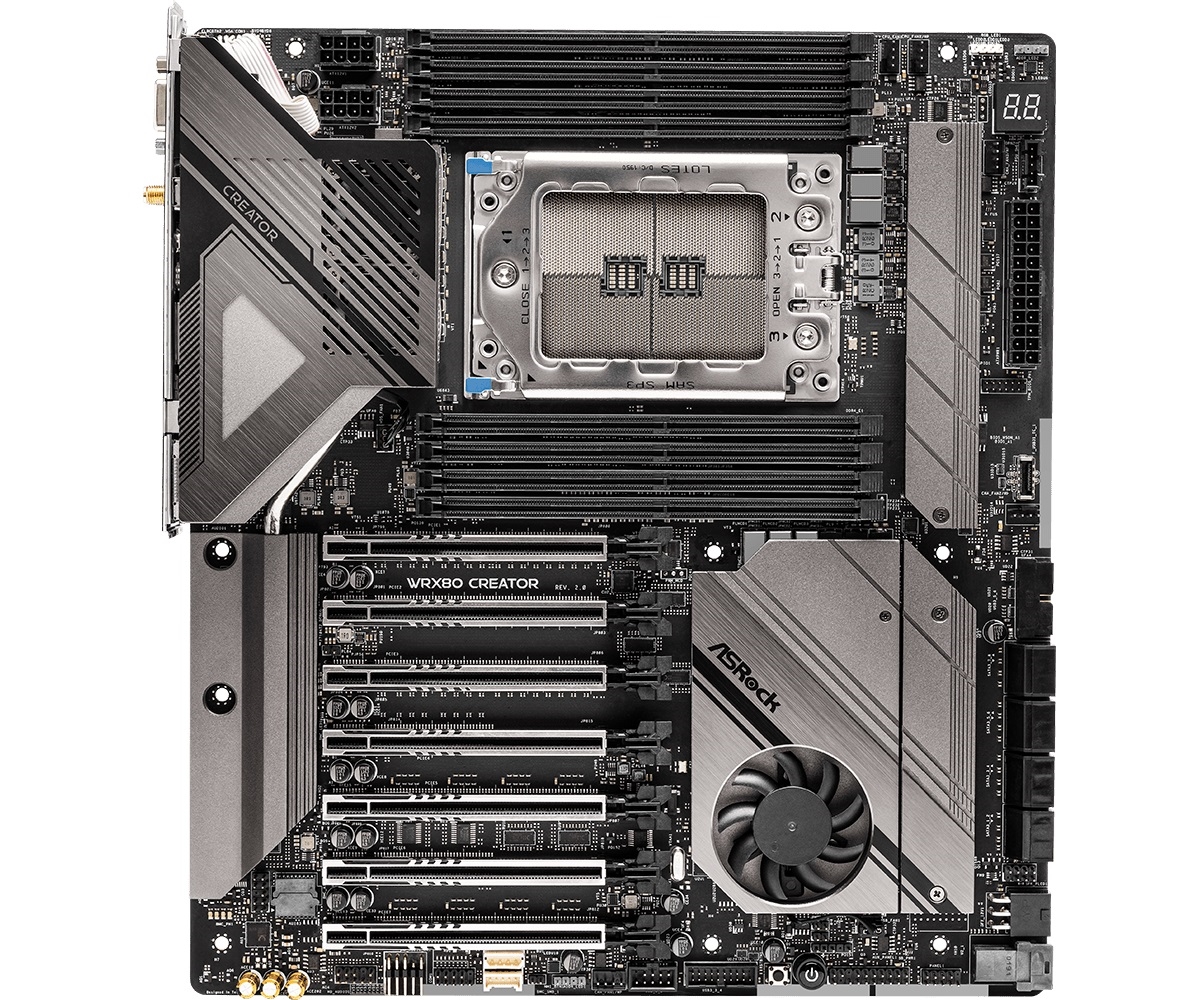

Main Features

• Supports AMD Ryzen™ Threadripper™ PRO 3000WX/5000WX Series Processors
• 8 Power Phase Design, 105A SPS
• 14 Layer Server-Grade Low-Loss PCB
• Supports DDR4 4533+(OC)
• 7 PCIe 4.0 x16
• 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4),
• 1 Hyper M.2 (PCIe Gen4 x4 & SATA3),
• 1 U.2 (PCIe Gen3 x4)
• 2 Thunderbolt™ 4 Type-C
• 5 USB 3.2 Gen2 (1 Front Type-C, 4 Rear)
• 6 USB 3.2 Gen1 (4 Front, 2 Rear)
• 7.1 CH HD Audio (Realtek ALC4050H+ALC1220),
• Nahimic Audio
• Dual Marvell (Aquantia) 10Gbe LAN,
• 1 Dedicated IPMI LAN
• Intel^®802.11ax (WiFi 6E) + Bluetooth 5.3

Marketing Information

Optimized VRM Design | SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

7W/mK MOSFET Thermal Pads

This thermal pads are much more effective than normal pads. With a 7 watt/mK thermal conductivity it is able to effectively dissipate heat from MOSFET

14 Layer PCB

The 14 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

Optimized VRM Design | Composite VRM Heatsink

It is equipped with a composite VRM heatsink combining dual fans, aluminum fin array and heat pipe for maximum heat dissipation.

Server-Grade Low-Loss PCB

The server grade PCB prevents PCB bending and improves signal integrity, giving higher PCIe 4.0 and memory performance as well as system stability, giving a reliable and long-lasting system without any compromise.

Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

PCIe Gen4 with Surface Mount Technology

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 4.0 standard.

5 x PCIe Gen4 x16

With AMD Ryzen™ Threadripper™ PRO processors, ASRock WRX80 Creator supports 5 full speed PCIe gen4 x16 slots, deliver all the performance of PCIe 4.0 to your GPU and add-on cards. Fullfill all the professional design, deep learning, simulation and rendering applications.

Thunderbolt Technology | Thunderbolt™ 4/USB4 Type-C

Thunderbolt™ 4/USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.

Fast Charging Technology

Enjoy the superfast charging rate, up to 9V@3A 27W with the next generation PD 3.0!

Nahimic Audio | Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

?Static Noise Suppression

?Echo Cancellation

?Lateral Sound Cancellation

?Voice Stabilizer

Ultimate Gaming Experience

?Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion
