Experience higher efficiency with lower energy cost
Prevent critical data loss by staying powered during a blackout with up to 1.80 kW load capacity
Up to 11 minute runtime on full load to preserve critical data from power shortage interruptions
1.92 kVA load capacity - work without any interruption during power outages
Marketing Information

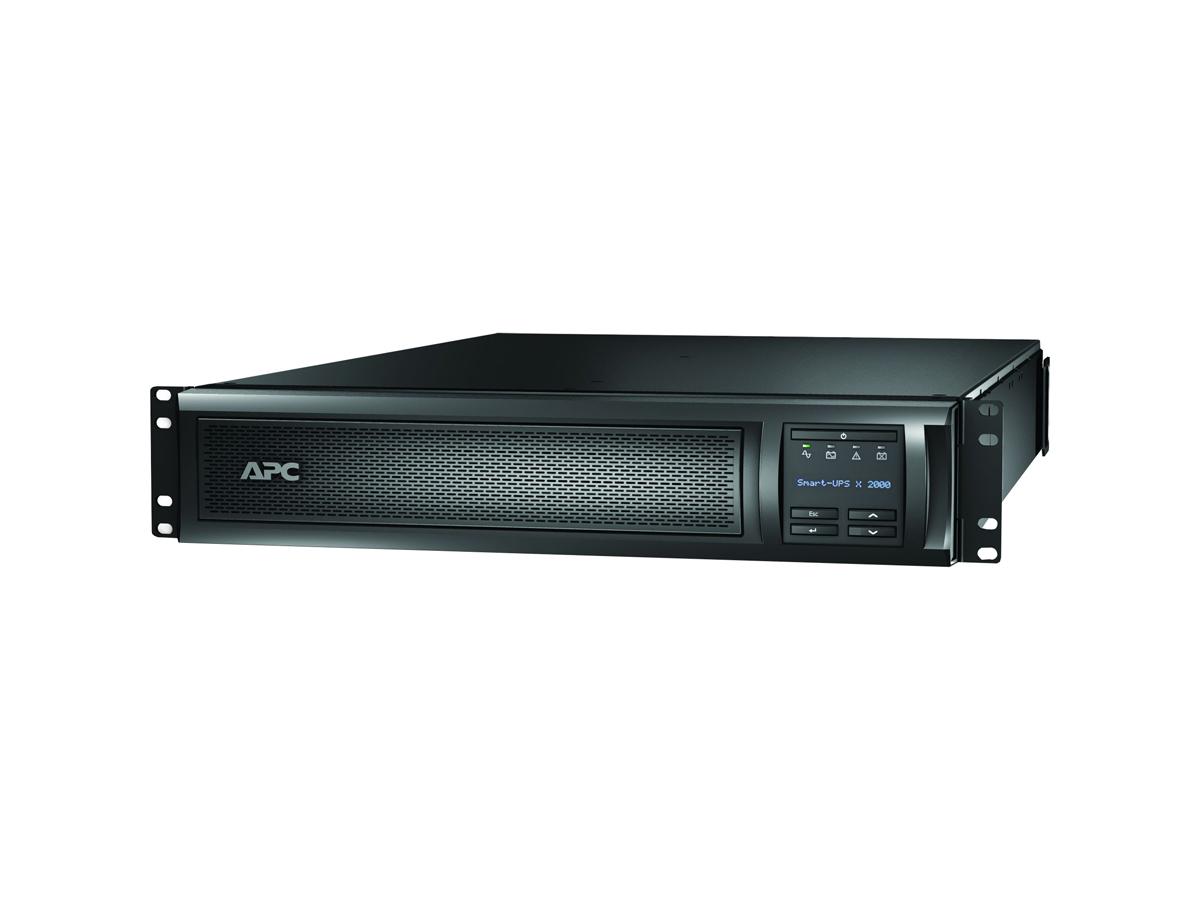

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1920VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature in a data center or network closet. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
1 x NEMA L5-20R<br>3 x NEMA 5-15R<br>3 x NEMA 5-20R
Number of Battery & Surge Outlets
7
Cord Length
8 ft (2.44 m)
Power Description
Load Capacity (VA)
1.92 kVA
Load Capacity (Watt)
1.80 kW
Input Voltage
120 V
Output Voltage
120 V AC
Waveform Type
Sine Wave
Surge Energy Rating
540 J
Interfaces/Ports
Serial Port
Yes
USB
Yes
Network (RJ-45)
Yes
Battery Information
Battery Characteristics
Maintenance-free, Sealed, Spill-proof
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
11 Minute
Backup/Run Time (Half Load)
28 Minute
Hot Swappable
Yes
Typical Battery Recharge Time
3 Hour
Physical Characteristics
Product Color
Black
Height
3.35" (85 mm)
Width
17.01" (432 mm)
Depth
26.26" (667 mm)
Rack Height
2U
Form Factor
Rack-mountable
Weight (Approximate)
84.77 lb (38451.03 g)
Miscellaneous
Package Contents
Smart-UPS X 1920 VA Tower/Rack Mountable CD with softwareDocumentation CDInstallation guideNetwork management cardRack mounting bracketsRack mounting hardwareRack mounting support railsSmart UPS signalling RS-232 cableUSB cable
Country of Origin
Philippines
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)<br>Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
Additional Warranty Information
3 years repair or replace (excluding battery) and 2 years for battery
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SMX2000RMLV2UNC
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Series
X
Product Model
SMX2000RMLV2UNC
Product Name
Smart-UPS X 1920 VA Tower/Rack Mountable
Product Type
Line-interactive UPS
Technical Information
Plug/Connector Type
NEMA 5-20P
Receptacle Type
NEMA 5-20P
Receptacle Detail
1 x NEMA L5-20R<br>3 x NEMA 5-15R<br>3 x NEMA 5-20R
Number of Battery & Surge Outlets
7
Cord Length
8 ft (2.44 m)
Power Description
Load Capacity (VA)
1.92 kVA
Load Capacity (Watt)
1.80 kW
Input Voltage
120 V
Output Voltage
120 V AC
Waveform Type
Sine Wave
Surge Energy Rating
540 J
Interfaces/Ports
Serial Port
Yes
USB
Yes
Network (RJ-45)
Yes
Battery Information
Battery Characteristics
Maintenance-free, Sealed, Spill-proof
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
11 Minute
Backup/Run Time (Half Load)
28 Minute
Hot Swappable
Yes
Typical Battery Recharge Time
3 Hour
Physical Characteristics
Product Color
Black
Height
3.35" (85 mm)
Width
17.01" (432 mm)
Depth
26.26" (667 mm)
Rack Height
2U
Form Factor
Rack-mountable
Weight (Approximate)
84.77 lb (38451.03 g)
Miscellaneous
Package Contents
Smart-UPS X 1920 VA Tower/Rack Mountable CD with softwareDocumentation CDInstallation guideNetwork management cardRack mounting bracketsRack mounting hardwareRack mounting support railsSmart UPS signalling RS-232 cableUSB cable
Country of Origin
Philippines
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)<br>Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
Additional Warranty Information
3 years repair or replace (excluding battery) and 2 years for battery
