PDU provides power control as remote controlled relay & load monitoring
With monitored PDU, you can remotely monitor single-or three-phase voltage easily
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
PX3-5463R
Brand Name
Raritan
Product Series
PX3
Product Model
PX3-5463R
Product Name

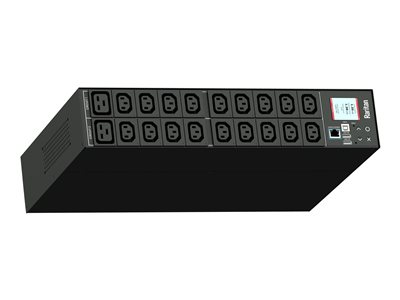

PX3-5463R 20-Outlets PDU
Product Type
PDU
Technical Information
PDU Type
Monitored
Phase
Single Phase
Plug/Connector Type
NEMA L6-30P (2P3W)
Receptacle Type
IEC 60320 C13<br>IEC 60320 C19
Receptacle Detail
18 x IEC 60320 C13<br>2 x IEC 60320 C19
Protection Type
Overload Protection<br>Overcurrent Protection<br>Double Pole
Power Description
Input Voltage
230 V AC
Output Voltage
208 V AC
Power Rating (VA)
5 kVA
Input Current
30 A
Management
Management
HTML JSON-RPC SSH Telnet MODBUS/TCP SNMPv3 TFTP DHCP/PXE SSH(CLI)
Remote Outlet Switching
Yes
Interfaces/Ports
Network (RJ-45)
Yes
Physical Characteristics
Mounting Orientation
Horizontal
Mount Type
Rack-mountable
Rack Height
2U
Height
3.50" (88.90 mm)
Width
17.30" (439.42 mm)
Depth
11.50" (292.10 mm)
Weight (Approximate)
14.55 lb (6600 g)
Miscellaneous
Country of Origin
Taiwan
Warranty
Limited Warranty
2 Year
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
PX3-5463R
Brand Name
Raritan
Product Series
PX3
Product Model
PX3-5463R
Product Name
PX3-5463R 20-Outlets PDU
Product Type
PDU
Technical Information
PDU Type
Monitored
Phase
Single Phase
Plug/Connector Type
NEMA L6-30P (2P3W)
Receptacle Type
IEC 60320 C13<br>IEC 60320 C19
Receptacle Detail
18 x IEC 60320 C13<br>2 x IEC 60320 C19
Protection Type
Overload Protection<br>Overcurrent Protection<br>Double Pole
Power Description
Input Voltage
230 V AC
Output Voltage
208 V AC
Power Rating (VA)
5 kVA
Input Current
30 A
Management
Management
HTML JSON-RPC SSH Telnet MODBUS/TCP SNMPv3 TFTP DHCP/PXE SSH(CLI)
Remote Outlet Switching
Yes
Interfaces/Ports
Network (RJ-45)
Yes
Physical Characteristics
Mounting Orientation
Horizontal
Mount Type
Rack-mountable
Rack Height
2U
Height
3.50" (88.90 mm)
Width
17.30" (439.42 mm)
Depth
11.50" (292.10 mm)
Weight (Approximate)
14.55 lb (6600 g)
Miscellaneous
Country of Origin
Taiwan
Warranty
Limited Warranty
2 Year
Defective Exchange Period
30 Days
Defective Exchange Period
30 Days
