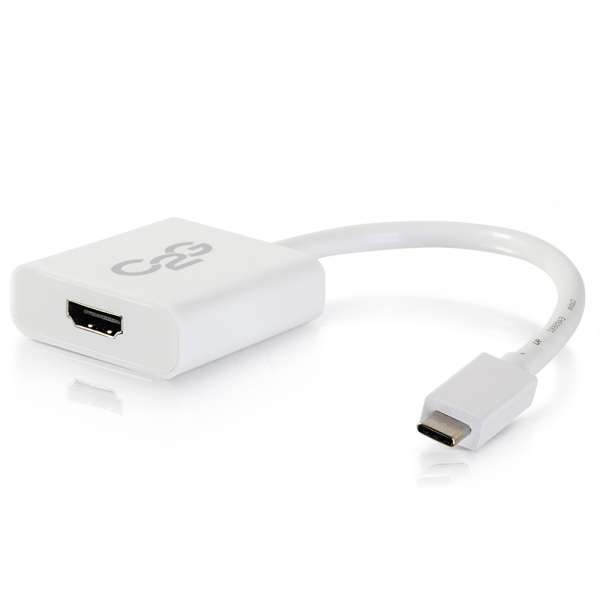

Cables to Go USB 3.1 USB-C TO HDMI AUDIO/VIDEO ADAPTER - WHITE

This USB-C to HDMI adapter is an ideal solution for connecting a device with a USB 3.1 Type C connector to an HDTV, projector, or other display with an HDMI port. This adapter utilizes the audio/video support built in to USB Type-C ports to feed an audio/video signal to a HDMI HDTV or projector. This adapter supports up to a 4k (3840x2160 at 30Hz) resolution, allowing it to deliver a high quality video image to the connected display. The compact design of this adapter make it a perfect pair for BYOD (Bring Your Own Device) applications in education or corporate environments.

Features:

• Supports up to a 4k resolution
• Reversible, symmetrical USB-C connector
• Compact, lightweight design
• Plug and Play—no driver required

Video Specifications

• Maximum resolution: 4k (3840x2160 at 30Hz)
• Features supported: 3D video, HDCP 2.0

Electrical specifications

• Voltage rating: 30V
• Insulation resistance: 10MΩ/km

Physical Characteristics

• Operation temperature: 0° - 50°C
• Storage temerature: -25°C - 70°C
Conductor 1 (2 conductors, 5 pairs)
• Size: 32AWG (7/0.08 tinned copper)
• Insulation: FM-PE
• Shield: Aluminum foil - 100% coverage
• Drain wire: 32AWG (7/0.08 tinned copper)
Conductor 2 (4 conductors)
• Size: 32AWG (7/0.08 tinned copper)
• Insulation: HD-PE
Conductor 3 (1 conductors)
• Size: 28AWG (7/0.12 tinned copper)
• Insulation: HD-PE
Overall Cable
• Jacket (standard, non-rated)
• Foil shield: Aluminum foil - 100% coverage
• Braided shield: 16/7/0.12
• Drain wire: 32AWG (7/0.08 bare copper)
• Outer diameter: 5.2 ± 0.2mm

Main Features

• Enjoy the feast of movies with both video and sound device support and speedy data transfer
• With USB port, enjoy the plug-and-play facility
• Fully compatible with HDTV
