Overview

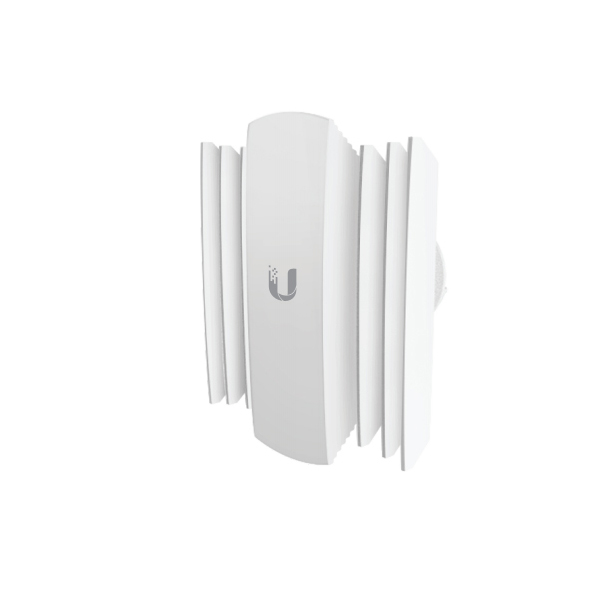

Ubiquiti Networks launches a new generation of airMAX ac beamwidth isolation antennas, the PrismAP.

Modular Design

With flexible sectorization for optional antenna beamwidths, the PrismAP antennas are interchangeable and improve beam-shaping for specific deployment and environment needs. The PrismStation 5AC and IsoStations use horn antenna sectors designed for increased co-location performance without sacrificing gain.

Scalability

Symmetrical horn antennas (30o and 45o versions, models PrismAP-5-30 and PrismAP-5-45, respectively) offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced

Co-Location Asymmetrical horn antennas (60o and 90o versions, models PrismAP-5-60 and PrismAP-5-90, respectively) have naturally attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Modular Design
Interchangeable Antennas

The PrismAP antennas come with precise radiation angles for specific beam shaping, ranging from 30° to 90°, making them suitable for a wider range of installations.

• Designed for increased co-location performance
• Available in 30o , 45o , 60o , and 90o designs
• Designed for use with PS-5AC, IS-5AC, and IS-M5
• Single button release for ease of changing antennas
• Newly designed horn for improved beam shaping
