ASUS Prime B650-PLUS AMD B650(Ryzen 7000) ATX Motherboard DDR5(Open Box)

ASUS Prime B650-PLUS AMD B650(Ryzen 7000) ATX motherboard(DDR5, PCIe 5.0 M.2 support, 2.5Gb Ethernet, DisplayPort, HDMI®, USB 3.2 Gen 2 Type-C®, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, USB4® support and Arua Sync)(Open Box)

ASUS

Part #: PRIME B650-PLUS

Item Code: MBASU00451OB

ASUS Prime B650-PLUS AMD B650(Ryzen 7000) ATX motherboard(DDR5, PCIe 5.0 M.2 support, 2.5Gb Ethernet, DisplayPort, HDMI®, USB 3.2 Gen 2 Type-C®, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, USB4® support and Arua Sync)(Open Box)

Name: ASUS Prime B650-PLUS AMD B650(Ryzen 7000) ATX Motherboard DDR5(Open Box)
Brand: ASUS
SKU: MBASU00451OB
Price: 194.64000152588 CAD
Availability: InStock

Open Box

15-day Low Price Guarantee

Was: $261.24

$194.64

SAVE $66.60

Get it NEW

$204.88

Sale ends in

$16.22/mo. in 12 payments (not incl. shipping, taxes) on eligible credit cards. Terms apply. Learn More
Online only.

Qty: -+

Add to Wish List

Add Tech Care Replace

2 Year
$ 26.63 3 Year
$ 30.73

Availability

DELIVERY

SOLD OUT ONLINE

STORE PICKUP

Check Other Stores

Change Preferred Store

Select your preferred location

Ontario - (Canada Computers)

Quebec - (Ordinateurs Canada)

Nova Scotia - (Canada Computers)

Halifax

British Columbia - (Canada Computers)

Overview Specifications Warranty & Returns Review

Overview

Specifications

Brand	Asus
Model	90MB1BS0-M0AAY0
Socket	AM5
Chipset	B650
Motherboard Form Factor	ATX
Platform	AMD
Memory Slots	4
Maximum Memory Supported	4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Memory Channel Supported	Dual Channel Memory Architecture
Graphics	1 x DisplayPort 1 x HDMI® port

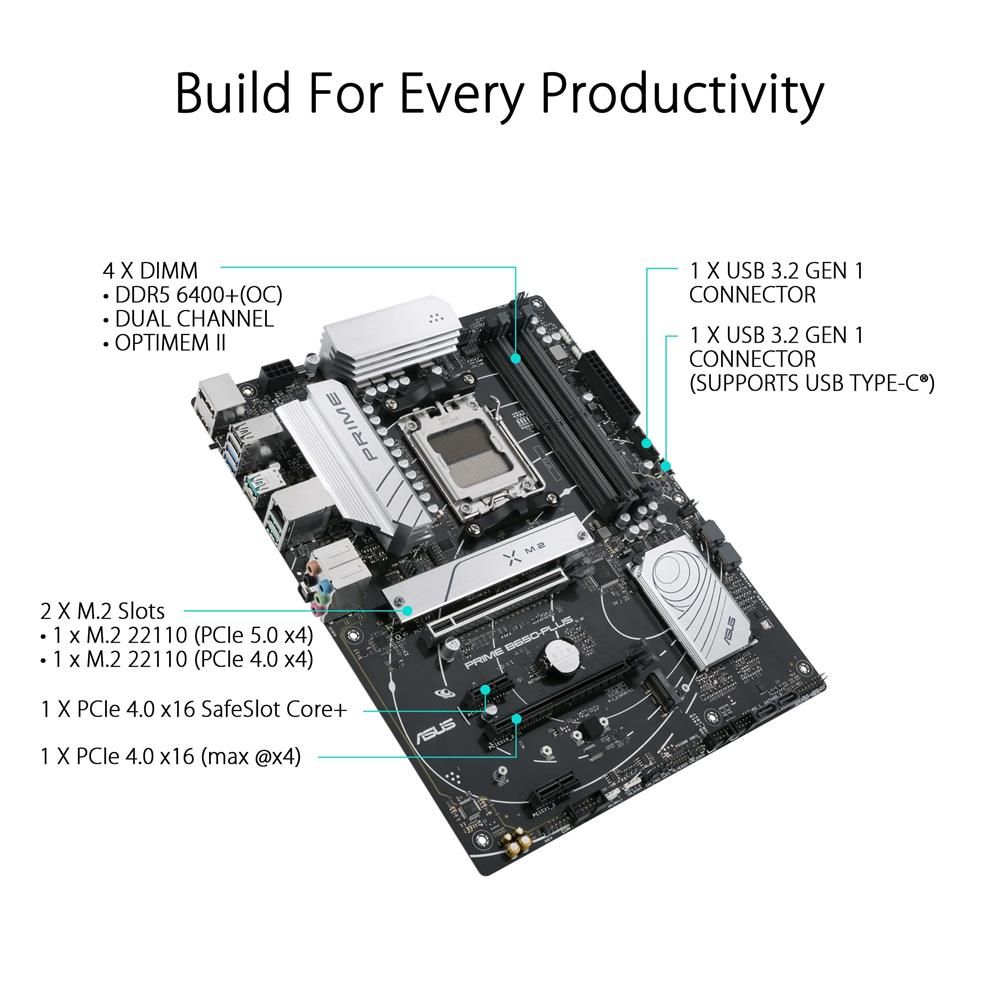

Expansion Slots	AMD Ryzen™ 7000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD B650 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 slots
Storage	AMD Ryzen™ 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset: 4 x SATA 6Gb/s ports
Onboard LAN	1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth®	Vertical M.2 slot only (Key E, PCIe)*
USB	Rear USB (Total 8 ports): 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports): 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Onboard Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC

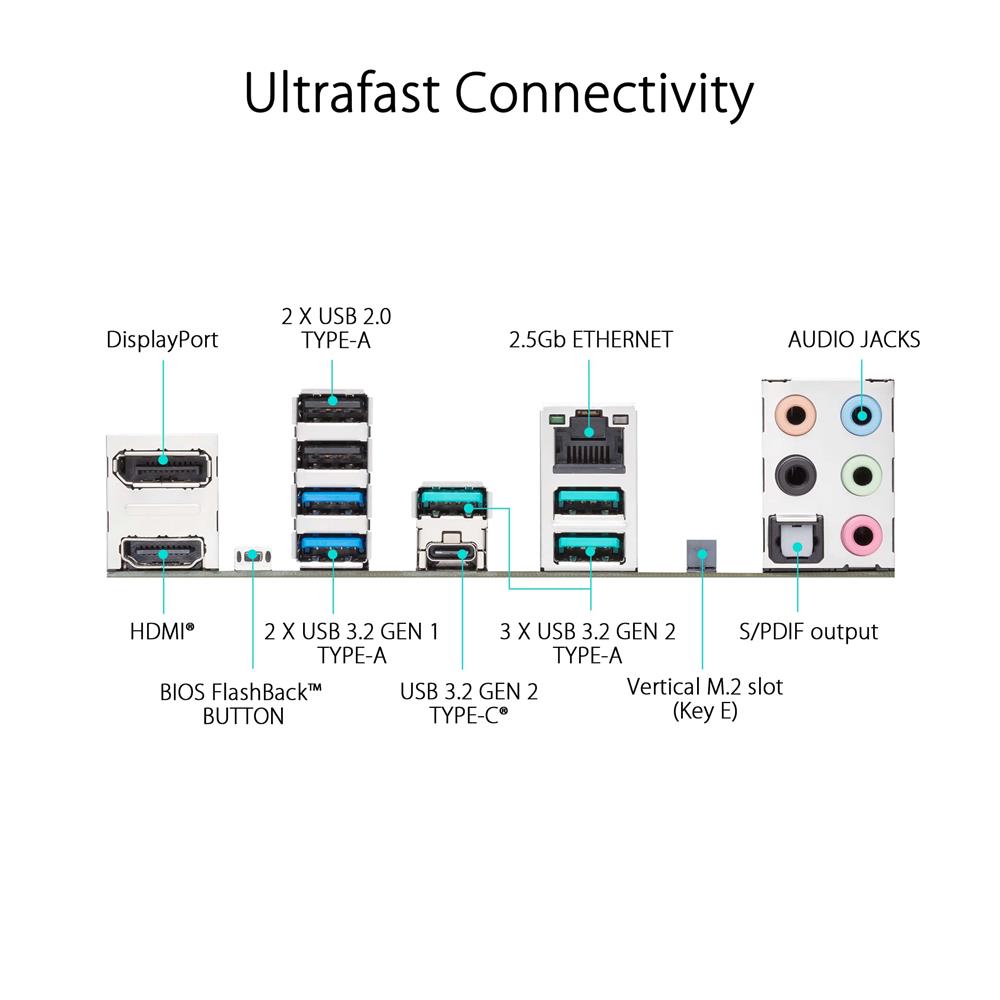

Back Panel I/O Ports	4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button

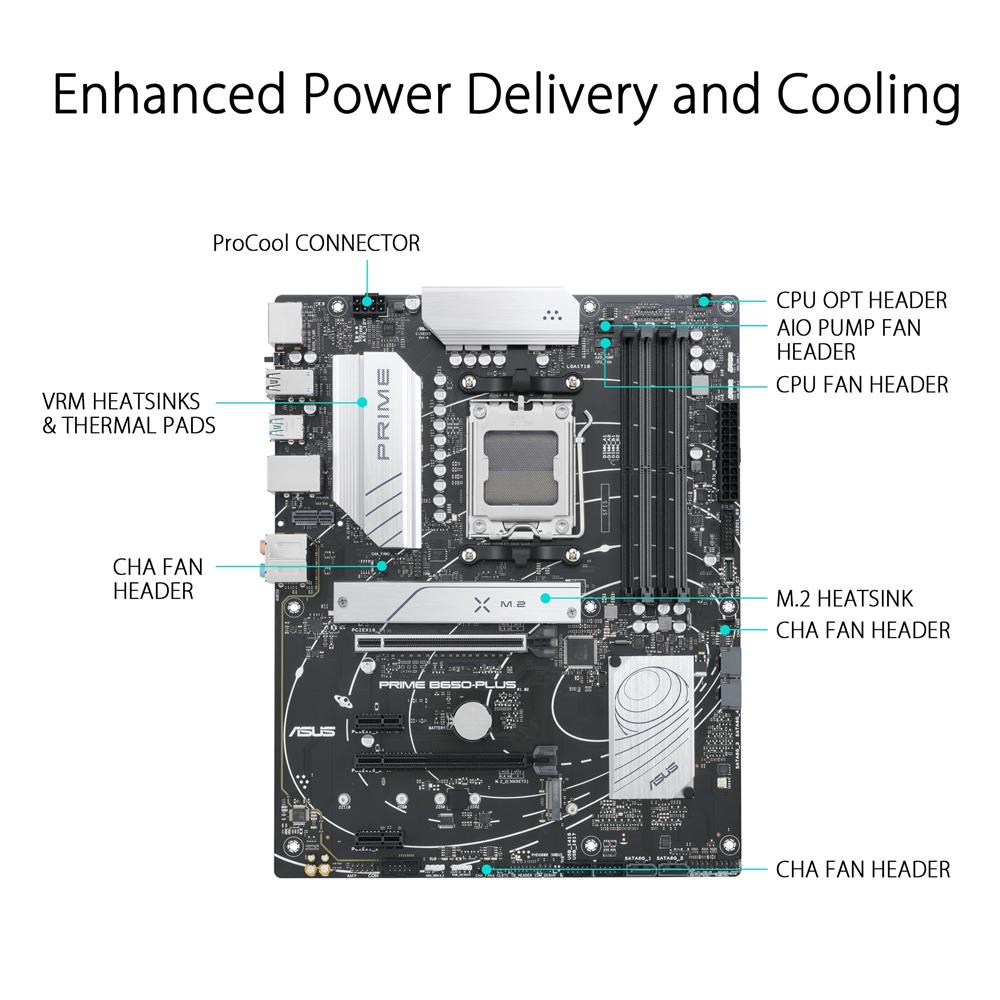

Internal I/O Connectors	Fan and Cooling related: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related: 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous: 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header
Special Features	ASUS 5X PROTECTION III ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY Aura Sync
Software Features	ASUS Exclusive Software: Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS: ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

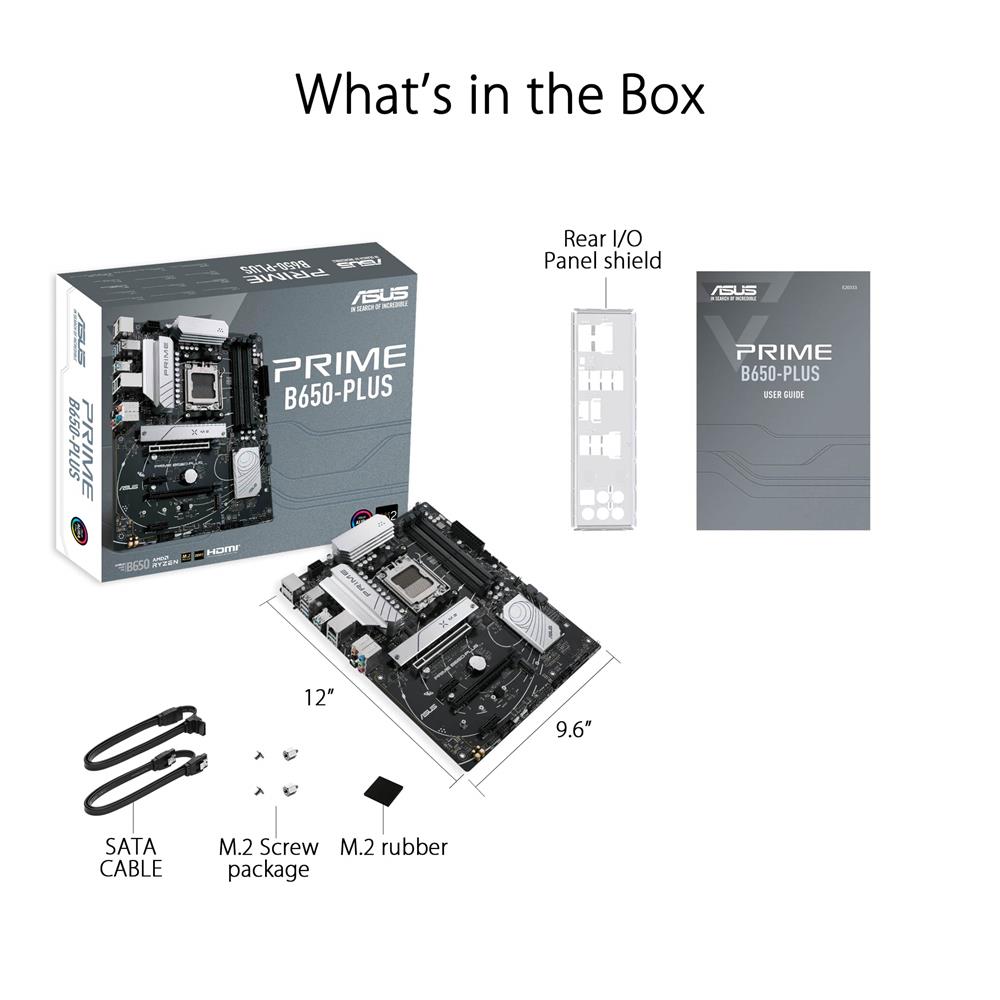

Accessories	2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD 1 x User guide
Operating System	Windows® 11, Windows® 10 64-bit

Warranty & Returns

Review

Customer Reviews

out of 5

5 stars

4 stars

3 stars

2 stars

1 stars

Write a Review

Return Period	15 Days
Defective Exchange	30 Days
Manufacturer Warranty	3 Years
